Upgrade Prerequisites

Pre-Upgrade Checklist

Before starting an upgrade of Wallaroo, the following steps should be performed to provide a smooth transition from the previous version of Wallaroo to the new one.

Create Support Bundle
Notify Users of Downtime
Backup Wallaroo

Create Support Bundle

A support bundle creates a collection of logs, configurations, and other information for Wallaroo support staff. This should be generated before the upgrade procedure starts to preserve a set of current settings and information useful to track any potential issues during the upgrade process.

Support bundles are generated from one of the two methods.

At any time, the administration console can create troubleshooting bundles for Wallaroo technical support to assess product health and help with problems. Support bundles contain logs and configuration files which can be examined before downloading and transmitting to Wallaroo. The console also has a configurable redaction mechanism in cases where sensitive information such as passwords, tokens, or PII (Personally Identifiable Information) need to be removed from logs in the bundle.

Create Support Bundles via the Wallaroo Administrator Dashboard

This process is for kots based installations of Wallaroo.

This assumes that kubectl and kots have been installed in a terminal with administrative access to the Kubernetes cluster hosting the Wallaroo installation.

Launch the Kots Administrative Dashboard with kubectl kots admin-console --namespace $WALLAROO_NAMESPACE, replacing $WALLAROO_NAMESPACE with the namespace the Wallaroo instance is installed in. For example: kubectl kots admin-console --namespace wallaroo.
Log into the administration console with the Administrative Dashboard password set during the installation process.

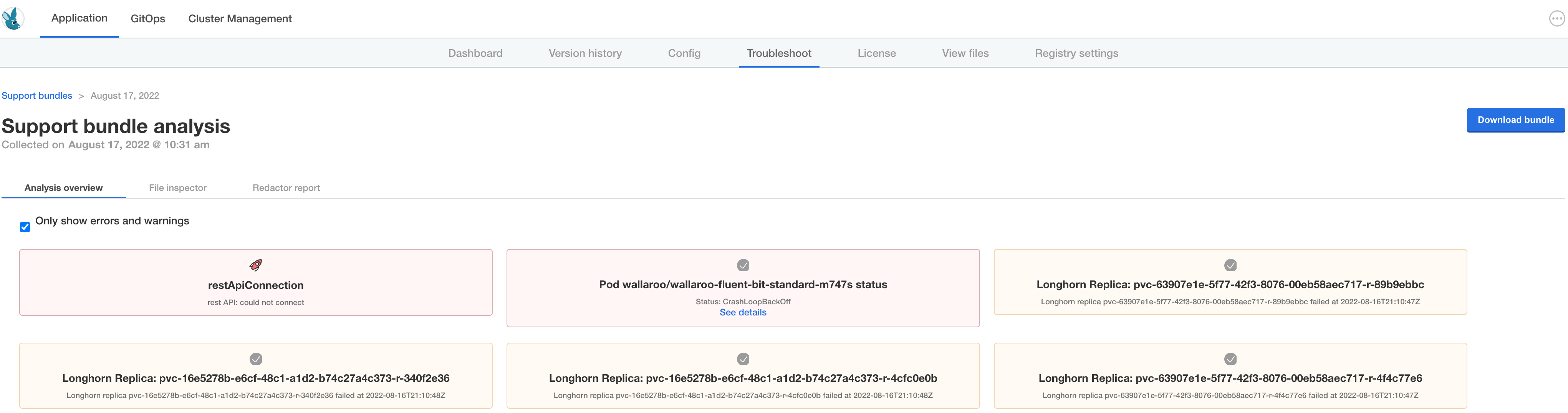

Select the Troubleshoot tab.
Select Analyze Wallaroo.
Select Download bundle to save the bundle file as a compressed archive. Depending on your browser settings the file download location can be specified.
Send the file to Wallaroo technical support.

At any time, any existing bundle can be examined and downloaded from the Troubleshoot tab.

Create Support Bundles via the Command Line

To generate a support bundle via the command line for either kots or helm based installations of Wallaroo, the following applications are used.

kubectl
kubectl plugins:
- krew: Install Krew
- krew support-bundle: Install with kubectl krew install support-bundle.

This creates a collection of log files, configuration files and other details into a .tar.gz file in the same directory as the command is run from in the format support-bundle-YYYY-MM-DDTHH-MM-SS.tar.gz. This file is submitted to the Wallaroo support team for review.

kubectl support-bundle --load-cluster-specs  --interactive=false

Notify Users of Downtime

The following is a short list of users to notify before the Wallaroo Ops downtime. ALL users that interact with Wallaroo Ops should be informed; the following list is provided to help DevOps engineers to know what stakeholders to notify.

Stakeholder	Description	What Users will Experience

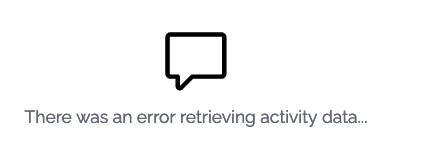

Wallaroo Dashboard Users	Users that interact via the Wallaroo Dashboard.	If users are active in the dashboard: If a user attempts to go to the dashboard in their browser:
API users	These users interact with Wallaroo via the Wallaroo MLOps API or related API services.	MLOps API and other API services to the Wallaroo Ops instance will not be available during the upgrade and any requests will return a 503 (service unavailable) with the message “Wallaroo upgrade in progress.”
External SDK users	Users who perform actions via the Wallaroo SDK that do not use the Wallaroo JupyterHub service.	Wallaroo SDK connections will not be available during the upgrade and any attempts to use the SDK with return an error.

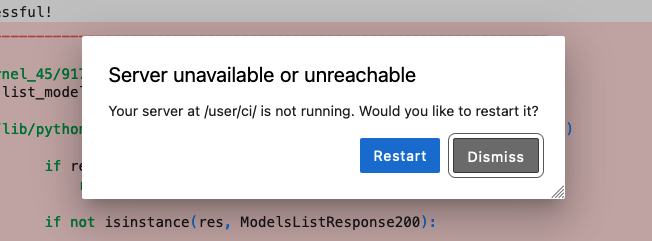

Wallaroo JupyterHub users	Users who use the Wallaroo JupyterHub Service to run JupyterNotebooks with the Wallaroo Ops instance.	If users are in JupyterHub at the time of the upgrade: If users attempt to go to JupyterHub during the upgrade:
Deployed pipeline	Users who perform inferences through deployed pipelines.	During the upgrade process, deployed pipelines are undeployed for the upgrade process. Once the upgrade process is complete, any previously deployed pipelines are automatically redeployed. Any inference requests to deployed pipelines will return a 503 (service unavailable) with the message “Wallaroo upgrade in progress.”
Edge and Multi-cloud Deployment Users	Users and services that perform inference requests and other services via models deployed to multicloud and edge locations.	Edge and multicloud deployments of Wallaroo are not interrupted. While an upgrade is in progress, no logs can be received by the Wallaroo Ops instance. Once connection is restored, edge locations upload their inference logs.
Wallaroo Orchestration Users	Scheduled Wallaroo orchestrations.	Wallaroo orchestrations scheduled tasks will be interrupted during the upgrade process. Scheduled task runs will be missed while the upgrade is in progress and will run at their next scheduled time after the upgrade completes.

Backup Wallaroo

Before starting the upgrade procedure, backup the Wallaroo Ops instance. The following procedure summary is based on the provided Wallaroo Backup and Restore Guides.

Wallaroo Backup Procedure

Before starting the backup, force the Plateau service to complete writing logs so they can be captured by the backup. This assumes that Wallaroo was installed in the namespace wallaroo.
```
kubectl -n wallaroo scale --replicas=0 deploy/plateau
kubectl -n wallaroo scale --replicas=1 deploy/plateau
```
Set the $BACKUP_NAME. This must be all lowercase characters or numbers or -/. and must end in alphanumeric characters.
```
BACKUP_NAME={give it your own name}
```
Issue the following backup command. The --exclude-namespaces is used to exclude namespaces that are not required for the Wallaroo backup and restore. By default, these are the namespaces velero, default, kube-node-lease, kube-public, and kube-system.
This process will back up all namespaces that are not excluded, including deployed Wallaroo pipelines. Add any other namespaces that should not be part of the backup to the --exclude-namespaces option as per your organization’s requirements.
```
velero backup create $BACKUP_NAME --default-volumes-to-fs-backup --include-cluster-resources=true --exclude-namespaces velero,default,kube-node-lease,kube-public,kube-system
```

To view the status of the backup, velero backup describe --details $BACKUP_NAME. Once the Completed field shows a date and time, the backup is complete.

The following shows an InProgress backup:

velero backup describe --details $BACKUP_NAME

Name:         sample-doctest-backup-20240502
Namespace:    velero
Labels:       velero.io/storage-location=default
Annotations:  velero.io/resource-timeout=10m0s
              velero.io/source-cluster-k8s-gitversion=v1.28.7-gke.1026000
              velero.io/source-cluster-k8s-major-version=1
              velero.io/source-cluster-k8s-minor-version=28

Phase:  InProgress


Namespaces:
  Included:  *
  Excluded:  velero, default, kube-node-lease, kube-public, kube-system

Resources:
  Included:        *
  Excluded:        <none>
  Cluster-scoped:  included

Label selector:  <none>

Or label selector:  <none>

Storage Location:  default

Velero-Native Snapshot PVs:  auto
Snapshot Move Data:          false
Data Mover:                  velero

TTL:  720h0m0s

CSISnapshotTimeout:    10m0s
ItemOperationTimeout:  4h0m0s

Hooks:  <none>

Backup Format Version:  1.1.0

Started:    2024-05-14 16:26:43 -0600 MDT
Completed:  <n/a>

Expiration:  2024-06-13 16:26:43 -0600 MDT

Estimated total items to be backed up:  1073
Items backed up so far:                 28

Resource List:  <backup resource list not found>

Backup Volumes:
  Velero-Native Snapshots: <none included>

  CSI Snapshots: <none included or not detectable>

  Pod Volume Backups - kopia:
    Completed:
      gmp-system/alertmanager-0: alertmanager-config, alertmanager-data
      gmp-system/collector-cdsm4: config-out, storage
      gmp-system/collector-fslhc: config-out, storage
      gmp-system/collector-p6f85: config-out, storage
      gmp-system/collector-q4djj: config-out, storage
      gmp-system/rule-evaluator-7874c6f478-672vs: config-out
      wallaroo/hub-65c45d4c7-nb9lp: pvc
      wallaroo/kotsadm-b4f68468d-dzj5c: backup, tmp
      wallaroo/kotsadm-minio-0: kotsadm-minio, minio-cert-dir, minio-config-dir
      wallaroo/kotsadm-rqlite-0: kotsadm-rqlite, tmp
    In Progress:
      wallaroo/minio-cf97d78cb-pv82x: export

The following shows a Completed backup.

velero backup describe --details $BACKUP_NAME

Name:         sample-doctest-backup-20240502
Namespace:    velero
Labels:       velero.io/storage-location=default
Annotations:  velero.io/resource-timeout=10m0s
              velero.io/source-cluster-k8s-gitversion=v1.28.7-gke.1026000
              velero.io/source-cluster-k8s-major-version=1
              velero.io/source-cluster-k8s-minor-version=28

Phase:  Completed


Warnings:
  Velero:     <none>
  Cluster:    <none>
  Namespaces:
    wallaroo:   resource: /pods name: /kotsadm-b4f68468d-dzj5c message: /volume migrations is declared in pod wallaroo/kotsadm-b4f68468d-dzj5c but not mounted by any container, skipping

Namespaces:
  Included:  *
  Excluded:  velero, default, kube-node-lease, kube-public, kube-system

Resources:
  Included:        *
  Excluded:        <none>
  Cluster-scoped:  included

Label selector:  <none>

Or label selector:  <none>

Storage Location:  default

Velero-Native Snapshot PVs:  auto
Snapshot Move Data:          false
Data Mover:                  velero

TTL:  720h0m0s

CSISnapshotTimeout:    10m0s
ItemOperationTimeout:  4h0m0s

Hooks:  <none>

Backup Format Version:  1.1.0

Started:    2024-05-14 16:26:43 -0600 MDT
Completed:  2024-05-14 16:32:19 -0600 MDT

Expiration:  2024-06-13 16:26:43 -0600 MDT

Total items to be backed up:  719
Items backed up:              719

Resource List:
  admissionregistration.k8s.io/v1/MutatingWebhookConfiguration:
    - gmp-operator.gmp-system.monitoring.googleapis.com
    - neg-annotation.config.common-webhooks.networking.gke.io
    - pod-ready.config.common-webhooks.networking.gke.io
    - warden-mutating.config.common-webhooks.networking.gke.io

  ...Other backed up resources

  warden.gke.io/v1/Audit:
    - autogke-default-linux-capabilities
    - autogke-disallow-hostnamespaces
    - autogke-disallow-privilege
    - autogke-no-host-port
    - autogke-no-write-mode-hostpath
    - autogke-node-affinity-selector-limitation
    - autogke-pod-affinity-limitation
    - autopilot-admission-webhook-config-limitation
    - autopilot-capacity-request-limitation
    - autopilot-external-ip-limitation
    - autopilot-no-ephemeral-containers
    - autopilot-persistent-volume-limitation
    - autopilot-volume-type-limitation

Backup Volumes:
  Velero-Native Snapshots: <none included>

  CSI Snapshots: <none included>

  Pod Volume Backups - kopia:
    Completed:
      gmp-system/alertmanager-0: alertmanager-config, alertmanager-data
      gmp-system/collector-cdsm4: config-out, storage
      gmp-system/collector-fslhc: config-out, storage
      gmp-system/collector-p6f85: config-out, storage
      gmp-system/collector-q4djj: config-out, storage
      gmp-system/rule-evaluator-7874c6f478-672vs: config-out
      wallaroo/hub-65c45d4c7-nb9lp: pvc
      wallaroo/kotsadm-b4f68468d-dzj5c: backup, tmp
      wallaroo/kotsadm-minio-0: kotsadm-minio, minio-cert-dir, minio-config-dir
      wallaroo/kotsadm-rqlite-0: kotsadm-rqlite, tmp
      wallaroo/minio-cf97d78cb-pv82x: export
      wallaroo/nats-0: nats-js, pid
      wallaroo/plateau-7dfbd89655-9xz6v: plateau-storage
      wallaroo/postgres-74d6948c48-mjmb5: postgres-storage
      wallaroo/prometheus-deployment-666d968bfd-cxp46: alert-config-volume, metrics-storage-volume
      wallaroo/wallsvc-0: socket-volume, spire-data

HooksAttempted:  1
HooksFailed:     0
