Wallaroo Air-Gapped Installation Guide


Table of Contents

The following guide is for organizations with clusters that meet the Wallaroo OpenShift prerequisites in an “air-gapped” environment.

These instructions are applicable both to cloud based installations or on-premise installations.

This guides are targeted towards system administrators and data scientists who want to work with the easiest, fastest, and comprehensive method of running your own machine learning models.

Some knowledge of the following will be useful in working with this guide:

  • Working knowledge of OpenShift.
  • Working knowledge of Kubernetes, mainly kubectl and kots.

For more information, Contact Us for additional details.

Before starting, select which method to install Wallaroo.

  • helm: Primarily script and configuration file based install method.
  • kots: Primarily a GUI based installation process.

Wallaroo Image Storage

Wallaroo installation images are stored in the private image repository in the following format.

registry.wallaroo.ai:1234/wallaroo/conductor-wallsvc:2025.1.0-6290
------------------------ --------  ----------------  ----------
  \                        \           \                 \
Registry Host Name         namespace    repository        tag
  • Registry Host Name: The FQDN of the registry host. For example: registry.example.ai.
  • Namespace: The registry namespace where all Wallaroo images are stored under.
  • Repository: The specific image.
  • Tag: The version of the image.

Install Software Requirements

The following software or runtimes are required for Wallaroo 2025.1. Most are automatically available through the supported cloud providers.

Software or RuntimeDescriptionMinimum Supported VersionPreferred Version(s)
OpenShiftContainer Platform4.174.18
KubernetesCluster deployment management1.29 with Container Management set to containerd.1.31
kubectlKubernetes administrative console application1.311.31

OpenShift Cluster Preparation

The following steps are used to prepare the OpenShift managed Kubernetes cluster for the Wallaroo installation.

Wallaroo Storage Class

For the Wallaroo installation, it is recommended to create a new default storage class named wallaroo-standard. This can be a copy of any existing storage class set with the name wallaroo-standard. This storage class must have the following settings:

  • VolumeBindingMode=WaitForFirstConsumer
  • Named wallaroo-standard.

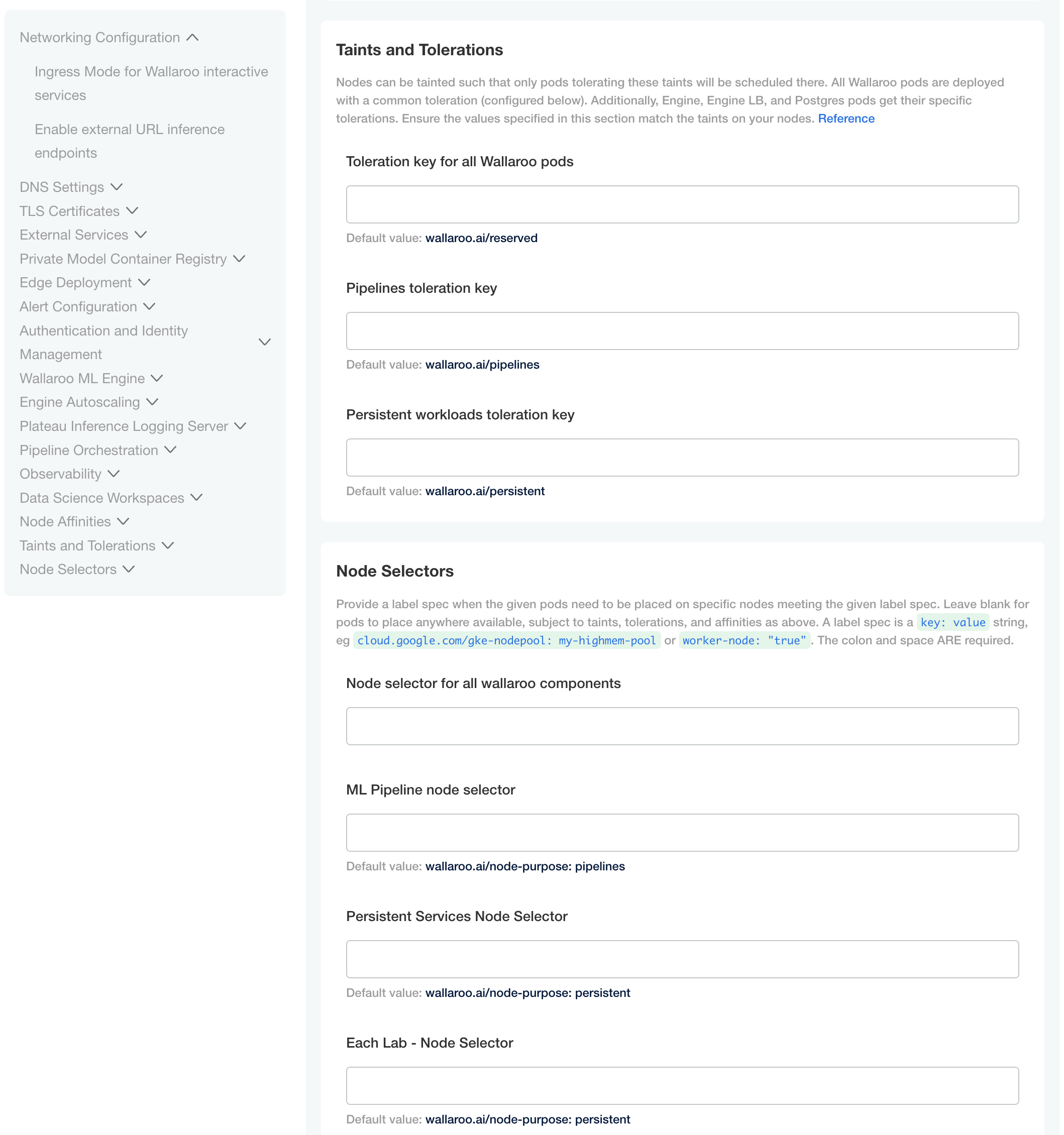

Taints and Labels Requirements

Nodepools created in Wallaroo require the following taints and labels.

For custom taints and labels, see the Custom Taints and Labels Guide.
NodepoolTaintsLabelsDescription
generalN/Awallaroo.ai/node-purpose: generalFor general Wallaroo services. No taints are applied to this nodepool to allow any process not assigned with a deployment label to run in this space.
persistentwallaroo.ai/persistent=true:NoSchedulewallaroo.ai/node-purpose: persistentFor Wallaroo services with a persistentVolume settings, including JupyterHub, Minio, etc.
pipelines-x86wallaroo.ai/pipelines=true:NoSchedulewallaroo.ai/node-purpose: pipelinesFor deploying pipelines for default x86 architectures. The taints and label must be applied to any nodepool used for model deployments.

The following commands are examples how to review and verify labels in nodes. Check with the host documentation as needed.

  1. List all the nodes with:

    kubectl get node

  2. To label a node, select which node to label and apply the label via the following example:

    kubectl label node node1 wallaroo.ai/node-purpose=general

  3. To apply a taint to a node, select the node and apply the taint via the following example:

    kubectl taint node node1 key1=value1:NoSchedule


Install Wallaroo

Select from the following methods to install Wallaroo:

  • helm
  • kots

Install Wallaroo via Helm

Air-Gapped Installation Preparation for Helm

Before starting an air-gapped installation of Wallaroo, complete the following preparation steps.

The general process follows these steps:

  • Pre Setup Checklist for Helm: The necessary installation files are available and values set for installation.
  • Wallaroo Image Retrieval and Installation Preparation for Helm: Retrieve the installation images from Wallaroo and store them in a private container registry available from the Target Cluster.

Pre Setup Checklist for Helm

The following checklist ensures that required items are ready before starting the process.

  • The installation environment meets the general Wallaroo Installation Prerequisites.
  • The Domain Name for the Wallaroo instance is registered in a private DNS accessible from the air-gapped installation.
  • TLS certificate and private key matching the Domain Name available for the Target Cluster. This can be registered to a private certificate service.
  • Access to private image registry that hosts the Wallaroo install images with the following permissions:
    • Read
    • Write
    • List
  • The following Bash scripts:
    • load-images.bash: Loads the Wallaroo install images into the private image registry and generates the image-values.yaml file. Available here: load-images.bash
    • install-nvidia-driver.bash (Optional): Installs Nvidia drivers for the Target Cluster. Available here: install-nvidia-driver.bash
  • Wallaroo Image Download Details: This is provided by a Wallaroo Support Representative and are stored as the following variables environmental variables for the installation scripts:
    • LICENSE_CHANNEL: The registry channel used based on the version of Wallaroo being installed, currently 2025-1.
    • VERSION: The Wallaroo version to be installed. For example: 2025.1.0-6290.
    • WALLAROO_LICENSE: The Wallaroo license identifier.
    • WALLAROO_LICENSE_USERNAME: The username associated with the Wallaroo license.
    • WALLAROO_LICENSE_PASSWORD: The password associated with the Wallaroo license.
  • The following environmental variables for connecting to the private model registry:
    • REGISTRY_HOST: The fully qualified domain name of the private image registry. For example: registry.wallaroo.ai.
    • REGISTRY_NAMESPACE: Namespace where the Wallaroo images are stored.
    • REGISTRY_USERNAME: Username for authentication to the registry.
    • REGISTRY_PASSWORD: Authentication credential for private registry. Often this is either a password or a token.
  • Administration Host Software Requirements: The administrative host that submits the installation commands to the target cluster requires the following software.
    • docker
    • curl
    • jq version 1.7.1
    • helm
    • kubectl version 1.31

Note that the convenience variables are used for helm based installations of Wallaroo.

Wallaroo Image Retrieval and Installation Preparation for Helm

For air-gapped installations, the Wallaroo installation images are downloaded and stored in a private registry through the following process.

The image load script below expects ECR root level access and add the prefix wallaroo/ prefix for all the Wallaroo images. Access to the ECR must include the following permissions:

  • Read
  • List
  • Write

From a terminal with access to the Kubernetes cluster hosting the Wallaroo instance and read/write access to the private model registry, use the following procedure.

  1. Set the following convenience variables.

    REGISTRY_HOST=YOUR PRIVATE IMAGE REGISTRY URL
    REGISTRY_NAMESPACE=YOUR WALLAROO CONTAINER NAMESPACE
    LICENSE_CHANNEL=YOUR LICENSE CHANNEL
    VERSION=YOUR VERSION
    WALLAROO_LICENSE=YOUR WALLAROO LICENSE ID
    WALLAROO_LICENSE_USERNAME=YOUR WALLAROO INSTALL USER NAME
    WALLAROO_LICENSE_PASSWORD=YOUR WALLAROO INSTALL USER PASSWORD
    REGISTRY_USERNAME=YOUR REGISTRY AUTHENTICATION USER NAME
    REGISTRY_PASSWORD=YOUR REGISTRY AUTHENTICATION CREDENTIAL


    For example:

    REGISTRY_HOST=registry.wallaroo.ai
    REGISTRY_NAMESPACE=wallaroo
    LICENSE_CHANNEL=2025-1
    VERSION=2025.1.0-6290
    WALLAROO_LICENSE=99999xxxyyyzzz0000
    WALLAROO_LICENSE_USERNAME=abcdefg
    WALLAROO_LICENSE_PASSWORD=12345679
    REGISTRY_USERNAME=ABC123
    REGISTRY_PASSWORD=ZYX987

  2. Login to the private image registry via docker using the following command:

    echo $REGISTRY_PASSWORD | docker login -u $REGISTRY_USERNAME --password-stdin $REGISTRY_HOST


    Upon successful login, the following is returned.

    Login Succeeded

  3. Load images to the private registry using the load-images.bash script. When complete, this outputs the file image-values.yaml with the relevant installation data.

    bash load-images.bash \
        --wallaroo-version $WALLAROO_VERSION \
        --wallaroo-license $WALLAROO_LICENSE \
        --wallaroo-username $WALLAROO_USERNAME \
        --registry-namespace $REGISTRY_NAMESPACE \
        --registry-host $REGISTRY_HOST


Save the file image-values.yaml and use it for the step Install Wallaroo.

Once complete, the Wallaroo images are stored and ready for installation.

Install Wallaroo

Wallaroo air-gapped installations for clusters use helm.

Helm Based Installation of Wallaroo

Installation Client Helm Requirements

The following software is required for the client with administrative access to the Kubernetes cluster that will host Wallaroo via Helm.

  • For Helm installs:
    • helm: Install Helm
    • krew: Install Krew
    • krew preflight and krew support-bundle. Install with the following commands:
      • kubectl krew install support-bundle
      • kubectl krew install preflight

The following details how to install Wallaroo via helm. Note that these procedures require the Air-Gapped Installation Preparation be completed.

Registration Login

The first step in the Wallaroo installation process via Helm is to connect to the Kubernetes environment that will host the Wallaroo Enterprise instance and login to the Wallaroo container registry through the command provided by the Wallaroo support staff. The command will take the following format, replacing $WALLAROO_LICENSE_USERNAME and $WALLAROO_LICENSE_PASSWORD with the respective username and password provided.

helm registry login registry.replicated.com --username $WALLAROO_LICENSE_USERNAME --password $WALLAROO_LICENSE_PASSWORD

Preflight Verification

Preflight verification is performed with the following command format. The variables LICENSE_CHANNEL and VERSION is supplied by your Wallaroo support representative.

helm template oci://registry.replicated.com/wallaroo/$LICENSE_CHANNEL/wallaroo --version $VERSION | kubectl preflight -

For example, the LICENSE_CHANNEL=2025-1 and the VERSION=2025.1.0-6290

helm template oci://registry.replicated.com/wallaroo/2025-1/wallaroo --version 2025.1.0-6290 | kubectl preflight -

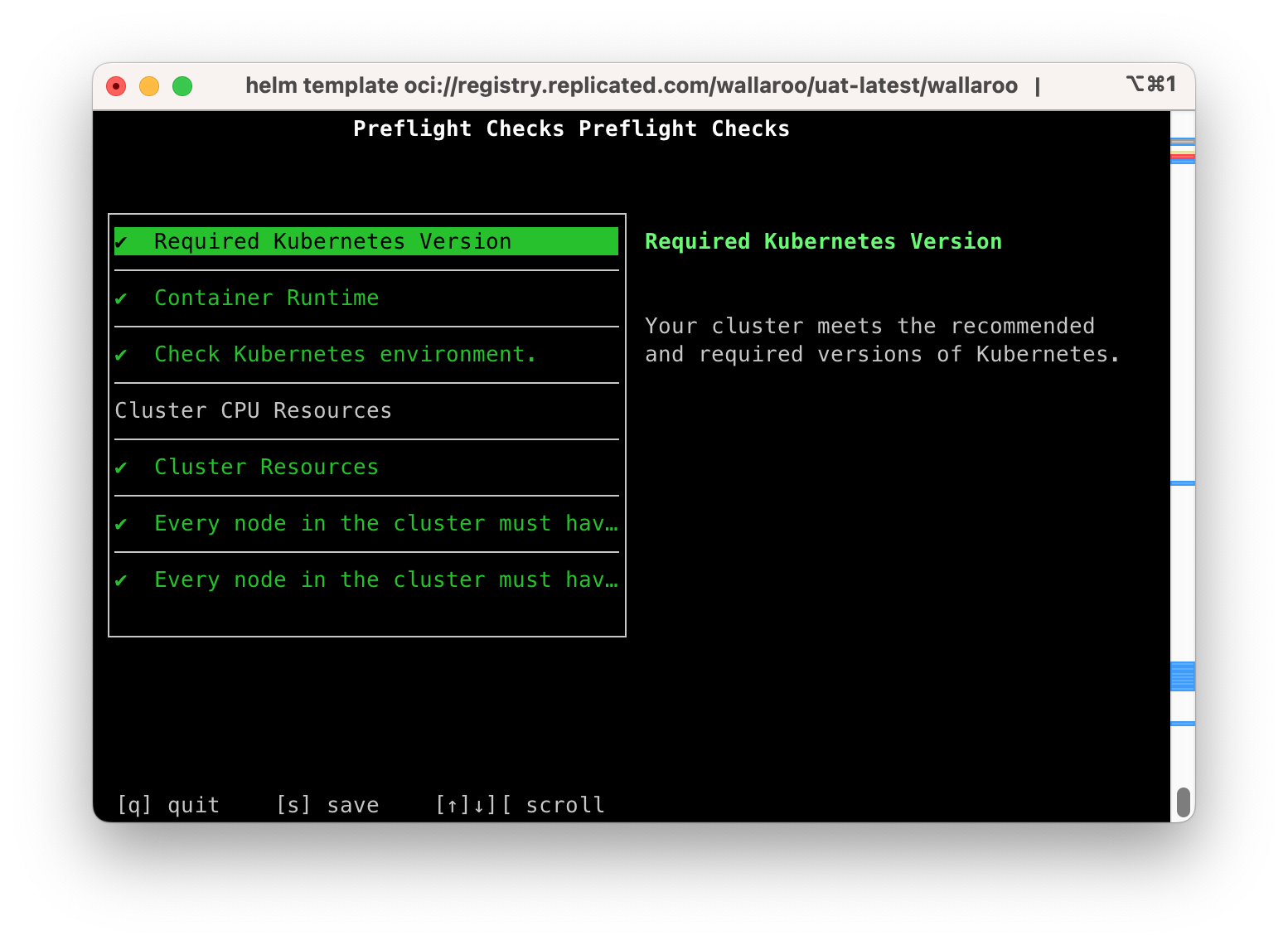

This displays the Preflight Checks report.

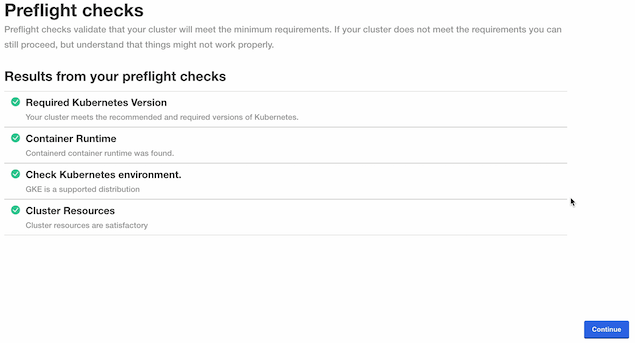

Preflight check example

The following commands are available:

  • s: Save the report to a text file as the file preflight-checks-results-DATETIME.txt. For example: preflight-checks-results-2024-03-19T13_30_41.txt.
  • q: Exit the preflight report.
  • Up Arrow or Down Arrow: Scroll through the preflight elements and view the report details.

The following example shows a successful preflight test.

Preflight Checks Preflight Checks

Check PASS
Title: Required Kubernetes Version
Message: Your cluster meets the recommended and required versions of Kubernetes.

------------
Check PASS
Title: Container Runtime
Message: Containerd container runtime was found.

------------
Check PASS
Title: Check Kubernetes environment.
Message: GKE is a supported distribution

------------
Title: Cluster CPU Resources
Message:

------------
Check PASS
Title: Cluster Resources
Message: Cluster resources are satisfactory

------------
Check PASS
Title: Every node in the cluster must have at least 12Gi of memory
Message: All nodes have at least 12 GB of memory capacity

------------
Check PASS
Title: Every node in the cluster must have at least 8 cpus allocatable.
Message: All nodes have at least 8 CPU capacity

------------

Prepare Helm Installation

The following instructions detail how to install Wallaroo Enterprise via Helm for Kubernetes cloud environments such as Microsoft Azure, Amazon Web Service, and Google Cloud Platform.

Helm Network Configuration

apilb.serviceType settings have the following effects.

SettingCloud Kubernetes
Internal Only ConnectionsClusterIP
External ConnectionsLoadBalancer

Refer to the instructions for environment host for details on IP address allocation and support.

With the preflight checks and prerequisites met, Wallaroo can be installed via Helm through the following process:

  1. Create namespace. By default, the namespace wallaroo is used:

    kubectl create namespace wallaroo

  2. Set the new namespace as the current namespace:

    kubectl config set-context --current --namespace wallaroo

  3. Set the TLS certificate secret in the Kubernetes environment:

    1. Create the certificate and private key. It is recommended to name it after the domain name of your Wallaroo instance. For example: wallaroo.example.com. For production environments, organizations are recommended to use certificates from their certificate authority. Note that the Wallaroo SDK will not connect from an external connection without valid certificates. For more information on using DNS settings and certificates, see the Wallaroo DNS Integration Guide.

    2. Create the Kubernetes secret from the certificates created in the previous step, replacing $TLS_CONFIG with the name of the Kubernetes secret, with the certificate file $TLS_CERT and the private key $TLS_KEY. Store the secret name for a the step Configure local values file.

      kubectl create secret tls $TLS_CONFIG --cert=$TLS_CERT --key=$TLS_KEY


      For example, if $TLS_CONFIG is cust-cert-secret with the certificate $TLS_CERT is fullchain.pem and key $TLS_KEY is privkey.pem, then the command would be translated as

      kubectl create secret tls cust-cert-secret --cert=fullchain.pem --key=privkey.pem

  4. Create the image pull secret for the private image registry. IMPORTANT NOTE: This assumes that the docker login command was run earlier in the step Wallaroo Image Storage.

    kubectl create secret docker-registry regcred --from-file=$HOME/.docker/config.json

  5. (Optional) If using NVIDIA drivers as per the step Optional: Load NVIDIA Gpu Drivers, create a secret in the kube-system namespace with the following command:

    kubectl create secret docker-registry regcred --from-file=$HOME/.docker/config.json --name kube-system


Default Helm Installation Settings

A default Helm install of Wallaroo contains various default settings. The local values file overwrites values based on the organization needs. The following represents the minimum mandatory values for a Wallaroo installation using certificates and the default LoadBalancer for a cloud Kubernetes cluster. The configuration details below is saved as values.yaml for these examples.

Note the following required settings:

  • kubernetes_distribution: Must be set to openShift for OpenShift based installations.

  • wallarooDomain: Used to set the DNS domain name for the Wallaroo instance. For more information, see the Wallaroo DNS Integration Guide.

  • custTlsSecretName: Specify the Kubernetes secret created in the previous step. External connections through the Wallaroo SDK require valid certificates.

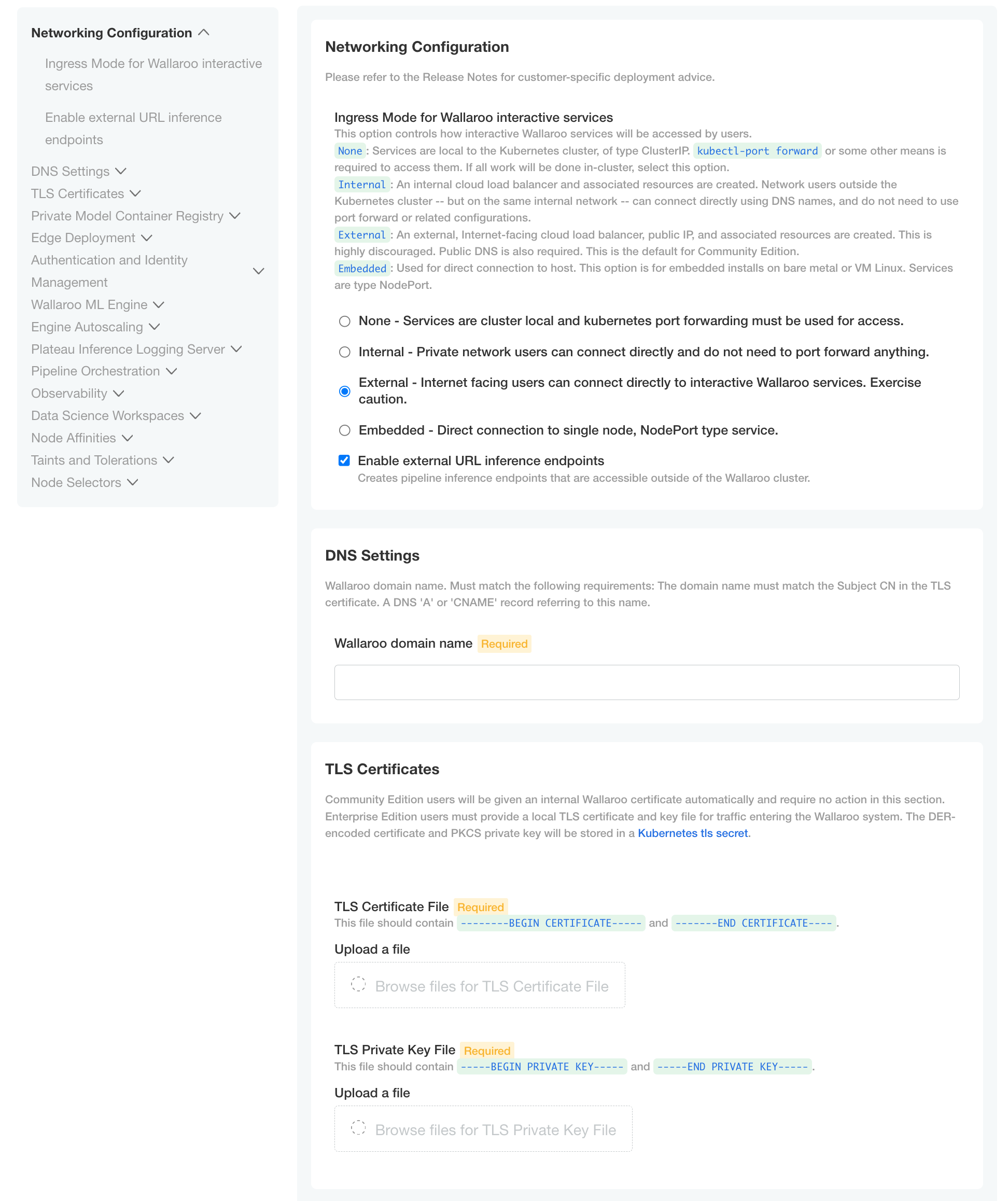

  • ingress_mode: How the Wallaroo instance is reached through the Kubernetes network settings.

    If the environment has a load balancer controller, select external. If the environment does not have a load balancer controller, configure their load balancer as required to point at a K8s or OpenShift service, then select none as the networking setting in configuration. For any questions or other conditions not listed, contact the Wallaroo support representative.

    Options include:

    • internal (Default): An internal cloud load balancer and associated resources are created. Network users outside the Kubernetes cluster – but on the same internal network – can connect directly using DNS names, and do not need to use port forward or related configurations.
    • external: An external, Internet-facing cloud load balancer, public IP, and associated resources are created. This is highly discouraged. Public DNS is also required. This is the default for Wallaroo Community Edition.
    • none: Services are local to the Kubernetes cluster. kubectl-port forward or some other means is required to access them. If all work will be done in-cluster, select this option.
  • dashboard: The name displayed when users login to the Wallaroo Ops center Dashboard. For example, “My Company” or “Sales Division”, etc.

  • imageRegistry: This is required for air-gapped installations and must match the REGISTRY_HOST and REGISTRY_NAMESPACE of private container registry where the Wallaroo install images are installed as per step Wallaroo Image Retrieval and Installation Preparation. For example, if the REGISTRY_HOST=registry.wallaroo.ai and the REGISTRY_NAMESPACE=wallaroo, then the imageRegistry value is registry.wallaroo.ai/wallaroo.

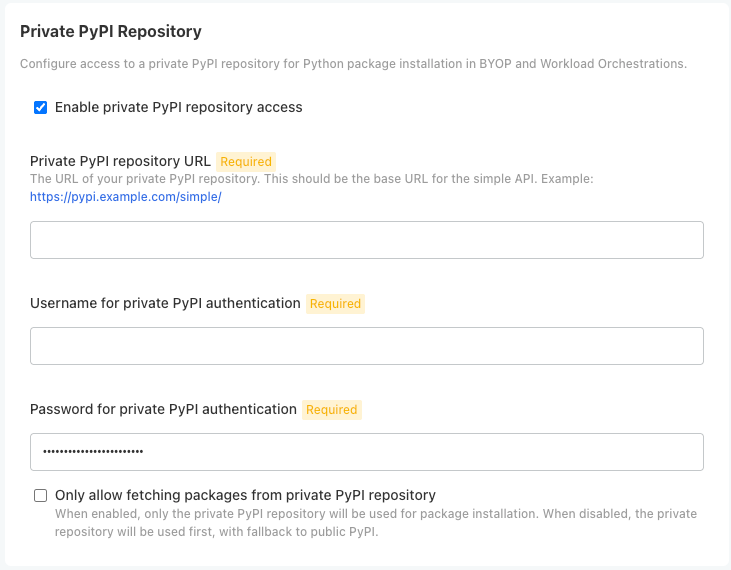

  • privatePypi (Optional): Enables private Python repositories for custom libraries and sources. For more details, see Python Private Repositories.

The following example shows the minimum required options.

This example shows the uncommented keys for the minimum required settings and additional commented optional settings. For full details on helm values for Wallaroo installations, see the Wallaroo Helm Reference Guides.

wallarooDomain: "wallaroo.example.com" # change to match the actual domain name

custTlsSecretName: cust-cert-secret

ingress_mode: internal # internal (Default), external,or none

dashboard:
  clientName: "Wallaroo Helm Example" # Insert the name displayed in the Wallaroo Dashboard

kubernetes_distribution: openShift

# Must be a full registry address calculated by:
# $REGISTRY_HOST/$REGISTRY_NAMESPACE
# For example:
imageRegistry: registry.wallaroo.ai:1234/wallaroo

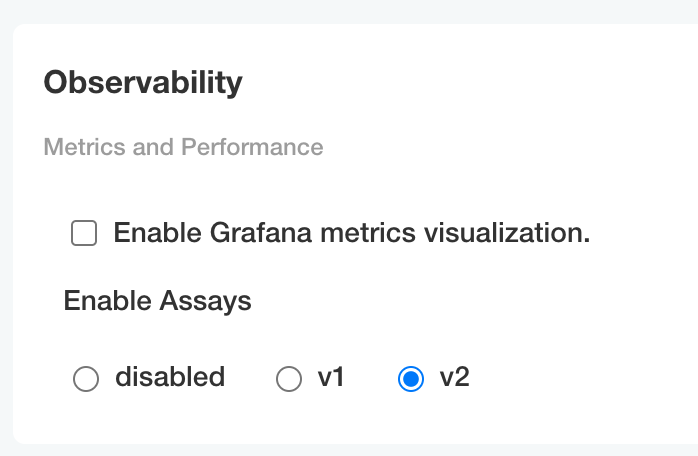

# enable Wallaroo assays.  Select **one** of the following: `v1` or `v2`, or leave commented out to disable assays.
# v2 is enabled by default.
#assays:
#  enabled: true
#  v1: false
#  v2: true

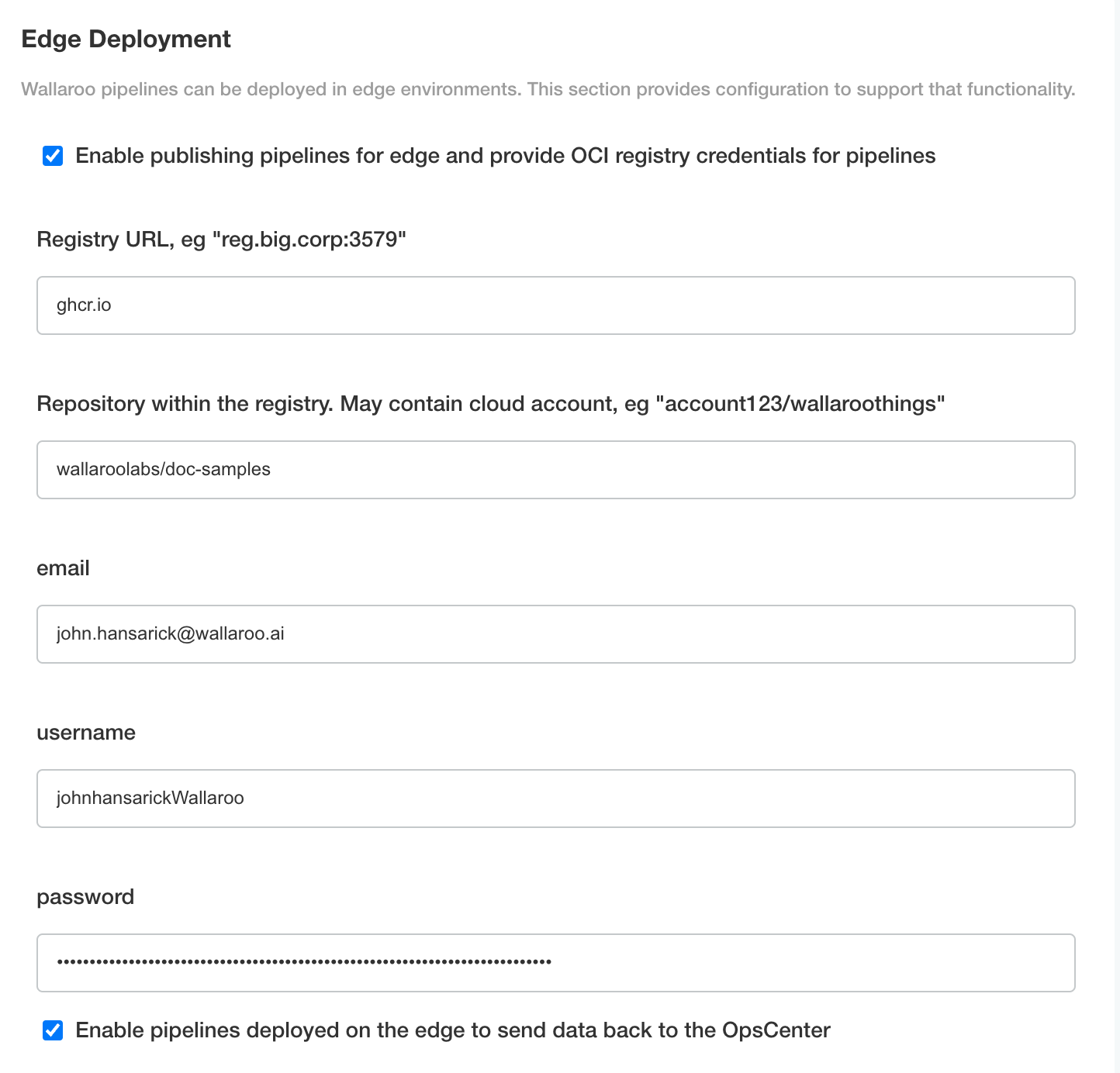

# Enable edge deployment
#ociRegistry:
#  enabled: true # true enables the Edge Server registry information, false disables it.
#  registry: ""# The registry url. For example: reg.big.corp:3579.
#  repository: ""# The repository within the registry. This may include the cloud account, or the full path where the Wallaroo published pipelines should be kept. For example: account123/wallaroo/pipelines.
#  email: "" # Optional field to track the email address of the registry credential.
#  username: "" # The username to the registry. This may vary based on the provider. For example, GCP Artifact Registry with service accounts uses the username _json_key_base64 with the p`ass`word as a base64 processed token of the credential information.
#  password: "" # The password or token for the registry service.

# Enable edge deployment observability
# edgelb:
#     enabled: true

# Private PyPI repository configuration for installing Python packages from a private index.
# When enabled, this configures access to a private PyPI repository for Python package installation in BYOP and Workload Orchestrations.
# privatePypi:
#   enabled: false                    # If true, configure access to a private PyPI repository
#   secretName: private-pypi-secret
#   url: ""                           # Private PyPI repository URL, eg "https://pypi.example.com/simple/"
#   username: ""                      # Username for private PyPI authentication
#   password: ""                      # Password for private PyPI authentication
#   privateOnly: false                # If true, only use private PyPI repository (no fallback to public PyPI)

# The nodeSelector and tolerations for all components
# This does not apply to nats, fluent-bit, or minio so needs to be applied separately
# nodeSelector:
#   wallaroo.ai/reserved: true

# tolerations:
# - key: "wallaroo.ai/reserved"
#   operator: "Exists"
#   effect: "NoSchedule"

# To change the pipeline taint or nodeSelector,
# best practice is to change engine, enginelb, and engineAux
# together unless they will be in different pools.
# engine:
#   nodeSelector:
#     wallaroo.ai/node-purpose: pipelines
#   tolerations:
#     - key: "wallaroo.ai/pipelines"
#       operator: "Exists"
#       effect: "NoSchedule"

# enginelb:
#   nodeSelector:
#     wallaroo.ai/node-purpose: pipelines
#   tolerations:
#     - key: "wallaroo.ai/pipelines"
#       operator: "Exists"
#       effect: "NoSchedule"

# engineAux:
#   nodeSelector:
#     wallaroo.ai/node-purpose: pipelines
#   tolerations:
#     - key: "wallaroo.ai/pipelines"
#       operator: "Exists"
#       effect: "NoSchedule"

# For each service below, adjust the disk size and resources as required.
# If the nodeSelector or tolerations are changed for one service,
# the other services nodeSelector and tolerations **must** be changed to match
#
#
# plateau:
#   diskSize: 100Gi
#   resources:
#     limits:
#       memory: 4Gi
#       cpu: 1000m
#     requests:
#       memory: 128Mi
#       cpu: 100m
#   nodeSelector:
#     wallaroo.ai/node-purpose: persistent
#   tolerations:
#     - key: "wallaroo.ai/persistent"
#       operator: "Exists"
#       effect: "NoSchedule"

# Jupyter has both hub and lab nodeSelectors and tolerations
# They default to the same persistent pool, but can be assigned to different ones
# jupyter:
#   nodeSelector:                 # Node placement for Hub administrative pods
#     wallaroo.ai/node-purpose: persistent
#   tolerations:
#     - key: "wallaroo.ai/persistent"
#       operator: "Exists"
#       effect: "NoSchedule"
#   labNodeSelector:              # Node placement for Hub-spawned jupyterlab pods
#     wallaroo.ai/node-purpose: persistent
#   labTolerations:
#     - key: "wallaroo.ai/persistent"
#       operator: "Exists"
#       effect: "NoSchedule"
#   memory:
#     limit: "4"                  # Each Lab - memory limit in GB
#     guarantee: "2"              # Each Lab - lemory guarantee in GB
#   cpu:
#     limit: "2.0"                # Each Lab - fractional CPU limit
#     guarantee: "1.0"            # Each Lab - fractional CPU guarantee
#   storage:
#     capacity: "50"              # Each Lab - disk storage capacity in GB

# minio:
#   persistence:
#     size: 25Gi
#   nodeSelector:
#     wallaroo.ai/node-purpose: persistent
#   tolerations:
#   - key: wallaroo.ai/persistent
#     operator: "Exists"
#     effect: "NoSchedule"
#   resources:
#     requests:
#       memory: 1Gi

# postgres:
#   diskSize: 10Gi
#   nodeSelector:
#     wallaroo.ai/node-purpose: persistent
#   tolerations:
#     - key: "wallaroo.ai/persistent"
#       operator: "Exists"
#       effect: "NoSchedule"
#   resources:
#     limits:
#       memory: 2Gi
#       cpu: 500m
#     requests:
#       memory: 512Mi
#       cpu: 100m

# Prometheus has the usual persistent options, but also a retention size
# The the size on disk and time can be configured before removing it.
# prometheus:
#   storageRetentionSizeGb: "10"        # Retain this much data, in GB.
#   storageRetentionTimeDays: "15"     # When to remove old data. In days.
#   nodeSelector:
#     wallaroo.ai/node-purpose: persistent
#   tolerations:
#     - key: "wallaroo.ai/persistent"
#       operator: "Exists"
#       effect: "NoSchedule"
#   resources:
#     limits:
#       memory: 6Gi
#       cpu: 2000m
#     requests:
#       memory: 512Mi
#       cpu: 100m

# nats:
#   podTemplate:
#     merge:
#       spec:
#         nodeSelector:
#           wallaroo.ai/node-purpose: persistent
#         tolerations:
#         - key: "wallaroo.ai/persistent"
#           operator: "Exists"
#           effect: NoSchedule

# wallsvc:
#   nodeSelector:
#     wallaroo.ai/node-purpose: persistent
#   tolerations:
#     - key: "wallaroo.ai/persistent"
#       operator: "Exists"
#       effect: "NoSchedule"

persistentVolume Settings

Wallaroo services that have a persistentVolume have the following default nodeSelector label and tolerations:

  • nodeSelector
    • Label: wallaroo.ai/node-purpose
    • Value: persistent
  • tolerations
    • Key: wallaroo.ai/persistent
    • Operator: “Exists”
    • Effect: “NoSchedule”

For example:

nodeSelector:
  wallaroo.ai/node-purpose: persistent
tolerations:
  - key: wallaroo.ai/persistent
    operator: "Exists"
    effect: "NoSchedule"

If the nodeSelector or tolerations are changed for any service with a persistentVolume, all other services must be edited to match.

For additional information on taints and tolerations settings, see the Taints and Labels Guide.

Install Wallaroo with Helm

  1. Install Wallaroo: The Wallaroo support representative will provide the installation command for the Helm install that will use the Wallaroo container registry. This assumes that the preflight checks were successful. This assumes some of these helper variables are set from the previous procedure Air-Gapped Installation Preparation.

    1. $RELEASE: The name of the Helm release. By default, wallaroo.
    2. $REGISTRY_URI: The URl for the Wallaroo container registry service.
    3. $VERSION: The version of Wallaroo to install. For this example, 2025.1.0-6290.
    4. $LOCALVALUES: The .yaml file containing the local values overrides. For this example, values.yaml.
    5. image-values.yaml file generated created in the step Wallaroo Image Retrieval and Installation Preparation.
    helm install wallaroo \
      oci://registry.replicated.com/wallaroo/2025-1/wallaroo \
      --version 2025.1.0-6290 \
      --values values.yaml \
      --values image-values.yaml \
      --timeout 10m \
      --wait \
      --wait-for-jobs


Verify Installation

If any required elements are missing from the values.yaml file, an error is displayed. For example, leaving out the kubernetes_distribution field returns the following:

Warning - kubernetes_distribution must be set in user provided values.yaml

Upon successful installation, notes are published indicating the installed version, where to find documentation, etc.:

NOTES:
.

Welcome to Wallaroo 2025.1.0

1. Deployment Information:
Name:             2025.1.0
Release notes:    https://docs.wallaroo.ai/wallaroo-release-notes/wallaroo-release-202501
Version:          v2025.1.0-5187

2. Accessing Wallaroo
Documentation:    https://docs.wallaroo.ai
Dashboard:        https://sample.wallaroocommunity.ninja

3. Useful Commands:

- Helm tests are available by using: `helm test wallaroo`.

- External load balancer hostname can be found by using:

    kubectl get svc api-lb-ext  -o jsonpath='{.status.loadBalancer.ingress[0].hostname}'

- List Wallaroo namespaces, including pipeline deployments, but not including the main `wallaroo` namespace:

    kubectl get namespaces -l wallaroo-managed=true

- In order to change any helm values:

    helm upgrade --install wallaroo oci://registry.replicated.com/wallaroo/uat-latest/wallaroo --version v2025.1.0-5187 --values $LOCALVALUES_YAML --timeout 10m --wait --wait-for-jobs

4. Uninstall:

 1. To uninstall/delete the Wallaroo deployment, run:

   kubectl delete ns wallaroo && kubectl delete \
     all,secret,configmap,clusterroles,clusterrolebindings,storageclass,crd \
     --selector app.kubernetes.io/part-of=wallaroo --selector kots.io/app-slug=wallaroo

 2. To delete all pipelines, run:

   kubectl delete ns -l wallaroo-managed=true
.
  1. Once the installation is complete, verify the installation with the helm test $RELEASE command. A condensed display uses egrep to show only the test suite and phase status as follows. Replace wallaroo with the name of the helm release used.

    helm test wallaroo | egrep 'SUITE:|Phase:'


    A successful result shows the following:

    TEST SUITE:     wallaroo-fluent-bit-test-connection
    Phase:          Succeeded
    TEST SUITE:     nats-test-request-reply
    Phase:          Succeeded
    TEST SUITE:     wallaroo-wallaroo-test-connections-hook
    Phase:          Succeeded
    TEST SUITE:     wallaroo-test-objects-hook
    Phase:          Succeeded


    The following will show the full helm test output with notes.

    helm test wallaroo


    which displays the following:

    NAME: wallaroo
    LAST DEPLOYED: Fri May 17 14:00:04 2024
    NAMESPACE: wallaroo
    STATUS: deployed
    REVISION: 2
    TEST SUITE:     wallaroo-fluent-bit-test-connection
    Last Started:   Fri May 17 14:04:48 2024
    Last Completed: Fri May 17 14:04:51 2024
    Phase:          Succeeded
    TEST SUITE:     nats-test-request-reply
    Last Started:   Fri May 17 14:04:43 2024
    Last Completed: Fri May 17 14:04:48 2024
    Phase:          Succeeded
    TEST SUITE:     sample-wallaroo-test-connections-hook
    Last Started:   Fri May 17 14:04:24 2024
    Last Completed: Fri May 17 14:04:31 2024
    Phase:          Succeeded
    TEST SUITE:     sample-wallaroo-test-objects-hook
    Last Started:   Fri May 17 14:04:31 2024
    Last Completed: Fri May 17 14:04:43 2024
    Phase:          Succeeded
    NOTES:
    .

    Welcome to Wallaroo 2025.1.0

    1. Deployment Information:
      Name:             2025.1.0
      Release notes:    https://docs.wallaroo.ai/wallaroo-release-notes/wallaroo-release-202501
      Version:          v2025.1.0-5187

    2. Accessing Wallaroo
      Documentation:    https://docs.wallaroo.ai
      Dashboard:        https://sample.wallaroocommunity.ninja

    3. Useful Commands:

      - Helm tests are available by using: `helm test wallaroo`.

      - External load balancer hostname can be found by using:

          kubectl get svc api-lb-ext  -o jsonpath='{.status.loadBalancer.ingress[0].hostname}'

      - List Wallaroo namespaces, including pipeline deployments, but not including the main `wallaroo` namespace:

          kubectl get namespaces -l wallaroo-managed=true

      - In order to change any helm values:

          helm upgrade --install wallaroo oci://registry.replicated.com/wallaroo/2025-1/wallaroo --version 2025.1.0-6290 --values $LOCALVALUES_YAML --timeout 10m --wait --wait-for-jobs

     4. Uninstall:

      1. To uninstall/delete the Wallaroo deployment, run:

        kubectl delete ns wallaroo && kubectl delete \
          all,secret,configmap,clusterroles,clusterrolebindings,storageclass,crd \
          --selector app.kubernetes.io/part-of=wallaroo --selector kots.io/app-slug=wallaroo

      2. To delete all pipelines, run:

        kubectl delete ns -l wallaroo-managed=true
    .


At this point, the installation is complete and can be accessed through the fully qualified domain names set in the installation process above.

To add the initial users if they were not set up through Helm values, see the Wallaroo Enterprise User Management guide.

Install Wallaroo via Kots

Before starting an air-gapped installation of Wallaroo using Kots, complete the following preparation steps.

The general process follows these steps:

  • Pre Setup Checklist for Kots: The necessary installation files are available and values set for installation.
  • Wallaroo Image Retrieval and Installation Preparation for Kots: Retrieve the installation images from Wallaroo and store them in a private container registry available from the Target Cluster.

Pre Setup Checklist for Kots

The following checklist ensures that required items are ready before starting the process.

  • The installation environment meets the general Wallaroo Installation Prerequisites.
  • The Domain Name for the Wallaroo instance is registered in a private DNS accessible from the air-gapped installation.
  • TLS certificate and private key matching the Domain Name available for the Target Cluster. This can be registered to a private certificate service.
  • Access to private image registry that hosts the Wallaroo install images with the following permissions:
    • Read
    • Write
    • List
  • The following Bash scripts:
    • install-nvidia-driver.bash (Optional): Installs Nvidia drivers for the Target Cluster. Available here: install-nvidia-driver.bash
  • Wallaroo Image Download Details: This is provided by a Wallaroo Support Representative and are stored as the following variables environmental variables:
    • LICENSE_CHANNEL: The registry channel used based on the version of Wallaroo being installed, currently 2025-1.
    • VERSION: The Wallaroo version to be installed. For example: 2025.1.0-6290.
    • KOTS_CLIENT_URL: The URL for downloading the Kots client file kots_linux_amd64.tar.gz with the kots version used for the Wallaroo air-gapped installation.
    • KOTS_ADMIN_URL: The URL for downloading the Kots admin bundle kotsadm.tar.gz with the kots version used for the Wallaroo air-gapped installation.
    • WALLAROO_BUNDLE_URL: The customer specific URL for downloading the Wallaroo installation package. IMPORTANT NOTE: This URL has an expiration time of around 60 minutes, and the final downloaded file is 30 GB in size.
  • The following artifacts provided by the Wallaroo Support representative:
      • License File: This is a yaml file that contains the Wallaroo license information for your organization. For this procedure, it is referred to as license.yaml.
  • The following environmental variables for connecting to the private model registry:
    • REGISTRY_ADDRESS: The fully qualified domain name of the private image registry with the registry namespace used to install Wallaroo. For example: registry.wallaroo.ai/wallaroo. The wallaroo in the URL is the namespace.
    • REGISTRY_USERNAME: Username for authentication to the registry.
    • REGISTRY_PASSWORD: Authentication credential for private registry. Often this is either a password or a token.
  • Administration Host Software Requirements: The administrative host that submits the installation commands to the target cluster requires the following software.
    • docker
    • curl
    • jq version 1.7.1
    • kubectl version 1.31

Wallaroo Image Retrieval and Installation Preparation for Kots

For air-gapped installations, the Wallaroo installation images are downloaded and stored in a private registry through the following process.

The image load script below expects root level access and add the prefix wallaroo/ prefix for all the Wallaroo images. Access to the registry must include the following permissions:

  • Read
  • List
  • Write

From a terminal with access to the Kubernetes cluster hosting the Wallaroo instance and read/write access to the private model registry, use the following procedure.

  1. This installation assumes the user will ssh into the target installation system with port forwarding enabled. For example, ssh -L 8800:localhost:8800 hostname. This is so later in the process the Kots Administrative Dashboard is access through the url http://localhost:8080.

  2. Set the following convenience variables.

    REGISTRY_ADDRESS=YOUR PRIVATE IMAGE REGISTRY URL AND NAMESPACE
    LICENSE_CHANNEL=YOUR LICENSE CHANNEL
    REGISTRY_USERNAME=YOUR REGISTRY AUTHENTICATION USER NAME
    REGISTRY_PASSWORD=YOUR REGISTRY AUTHENTICATION CREDENTIAL
    KOTS_CLIENT_URL=YOUR KOTS CLIENT URL
    KOTS_ADMIN_URL=YOUR KOTS ADMIN URL
    WALLAROO_BUNDLE_URL=YOUR WALLAROO BUNDLE URL
    WALLAROO_DOWNLOAD_AUTHORIZATION=YOUR AUTHORIZATION CODE


    For example:

    REGISTRY_ADDRESS=registry.wallaroo.ai/wallaroo
    LICENSE_CHANNEL=2025-1
    REGISTRY_USERNAME=ABC123
    REGISTRY_PASSWORD=ZYX987
    KOTS_CLIENT_URL="https://github.com/replicatedhq/kots/releases/download/v1.124.18/kots_linux_amd64.tar.gz"
    KOTS_ADMIN_URL="https://github.com/replicatedhq/kots/releases/download/v1.124.18/kotsadm.tar.gz"
    WALLAROO_BUNDLE_URL="https://s3.amazonaws.com/airgap.replicated.com/abcdefg/2.airgap?X-Amz-Algorithm=AWS4-HMAC-SHA256&X-Amz-Credential=ASIA3UMYHRA5LHP4KTHN%2F20250708%2Fus-east-1%2Fs3%2Faws4_request&X-Amz-Date=20250708T160517Z&X-Amz-Expires=3600&X-Amz-Security-Token=abcdefg"

  3. Download the following via curl via the following commands:

    1. Kots CLI: curl -LO $KOTS_CLIENT_URL. This downloads the file kots_linux_amd64.tar.gz.
    2. Kots admin bundle: curl -LO $KOTS_ADMIN_URL. This downloads the file kotsadm.tar.gz.
    3. Wallaroo Installation Bundle: curl -Lo wallaroo.airgap $WALLAROO_BUNDLE_URL. This saves the file as wallaroo.airgap. IMPORTANT NOTE: This URL has an expiration time of around 60 minutes, and the final downloaded file is 30 GB in size.
  4. Install Kots client via the following commands:

    tar zxf kots_linux_amd64.tar.gz
    sudo mv kots /usr/local/bin/kubectl-kots
    sudo chmod a+x /usr/local/bin/kubectl-kots

  5. Push the Kots administrative bundle to the private registry via the following command:

    kubectl kots admin-console \
        push-images kotsadm.tar.gz \
        $REGISTRY_ADDRESS \
        --registry-username $REGISTRY_USERNAME \
        --registry-password $REGISTRY_PASSWORD

  6. Install Wallaroo via the following command. This takes approximately 30 minutes, and will pause as each image is loaded. The following parameters are manually set:

    • --shared-password: The password to the Kots Administrative Dashboard after installation is complete. For example, --shared-password wallaroo
    • --license-file: The file name of the license file. For example: --license-file license.yaml
    kubectl kots install $CHANNEL \
        --namespace wallaroo --shared-password wallaroo \
        --airgap-bundle wallaroo.airgap --license-file license.yaml \
        --kotsadm-registry $REGISTRY_ADDRESS \
        --registry-username $REGISTRY_USERNAME  \
        --registry-password $REGISTRY_PASSWORD

  7. Once complete, a prompt is displayed showing the Kots Administrative Dashboard is displayed. Use this URL in a browser to proceed to the next stage in the installation process.

    • Deploying Admin Console
    • Creating namespace ✓
    • Waiting for datastore to be ready ✓
        Enter a new password to be used for the Admin Console: •••••••••••••
      • Waiting for Admin Console to be ready ✓

    • Press Ctrl+C to exit
    • Go to http://localhost:8800 to access the Admin Console


Initial Wallaroo Config

Once Wallaroo has been installed via kots for the first time, we can perform initial configuration.

  1. If the Kots Administrative Console has not started, launch it with the following command:

    ❯ kubectl kots admin-console --namespace wallaroo
      • Press Ctrl+C to exit
      • Go to http://localhost:8800 to access the Admin Console

  2. Enter the Kots Administrative Console address into a browser. You will be prompted for the default password as set in the step above. Enter it and select Log in.

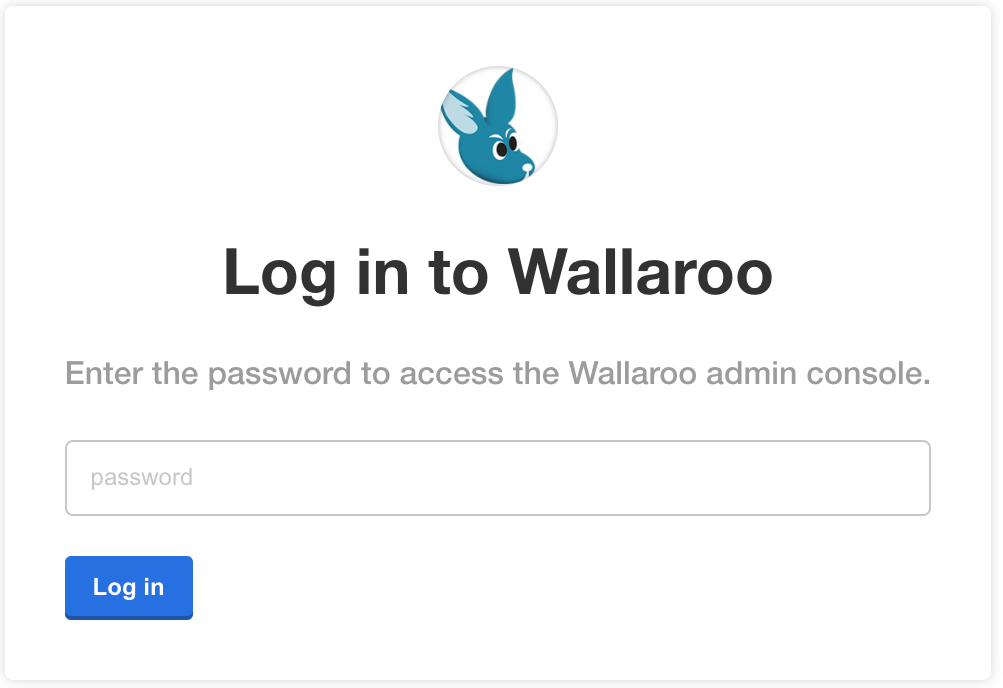

    Kots Administrative Console Initial Login
  3. Upload your license file. If the license file was already selected from the Automated installation, this step is skipped.

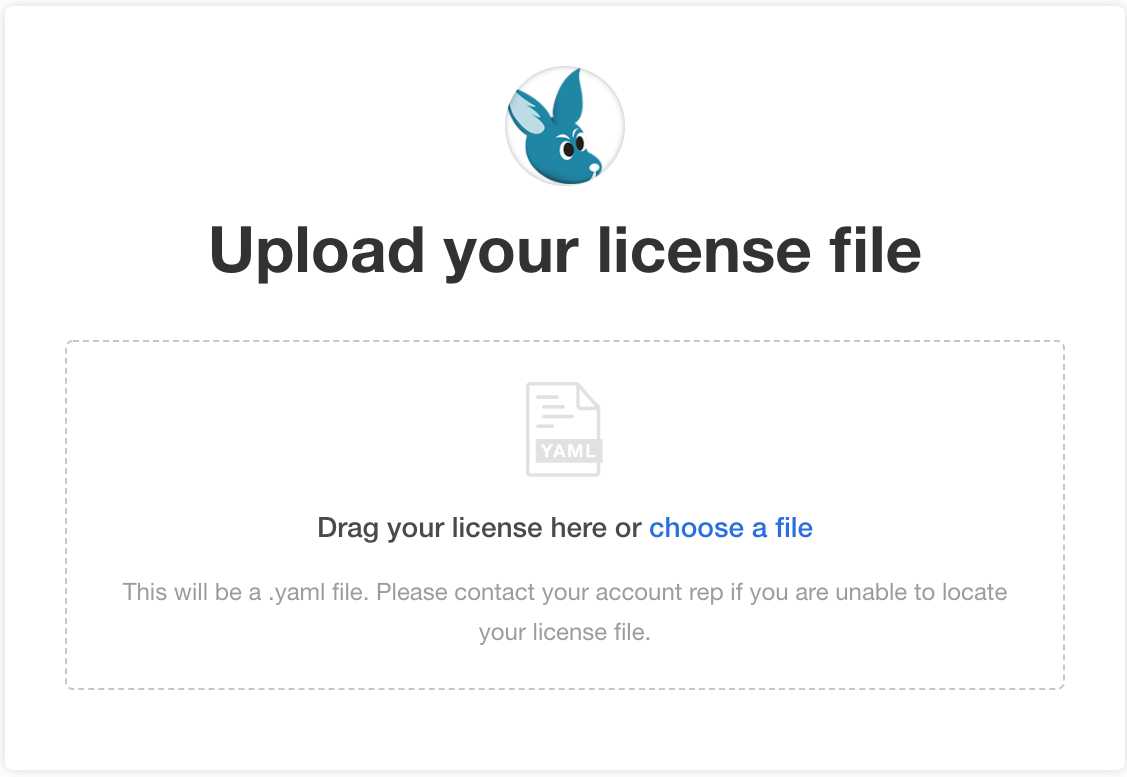

    Wallaroo Admin Upload License
  4. The Kots Administrative Console will run the preflight checks to verify that all of the minimum requirements are met. This may take a few minutes. If there are any issues, Wallaroo can still be launched but may not function properly. When ready, select Continue.

    Wallaroo Admin Preflight Successful
  5. The Configure Wallaroo page will be displayed which allows you to customize your Wallaroo environment. The following are the minimum required settings.

    1. Networking Configuration: Set whether the Wallaroo instance is available from outside the Kubernetes cluster, or only from within it.

      1. Ingress Mode for Wallaroo Endpoints: If a load balance controller is used, select External. If there is no load balance controller configured, the load balancer must be configured to point at a K8s or OpenShift service, then select None as the networking setting in configuration. For any questions or other conditions not listed, contact the Wallaroo support representative.
        1. None: Services are local to the Kubernetes cluster. kubectl-port forward or some other means is required to access them. If all work will be done in-cluster, select this option.
        2. Internal: An internal cloud load balancer and associated resources are created. Network users outside the Kubernetes cluster – but on the same internal network – can connect directly using DNS names, and do not need to use port forward or related configurations.
        3. External: An external, Internet-facing cloud load balancer, public IP, and associated resources are created. This is highly discouraged. Public DNS is also required. This is the default for Wallaroo Community Edition.
          1. Enable external URL inference endpoints: Creates pipeline inference endpoints. For more information, see Model Endpoints Guide.
    2. From the Wallaroo Dashboard, select Config and set the following:

      Kots DNS Settings
    3. DNS Settings

      1. Wallaroo domain name (Required): The domain for the Wallaroo instance.
    4. TLS Certificates

      1. Use custom TLS Certs: Checked
      2. TLS Certificate: Enter your TLS Certificate (.crt file).
      3. TLS Private Key: Enter your TLS private key (.key file).
  6. Once complete, scroll to the bottom of the Config page and select Deploy.

  7. At this point, continue to Required Installation Configurations for the required configuration settings.

Edge Deployment Configuration

The following optional configurations to enable OCI Registry integration with Wallaroo for deploying models in edge and multi-cloud environments through Wallaroo. For more details, see Inference Anywhere.

To set the Edge Registry Settings through the Kots Administrative Dashboard:

  1. Launch the Kots Administrative Dashboard using the following command, replacing the --namespace parameter with the Kubernetes namespace for the Wallaroo instance:

    kubectl kots admin-console --namespace wallaroo

  2. Open a browser at the URL detailed in the step above and authenticate using the console password set as described in the as detailed in the Wallaroo Install Guides.

  3. From the top menu, select Config then scroll to Edge Deployment.

  4. Enable Provide OCI registry credentials for pipelines.

  5. Enter the following:

    Edge deployment registry service details

    1. Registry URL: The address of the registry service. For example: us-west1-docker.pkg.dev.
    2. email: The email address of the user account used to authenticate to the service.
    3. username: The account used to authenticate to the registry service.
    4. password: The password or token used to authenticate to the registry service.
    5. To enable edge observability, enable Enable pipelines deployed on the edge to send data back to the OpsCenter.
  6. Save the updated configuration, then deploy it. Once complete, the edge registry settings will be available.

Set Assay Version

To enable Wallaroo assays via kots:

  1. From the Config page, scroll to Config -> Observability -> Enable Assays.

  2. Select from one of the following options:

    1. Disable: Disable assays.
    2. v1: Enable Wallaroo Assays V1.
    3. v2: Enable Wallaroo Assays V2 (Default).
  3. Complete the deployment as needed.

Custom Tolerations and Node Selectors Configuration

By default, the following taints and labels are applied to nodepools used for Wallaroo installations.

Nodepools created in Wallaroo require the following taints and labels.

For custom taints and labels, see the Custom Taints and Labels Guide.

NodepoolTaintsLabelsDescription
generalN/Awallaroo.ai/node-purpose: generalFor general Wallaroo services. No taints are applied to this nodepool to allow any process not assigned with a deployment label to run in this space.
persistentwallaroo.ai/persistent=true:NoSchedulewallaroo.ai/node-purpose: persistentFor Wallaroo services with a persistentVolume settings, including JupyterHub, Minio, etc.
pipelines-x86wallaroo.ai/pipelines=true:NoSchedulewallaroo.ai/node-purpose: pipelinesFor deploying pipelines for default x86 architectures. The taints and label must be applied to any nodepool used for model deployments.

The following commands are examples how to review and verify labels in nodes. Check with the host documentation as needed.

  1. List all the nodes with:

    kubectl get node

  2. To label a node, select which node to label and apply the label via the following example:

    kubectl label node node1 wallaroo.ai/node-purpose=general

  3. To apply a taint to a node, select the node and apply the taint via the following example:

    kubectl taint node node1 key1=value1:NoSchedule


For organizations that use custom Kubernetes taints and labels for their nodepools, the tolerations and node selectors for Wallaroo services will have to be modified to match. For full details, see the Custom Taints and Labels Guide.

To modify the tolerations and node selector labels to match the taints and labels set for the nodepools:

  1. From the Kots Administrative Dashboard, select Config.
  2. Update each of the following as needed:
    1. Node Affinities:

      1. Node affinity type key: Verify that the node affinity key matches the label for the nodepools.

      2. Engine affinity value: Set the engine affinity - the affinity used for pipeline deployment - to match the label.

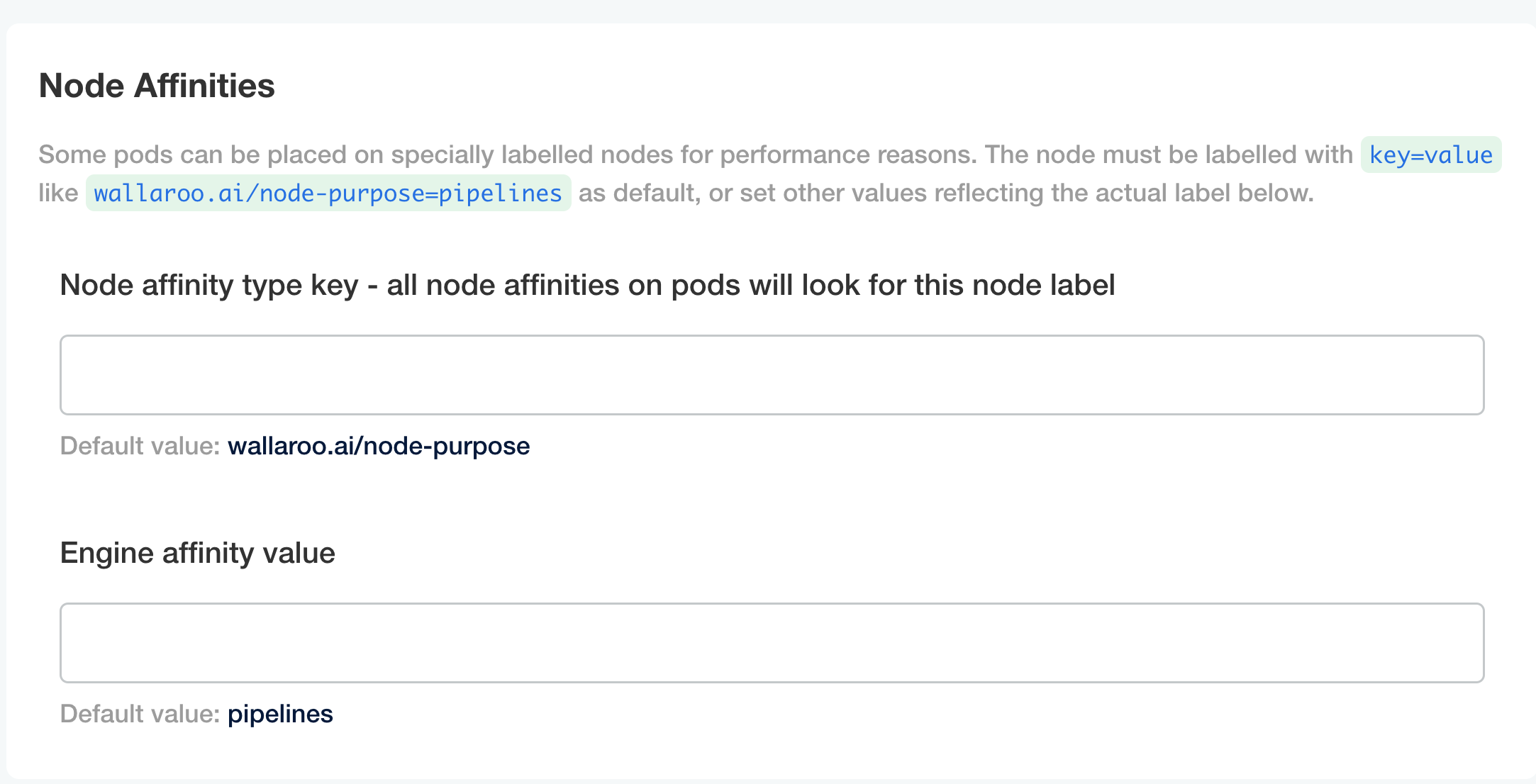

        Node Affinity
    2. Taints and Tolerations. Set the custom tolerations to match the taints applied to the nodepools, and the node selectors to match the labels used for the nodepools.

    3. Node Selectors: Update the node selector to match the custom nodepools labels for each service.

      Kots Custom Toleration and Node Selectors
Private Python Repository via Kots

Administrators can configure Wallaroo with a Python private package repository (for example, Nexus, Github) into Wallaroo from within the same local network. This is useful for providing access to custom Python libraries for:

To enable Python private model registries via kots, enable the following settings:

  1. From the Kots Administrative Dashboard, select Config.

  2. From the section Private PyPi Repository, set the following:

    Kots Custom Toleration and Node Selectors
    1. Enable private PyPi repository access: Enables the private Python repository. If not enabled, the following settings are ignored.
    2. Private PyPI repository URL: The URL for the private repository in the format https://{HOST_NAME}.
    3. Username for private PyPI authentication: Sets the username authentication credential to the private repository.
    4. Password for private PyPI authentication: Sets the password authentication credential to the private repository.
    5. Only allow fetching packages from private PiPI repository: If enabled, only uses the defined private PyPi repository; any public PyPI links are ignored.

Optional: Load NVIDIA GPU Drivers

To install NVIDIA GPU drivers in an OpenShift environment, see Introduction to NVIDIA GPU Operator on OpenShift

Uninstall

To uninstall Wallaroo from an air-gapped environment, see How to Uninstall Wallaroo from a Cluster.
