Model Drift Detection for Edge Deployments

How to detect model drift in Wallaroo Run Anywhere deployments using the house price model as an example.

Features:

Models:

Houseprice-Prediction

This tutorial and the assets can be downloaded as part of the Wallaroo Tutorials repository.

Model Drift Detection for Edge Deployments Tutorial

The Model Insights feature lets you monitor how the environment that your model operates within may be changing in ways that affect it’s predictions so that you can intervene (retrain) in an efficient and timely manner. Changes in the inputs, data drift, can occur due to errors in the data processing pipeline or due to changes in the environment such as user preference or behavior.

Wallaroo Run Anywhere allows models to be deployed on edge and other locations, and have their inference result logs uploaded to the Wallaroo Ops center. Wallaroo assays allow for model drift detection to include the inference results from one or more deployment locations and compare any one or multiple locations results against an established baseline.

This notebook is designed to demonstrate the Wallaroo Run Anywhere with Model Drift Observability with Wallaroo Assays. This notebook will walk through the process detecting Model Drift by Location:

Model Drift by Location:
- Perform inference requests on each of the model edge deployments.
- Perform the steps in creating an assay:
  - Build an assay baseline with a specified location for inference results.
  - Preview the assay and show different assay configurations based on selecting the inference data from the Wallaroo Ops model deployment versus the edge deployment.
  - Create the assay.
  - View assay results.

This notebook focuses on Model Drift by Location.

Goal

Model insights monitors the output of the house price model over a designated time window and compares it to an expected baseline distribution. We measure the performance of model deployments in different locations and compare that to the baseline to detect model drift.

Resources

This tutorial provides the following:

Models:
- models/rf_model.onnx: The champion model that has been used in this environment for some time.
- Various inputs:
  - smallinputs.df.json: A set of house inputs that tends to generate low house price values.
  - biginputs.df.json: A set of house inputs that tends to generate high house price values.

Prerequisites

A deployed Wallaroo instance with Edge Registry Services and Edge Observability enabled.
The following Python libraries installed:
- wallaroo: The Wallaroo SDK. Included with the Wallaroo JupyterHub service by default.
- pandas: Pandas, mainly used for Pandas DataFrame
A X64 Docker deployment to deploy the model on an edge location.
The notebook “Wallaroo Run Anywhere Model Drift Observability with Assays: Preparation” has been run, and the model edge deployments executed.

Steps

Deploying a sample ML model used to determine house prices based on a set of input parameters.
Build an assay baseline from a set of baseline start and end dates, and an assay baseline from a numpy array.
Preview the assay and show different assay configurations.
Upload the assay.
View assay results.
Pause and resume the assay.

This notebook requires the notebook “Wallaroo Run Anywhere Model Drift Observability with Assays: Preparation” has been run, and the model edge deployments executed. The name of the workspaces, pipelines, and edge locations in this notebook must match the same ones in “Wallaroo Run Anywhere Model Drift Observability with Assays: Preparation”.

Import Libraries

The first step will be to import our libraries, and set variables used through this tutorial.

import wallaroo
from wallaroo.object import EntityNotFoundError
from wallaroo.framework import Framework

from IPython.display import display

# used to display DataFrame information without truncating
from IPython.display import display
import pandas as pd
pd.set_option('display.max_colwidth', None)
pd.set_option('display.max_columns', None)

import datetime
import time
import json

workspace_name = f'run-anywhere-assay-demonstration-tutorial'
main_pipeline_name = f'assay-demonstration-tutorial'
model_name_control = f'house-price-estimator'
model_file_name_control = './models/rf_model.onnx'

# Set the name of the assay
assay_name="ops assay example"
edge_assay_name = "edge assay example"
combined_assay_name = "combined assay example"

# ignoring warnings for demonstration
import warnings
warnings.filterwarnings('ignore')

# used to display DataFrame information without truncating
from IPython.display import display
import pandas as pd
pd.set_option('display.max_colwidth', None)
pd.set_option('display.max_columns', None)

Connect to the Wallaroo Instance

The first step is to connect to Wallaroo through the Wallaroo client. The Python library is included in the Wallaroo install and available through the Jupyter Hub interface provided with your Wallaroo environment.

This is accomplished using the wallaroo.Client() command, which provides a URL to grant the SDK permission to your specific Wallaroo environment. When displayed, enter the URL into a browser and confirm permissions. Store the connection into a variable that can be referenced later.

If logging into the Wallaroo instance through the internal JupyterHub service, use wl = wallaroo.Client(). For more information on Wallaroo Client settings, see the Client Connection guide.

wl = wallaroo.Client()

Retrieve Workspace and Pipeline

For our example, we will retrieve the same workspace and pipeline that were used to create the edge locations. This requires that the preparation notebook is run first and the same workspace and pipeline names are used.

wl.list_workspaces()

Name	Created At	Users	Models	Pipelines
admin - Default Workspace	2025-05-21 17:40:43	['admin@keycloak']	0	0
john.hansarick@wallaroo.ai - Default Workspace	2025-05-21 17:41:01	['john.hansarick@wallaroo.ai']	0	0
ccfraudworkspace	2025-05-21 17:41:25	['john.hansarick@wallaroo.ai']	1	1
data-optimizations-samples	2025-05-28 15:34:40	['john.hansarick@wallaroo.ai']	0	1
cv-retail-edge-observability	2025-06-06 16:57:16	['john.hansarick@wallaroo.ai']	1	1
vllm-openai-test	2025-06-10 16:30:23	['john.hansarick@wallaroo.ai']	0	0
keras-sequential-single-io	2025-07-14 19:50:55	['john.hansarick@wallaroo.ai']	1	1
run-anywhere-assay-demonstration-tutorial	2025-07-15 17:00:02	['john.hansarick@wallaroo.ai']	1	1

workspace = wl.get_workspace(name=workspace_name)

wl.set_current_workspace(workspace)

{'name': 'run-anywhere-assay-demonstration-tutorial', 'id': 12, 'archived': False, 'created_by': '1a819833-f4ef-4298-8065-1785a7014681', 'created_at': '2025-07-15T17:00:02.129494+00:00', 'models': [{'name': 'house-price-estimator', 'versions': 1, 'owner_id': '""', 'last_update_time': datetime.datetime(2025, 7, 15, 17, 0, 2, 856708, tzinfo=tzutc()), 'created_at': datetime.datetime(2025, 7, 15, 17, 0, 2, 856708, tzinfo=tzutc())}], 'pipelines': [{'name': 'assay-demonstration-tutorial', 'create_time': datetime.datetime(2025, 7, 15, 17, 0, 3, 3034, tzinfo=tzutc()), 'definition': '[]'}]}

List Pipeline Edges

The pipeline published in the notebook ““Wallaroo Run Anywhere Model Drift Observability with Assays: Preparation” created two edge locations.

We start by retrieving the pipeline, then verifying the pipeline publishes with the wallaroo.pipeline.publishes() methods.

We then list the edges with the wallaroo.pipeline.list_edges methods. This verifies the names of our edge locations, which are used later in the model drift detection by location methods.

mainpipeline = wl.get_pipeline(main_pipeline_name)

# list the publishes

display(mainpipeline.publishes())

# get the edges

display(mainpipeline.list_edges())

id	Pipeline Name	Pipeline Version	Workspace Id	Workspace Name	Edges	Engine URL	Pipeline URL	Created By	Created At	Updated At
1	assay-demonstration-tutorial	1ff19772-f41f-42fb-b0d1-f82130bf5801	12	run-anywhere-assay-demonstration-tutorial	houseprice-edge-demonstration-01 houseprice-edge-demonstration-02	ghcr.io/wallaroolabs/doc-samples/engines/proxy/wallaroo/ghcr.io/wallaroolabs/fitzroy-mini:v2025.1.0-6250	ghcr.io/wallaroolabs/doc-samples/pipelines/assay-demonstration-tutorial:1ff19772-f41f-42fb-b0d1-f82130bf5801	john.hansarick@wallaroo.ai	2025-15-Jul 17:03:13	2025-15-Jul 17:03:13

ID	Name	Publish ID	Created At	Tags	CPUs	Memory	SPIFFE ID
86990030-680b-4c40-9a79-9b3769ebdd50	houseprice-edge-demonstration-01	1	2025-07-15T17:03:34.182697+00:00	[]	4.0	3Gi	wallaroo.ai/ns/deployments/edge/86990030-680b-4c40-9a79-9b3769ebdd50
f51dc49d-baa9-451e-a93d-424dc7caec8d	houseprice-edge-demonstration-02	1	2025-07-15T17:03:34.321038+00:00	[]	4.0	3Gi	wallaroo.ai/ns/deployments/edge/f51dc49d-baa9-451e-a93d-424dc7caec8d

Historical Data via Edge Inferences Generation

We will perform sample inference on our edge location. This historical inference data is used later in the drift detection by location examples.

For these example, the edge location is on the hostname HOSTNAME. Change this hostname to the host name of your edge deployment.

We will submit two sets of inferences:

A normal set of inferences to generate the baseline, and are unlikely to trigger an assay alert when compared against the baseline. These are run through the location houseprice-edge-01.
A set of inferences that will return large house values that is likely to trigger an assay alert when compared against the baseline. These are run through the location houseprice-edge-02.

Each of these will use the inference endpoint /infer. For more details, see How to Publish and Deploy AI Workloads for For Edge and Multicloud Model Deployments.

assay_baseline_start = datetime.datetime.now(datetime.timezone.utc)

time.sleep(65)

small_houses_inputs = pd.read_json('./data/smallinputs.df.json')
baseline_size = 500

# These inputs will be random samples of small priced houses.  Around 500 is a good number
small_houses = small_houses_inputs.sample(baseline_size, replace=True).reset_index(drop=True)
# small_houses.to_dict(orient="records")
data = small_houses.to_dict(orient="records")

!curl -X POST testboy.lan:8081/infer \
    -H "Content-Type: Content-Type: application/json; format=pandas-records" \
    --data '{json.dumps(data)}' > results01.df.json

assay_baseline_end = datetime.datetime.now(datetime.timezone.utc)

time.sleep(65)

# set the start of the assay window period
assay_window_start = datetime.datetime.now(datetime.timezone.utc)

# generate a set of normal house values
!curl -X POST testboy.lan:8081/infer \
    -H "Content-Type: Content-Type: application/json; format=pandas-records" \
    --data @./data/normal-inputs.df.json > results01.df.json

  % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current
                                 Dload  Upload   Total   Spent    Left  Speed
100  316k  100  246k  100 71506  3042k   862k --:--:-- --:--:-- --:--:-- 3952k
  % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current
                                 Dload  Upload   Total   Spent    Left  Speed
100  590k  100  481k  100  108k  5246k  1184k --:--:-- --:--:-- --:--:-- 6484k

# set of values for the second edge location

time.sleep(65)

# generate a set of normal house values
!curl -X POST testboy.lan:8082/infer \
    -H "Content-Type: application/json; format=pandas-records" \
    --data @./data/normal-inputs.df.json > results02.df.json

time.sleep(65)
# generate a set of large house values that will trigger an assay alert based on our baseline
large_houses_inputs = pd.read_json('./data/biginputs.df.json')
baseline_size = 500

# These inputs will be random samples of small priced houses.  Around 500 is a good number
large_houses = large_houses_inputs.sample(baseline_size, replace=True).reset_index(drop=True)
data = large_houses.to_dict(orient="records")

!curl -X POST testboy.lan:8082/infer \
    -H "Content-Type: Content-Type: application/json; format=pandas-records" \
    --data '{json.dumps(data)}' > results02.df.json

  % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current
                                 Dload  Upload   Total   Spent    Left  Speed
100  589k  100  480k  100  108k  5009k  1133k --:--:-- --:--:-- --:--:-- 6201k
  % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current
                                 Dload  Upload   Total   Spent    Left  Speed
100  319k  100  248k  100 73177  3242k   933k --:--:-- --:--:-- --:--:-- 4206k

mainpipeline.logs()

Warning: There are more logs available. Please set a larger limit or request a file using export_logs.

	time	in.tensor	out.variable	anomaly.count
0	2025-07-15 20:09:09.723	[3.0, 3.25, 4560.0, 13363.0, 1.0, 0.0, 4.0, 3.0, 11.0, 2760.0, 1800.0, 47.6204986572, -122.2139968872, 4060.0, 13362.0, 20.0, 0.0, 0.0]	[2005883.1]	0
1	2025-07-15 20:09:09.723	[4.0, 3.75, 4410.0, 8112.0, 3.0, 0.0, 4.0, 3.0, 11.0, 3570.0, 840.0, 47.5887985229, -122.391998291, 2770.0, 5750.0, 12.0, 0.0, 0.0]	[1967344.1]	0
2	2025-07-15 20:09:09.723	[5.0, 4.25, 4860.0, 9453.0, 1.5, 0.0, 1.0, 5.0, 10.0, 3100.0, 1760.0, 47.6195983887, -122.2860031128, 3150.0, 8557.0, 109.0, 0.0, 0.0]	[1910823.8]	0
3	2025-07-15 20:09:09.723	[3.0, 3.25, 4560.0, 13363.0, 1.0, 0.0, 4.0, 3.0, 11.0, 2760.0, 1800.0, 47.6204986572, -122.2139968872, 4060.0, 13362.0, 20.0, 0.0, 0.0]	[2005883.1]	0
4	2025-07-15 20:09:09.723	[4.0, 4.5, 5770.0, 10050.0, 1.0, 0.0, 3.0, 5.0, 9.0, 3160.0, 2610.0, 47.6769981384, -122.2750015259, 2950.0, 6700.0, 65.0, 0.0, 0.0]	[1689843.2]	0
...	...	...	...	...
95	2025-07-15 20:09:09.723	[4.0, 4.5, 5770.0, 10050.0, 1.0, 0.0, 3.0, 5.0, 9.0, 3160.0, 2610.0, 47.6769981384, -122.2750015259, 2950.0, 6700.0, 65.0, 0.0, 0.0]	[1689843.2]	0
96	2025-07-15 20:09:09.723	[3.0, 3.25, 4560.0, 13363.0, 1.0, 0.0, 4.0, 3.0, 11.0, 2760.0, 1800.0, 47.6204986572, -122.2139968872, 4060.0, 13362.0, 20.0, 0.0, 0.0]	[2005883.1]	0
97	2025-07-15 20:09:09.723	[6.0, 4.0, 5310.0, 12741.0, 2.0, 0.0, 2.0, 3.0, 10.0, 3600.0, 1710.0, 47.5695991516, -122.2129974365, 4190.0, 12632.0, 48.0, 0.0, 0.0]	[2016006.0]	0
98	2025-07-15 20:09:09.723	[4.0, 3.0, 3710.0, 20000.0, 2.0, 0.0, 2.0, 5.0, 10.0, 2760.0, 950.0, 47.6696014404, -122.2610015869, 3970.0, 20000.0, 79.0, 0.0, 0.0]	[1514079.8]	0
99	2025-07-15 20:09:09.723	[5.0, 4.25, 4860.0, 9453.0, 1.5, 0.0, 1.0, 5.0, 10.0, 3100.0, 1760.0, 47.6195983887, -122.2860031128, 3150.0, 8557.0, 109.0, 0.0, 0.0]	[1910823.8]	0

100 rows × 4 columns

Model Insights via the Wallaroo SDK

Assays generated through the Wallaroo SDK can be previewed, configured, and uploaded to the Wallaroo Ops instance. The following is a condensed version of this process. For full details see the Wallaroo SDK Essentials Guide: Assays Management guide.

Model drift detection with assays using the Wallaroo SDK follows this general process.

Define the Baseline: From either historical inference data for a specific model in a pipeline, or from a pre-determine array of data, a baseline is formed.
Assay Preview: Once the baseline is formed, we preview the assay and configure the different options until we have the the best method of detecting environment or model drift.
Create Assay: With the previews and configuration complete, we upload the assay. The assay will perform an analysis on a regular scheduled based on the configuration.
Get Assay Results: Retrieve the analyses and use them to detect model drift and possible sources.
Pause/Resume Assay: Pause or restart an assay as needed.

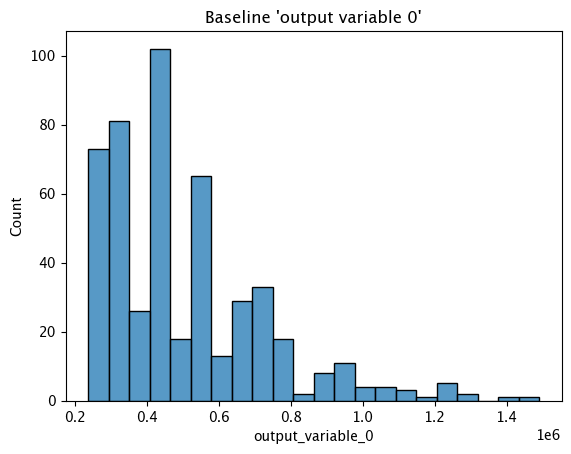

Define the Baseline

Assay baselines are defined with the wallaroo.client.build_assay method. Through this process we define the baseline from either a range of dates or pre-generated values.

wallaroo.client.build_assay take the following parameters:

Parameter	Type	Description
assay_name	String (Required) - required	The name of the assay. Assay names must be unique across the Wallaroo instance.
pipeline	wallaroo.pipeline.Pipeline (Required)	The pipeline the assay is monitoring.
model_name	String (Optional) / `None`	The name of the model to monitor. This field should only be used to track the inputs/outputs for a specific model step in a pipeline. If no `model_name` is to be included, then the parameters must be passed a named parameters not positional ones.
iopath	String (Required)	The iopath of the assay in the format `"input/output {field_name} {field_index}"`, where field_index is required for list values and omitted for scalar values. For example, to monitor the output list field house_price at index 0, the iopath is output house_price 0. For scalar and numpy `nan` support, these data types are only supported in Wallaroo Assay Version V2. For data that are scalar values, no index is passed. For example, the iopath for the input scalar field number_of_houses as an input is `'input number_of_houses'`. For more details of scalar and `nan` support, see Iopath Format and NaN Support.
baseline_start	datetime.datetime (Optional)	The start time for the inferences to use as the baseline. Must be included with `baseline_end`. Cannot be included with `baseline_data`.
baseline_end	datetime.datetime (Optional)	The end time of the baseline window. the baseline. Windows start immediately after the baseline window and are run at regular intervals continuously until the assay is deactivated or deleted. Must be included with `baseline_start`. Cannot be included with `baseline_data`..
baseline_data	numpy.array (Optional)	The baseline data in numpy array format. Cannot be included with either `baseline_start` or `baseline_data`.

Note that model_name is an optional parameters when parameters are named. For example:

assay_builder_from_dates = wl.build_assay(assay_name="assays from date baseline",
                                          pipeline=mainpipeline,
                                          iopath="output variable 0",
                                          baseline_start=assay_baseline_start,
                                          baseline_end=assay_baseline_end)

or:

assay_builder_from_dates = wl.build_assay("assays from date baseline",
                                          mainpipeline,
                                          None, ## since we are using positional parameters, `None` must be included for the model parameter
                                          "output variable 0",
                                          assay_baseline_start,
                                          assay_baseline_end)

Baselines are created in one of two mutually exclusive methods:

Date Range: The baseline_start and baseline_end retrieves the inference requests and results for the pipeline from the start and end period. This data is summarized and used to create the baseline. For our examples, we’re using the variables assay_baseline_start and assay_baseline_end to represent a range of dates, with assay_baseline_start being set before assay_baseline_end.
Numpy Values: The baseline_data sets the baseline from a provided numpy array. This allows assay baselines to be created without first performing inferences in Wallaroo.

Iopath Format

The Input/Output Path (iopath) uses the following format.

Input/Output: Whether the data is input for model, or is model’s output.
Field: The specific field to monitor.
Index: The field index to monitor.
- For Assays V2 only, scalar values are represented by passing no index.

The following shows setting the iopath via the Wallaroo SDK for List values and scalars.

List Scalar (Assays V2 only)

List	Scalar (Assays V2 only)
`assay_builder_for_list = wl.build_assay(assay_name=assay_name, pipeline=mainpipeline, iopath="output variable 0", baseline_start=assay_baseline_start, baseline_end=assay_baseline_end)`	`assay_builder_for_scalar = wl.build_assay(assay_name=assay_name, pipeline=mainpipeline, iopath="output variable", baseline_start=assay_baseline_start, baseline_end=assay_baseline_end)`


assay_builder_for_list = wl.build_assay(assay_name=assay_name,
                                          pipeline=mainpipeline,
                                          iopath="output variable 0",
                                          baseline_start=assay_baseline_start,
                                          baseline_end=assay_baseline_end)


assay_builder_for_scalar = wl.build_assay(assay_name=assay_name,
                                          pipeline=mainpipeline,
                                          iopath="output variable",
                                          baseline_start=assay_baseline_start,
                                          baseline_end=assay_baseline_end)

List: Supported by Wallaroo Assays V1 and V2 and it determined by.
Scalar:

NaN Support

For List(numpy.ndarray) data that includes nan aka “Not a Number” (NaN), nan values are treated in Wallaroo assays as follows:

Visualizations: nan values are not discretely represented in visualizations. These include methods including Analysis Chart.
SDK Calls: nan values in requests and responses are handled as null values. These include the following scenarios:
- Baselines imports.
- Querying baseline data.
- Querying assays results in preview mode.
- Querying assay results after assay upload and analysis.
Baseline metrics: Baseline metrics created from imported values (aka numpy) and date based baselines from the Wallaroo Dashboard and the Wallaroo SDK are treated as follows:
- Baseline stats ignore nan when calculating: mean, median, std dev, min, max.
- Baseline stats include nan when calculating count.
Baseline binning includes nan for:
- Score Metrics of PSI, SUMDIFF and MAXDIFF for both preview aka “interactive run” and post assay upload analysis factor nan values into the window score calculation and the associated binning scheme.
- NaN’s are treated as negative infinity but included in the left most bin.

Baseline Upload with NaN

When uploading baseline data via the Wallaroo Dashboard, verify that the scalar field is set to None and the imported baseline csv nan values must be one of the following:

empty double quotes “”
empty single quotes ‘’
empty values

The following are examples of NaN within baseline imported data.

nan values as empty values. nan represented as double quotes: nan represented as single quotes:

`nan` values as empty values.	`nan` represented as double quotes:	`nan` represented as single quotes:
`0.70193326, 0.47008988, 0.7616768, 0.9431376, 0.50103927, , 0.89329976, , , , 0.58292973, 0.48995697, , 0.9030761, 0.7702084, 0.9390605, 0.8298963, 0.67003745, ,`	`0.70193326, 0.47008988, 0.7616768, 0.9431376, 0.50103927, "", 0.89329976, "", "", "", 0.58292973, 0.48995697, "", 0.9030761, 0.7702084, 0.9390605, 0.8298963, 0.67003745, "", ""`	`0.70193326, 0.47008988, 0.7616768, 0.9431376, 0.50103927, '', 0.89329976, '', '', '', 0.58292973, 0.48995697, '', 0.9030761, 0.7702084, 0.9390605, 0.8298963, 0.67003745, '', ''`

0.70193326,
0.47008988,
0.7616768,
0.9431376,
0.50103927,
,
0.89329976,
,
,
,
0.58292973,
0.48995697,
,
0.9030761,
0.7702084,
0.9390605,
0.8298963,
0.67003745,
,

0.70193326,
0.47008988,
0.7616768,
0.9431376,
0.50103927,
"",
0.89329976,
"",
"",
"",
0.58292973,
0.48995697,
"",
0.9030761,
0.7702084,
0.9390605,
0.8298963,
0.67003745,
"",
""

0.70193326,
0.47008988,
0.7616768,
0.9431376,
0.50103927,
'',
0.89329976,
'',
'',
'',
0.58292973,
0.48995697,
'',
0.9030761,
0.7702084,
0.9390605,
0.8298963,
0.67003745,
'',
''

Define the Baseline by Location Example

This example shows the assay defined from the date ranges from the inferences performed earlier.

By default, all locations are included in the assay location filters. For our example we use wallaroo.assay_config.WindowBuilder.add_location_filter to specify location_01 for our baseline comparison results.

# edge locations

location_01 = "houseprice-edge-demonstration-01"
location_02 = "houseprice-edge-demonstration-02"

# Build the assay, based on the start and end of our baseline time,
# and tracking the output variable index 0

display(assay_baseline_start)
display(assay_baseline_end)

assay_baseline_from_dates = wl.build_assay(assay_name="assays from date baseline",
                                          pipeline=mainpipeline,
                                          iopath="output variable 0",
                                          baseline_start=assay_baseline_start,
                                          baseline_end=assay_baseline_end)

# set the location to the edge location
assay_baseline_from_dates.window_builder().add_location_filter([location_01])

# create the baseline from the dates
assay_baseline_run_from_dates = assay_baseline_from_dates.build().interactive_baseline_run()

datetime.datetime(2025, 7, 15, 20, 4, 47, 902345, tzinfo=datetime.timezone.utc)

datetime.datetime(2025, 7, 15, 20, 5, 53, 416806, tzinfo=datetime.timezone.utc)

Baseline DataFrame

The method wallaroo.assay_config.AssayBuilder.baseline_dataframe returns a DataFrame of the assay baseline generated from the provided parameters. This includes:

metadata: The inference metadata with the model information, inference time, and other related factors.
in data: Each input field assigned with the label in.{input field name}.
out data: Each output field assigned with the label out.{output field name}

Note that for assays generated from numpy values, there is only the out data based on the supplied baseline data.

In the following example, the baseline DataFrame is retrieved. Note that in this example, the partition is set to houseprice-edge-demonstration-01, the location specified when we set the location when creating the baseline.

display(assay_baseline_from_dates.baseline_dataframe())

	time	metadata	input_tensor_0	input_tensor_1	input_tensor_2	input_tensor_3	input_tensor_4	input_tensor_5	input_tensor_6	input_tensor_7	input_tensor_8	input_tensor_9	input_tensor_10	input_tensor_11	input_tensor_12	input_tensor_13	input_tensor_14	input_tensor_15	input_tensor_16	input_tensor_17	output_variable_0
0	1752609953329	{'last_model': '{"model_name":"house-price-estimator","model_sha":"e22a0831aafd9917f3cc87a15ed267797f80e2afa12ad7d8810ca58f173b8cc6"}', 'pipeline_version': '1ff19772-f41f-42fb-b0d1-f82130bf5801', 'elapsed': [3638412, 5155007], 'dropped': [], 'partition': 'houseprice-edge-demonstration-01'}	3.0	2.50	1730.0	7442.0	2.0	0.0	0.0	3.0	7.0	1730.0	0.0	47.350700	-122.178001	1630.0	6458.0	27.0	0.0	0.0	285253.15625
1	1752609953329	{'last_model': '{"model_name":"house-price-estimator","model_sha":"e22a0831aafd9917f3cc87a15ed267797f80e2afa12ad7d8810ca58f173b8cc6"}', 'pipeline_version': '1ff19772-f41f-42fb-b0d1-f82130bf5801', 'elapsed': [3638412, 5155007], 'dropped': [], 'partition': 'houseprice-edge-demonstration-01'}	3.0	1.00	1670.0	4005.0	1.5	0.0	0.0	4.0	7.0	1170.0	500.0	47.687801	-122.379997	1240.0	4005.0	75.0	0.0	0.0	557391.25000
2	1752609953329	{'last_model': '{"model_name":"house-price-estimator","model_sha":"e22a0831aafd9917f3cc87a15ed267797f80e2afa12ad7d8810ca58f173b8cc6"}', 'pipeline_version': '1ff19772-f41f-42fb-b0d1-f82130bf5801', 'elapsed': [3638412, 5155007], 'dropped': [], 'partition': 'houseprice-edge-demonstration-01'}	3.0	1.75	1540.0	9154.0	1.0	0.0	0.0	3.0	8.0	1540.0	0.0	47.620701	-122.042000	1990.0	10273.0	31.0	0.0	0.0	555231.93750
3	1752609953329	{'last_model': '{"model_name":"house-price-estimator","model_sha":"e22a0831aafd9917f3cc87a15ed267797f80e2afa12ad7d8810ca58f173b8cc6"}', 'pipeline_version': '1ff19772-f41f-42fb-b0d1-f82130bf5801', 'elapsed': [3638412, 5155007], 'dropped': [], 'partition': 'houseprice-edge-demonstration-01'}	1.0	1.00	1230.0	3774.0	1.0	0.0	0.0	4.0	6.0	830.0	400.0	47.688599	-122.353996	1300.0	3774.0	90.0	0.0	0.0	448627.71875
4	1752609953329	{'last_model': '{"model_name":"house-price-estimator","model_sha":"e22a0831aafd9917f3cc87a15ed267797f80e2afa12ad7d8810ca58f173b8cc6"}', 'pipeline_version': '1ff19772-f41f-42fb-b0d1-f82130bf5801', 'elapsed': [3638412, 5155007], 'dropped': [], 'partition': 'houseprice-edge-demonstration-01'}	2.0	1.00	930.0	6098.0	1.0	0.0	0.0	4.0	6.0	930.0	0.0	47.528900	-122.029999	1730.0	9000.0	95.0	0.0	0.0	246901.15625
...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...
495	1752609953329	{'last_model': '{"model_name":"house-price-estimator","model_sha":"e22a0831aafd9917f3cc87a15ed267797f80e2afa12ad7d8810ca58f173b8cc6"}', 'pipeline_version': '1ff19772-f41f-42fb-b0d1-f82130bf5801', 'elapsed': [3638412, 5155007], 'dropped': [], 'partition': 'houseprice-edge-demonstration-01'}	4.0	1.50	1800.0	6750.0	1.5	0.0	0.0	4.0	7.0	1800.0	0.0	47.686798	-122.285004	1420.0	5900.0	64.0	0.0	0.0	557391.25000
496	1752609953329	{'last_model': '{"model_name":"house-price-estimator","model_sha":"e22a0831aafd9917f3cc87a15ed267797f80e2afa12ad7d8810ca58f173b8cc6"}', 'pipeline_version': '1ff19772-f41f-42fb-b0d1-f82130bf5801', 'elapsed': [3638412, 5155007], 'dropped': [], 'partition': 'houseprice-edge-demonstration-01'}	5.0	3.50	3450.0	28324.0	1.0	0.0	0.0	5.0	8.0	2350.0	1100.0	47.699100	-122.195999	2640.0	14978.0	42.0	0.0	0.0	782434.43750
497	1752609953329	{'last_model': '{"model_name":"house-price-estimator","model_sha":"e22a0831aafd9917f3cc87a15ed267797f80e2afa12ad7d8810ca58f173b8cc6"}', 'pipeline_version': '1ff19772-f41f-42fb-b0d1-f82130bf5801', 'elapsed': [3638412, 5155007], 'dropped': [], 'partition': 'houseprice-edge-demonstration-01'}	3.0	1.75	2300.0	41900.0	1.0	0.0	0.0	4.0	8.0	1310.0	990.0	47.477001	-122.292000	1160.0	8547.0	76.0	0.0	0.0	430252.40625
498	1752609953329	{'last_model': '{"model_name":"house-price-estimator","model_sha":"e22a0831aafd9917f3cc87a15ed267797f80e2afa12ad7d8810ca58f173b8cc6"}', 'pipeline_version': '1ff19772-f41f-42fb-b0d1-f82130bf5801', 'elapsed': [3638412, 5155007], 'dropped': [], 'partition': 'houseprice-edge-demonstration-01'}	3.0	1.75	1520.0	12282.0	1.0	0.0	0.0	3.0	8.0	1220.0	300.0	47.751598	-122.299004	1860.0	13500.0	36.0	0.0	0.0	424966.46875
499	1752609953329	{'last_model': '{"model_name":"house-price-estimator","model_sha":"e22a0831aafd9917f3cc87a15ed267797f80e2afa12ad7d8810ca58f173b8cc6"}', 'pipeline_version': '1ff19772-f41f-42fb-b0d1-f82130bf5801', 'elapsed': [3638412, 5155007], 'dropped': [], 'partition': 'houseprice-edge-demonstration-01'}	2.0	1.00	1060.0	7868.0	1.0	0.0	0.0	3.0	7.0	1060.0	0.0	47.741402	-122.294998	1530.0	10728.0	63.0	0.0	0.0	340764.53125

500 rows × 21 columns

Baseline Stats

The method wallaroo.assay.AssayAnalysis.baseline_stats() returns a pandas.core.frame.DataFrame of the baseline stats.

The baseline stats are displayed in the sample below.

assay_baseline_run_from_dates.baseline_stats()

	Baseline
count	500
min	236238.65625
max	1489624.5
mean	497609.064031
median	445851.0
std	223975.59375
start	None
end	None

Baseline Bins

The method wallaroo.assay.AssayAnalysis.baseline_bins a simple dataframe to with the edge/bin data for a baseline.

assay_baseline_run_from_dates.baseline_bins()

	b_edges	b_edge_names	b_aggregated_values	b_aggregation
0	305617.46875	< 20%	0.200	Aggregation.DENSITY
1	420370.65625	20% - 40%	0.200	Aggregation.DENSITY
2	466051.34375	40% - 60%	0.200	Aggregation.DENSITY
3	682284.625	60% - 80%	0.208	Aggregation.DENSITY
4	INFINITY	> 80%	0.192	Aggregation.DENSITY

Baseline Histogram Chart

The method wallaroo.assay_config.AssayBuilder.baseline_histogram returns a histogram chart of the assay baseline generated from the provided parameters.

assay_baseline_from_dates.baseline_histogram()

Assay Preview

Now that the baseline is defined, we look at different configuration options and view how the assay baseline and results changes. Once we determine what gives us the best method of determining model drift, we can create the assay.

The following examples show different methods of previewing the assay, then how to configure the assay by collecting data from different locations.

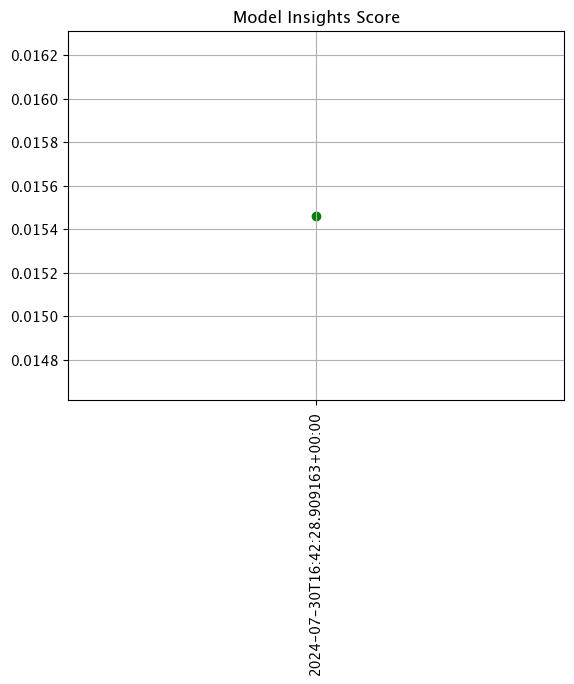

Analysis List Chart Scores

Analysis List scores show the assay scores for each assay result interval in one chart. Values that are outside of the alert threshold are colored red, while scores within the alert threshold are green.

Assay chart scores are displayed with the method wallaroo.assay.AssayAnalysisList.chart_scores(title: Optional[str] = None), with ability to display an optional title with the chart.

The following example shows retrieving the assay results and displaying the chart scores for each window interval for location_01

# Create the assay baseline
assay_baseline = wl.build_assay(assay_name="assays from date baseline",
                                          pipeline=mainpipeline,
                                          iopath="output variable 0",
                                          baseline_start=assay_baseline_start,
                                          baseline_end=assay_baseline_end)

# Set the assay parameters

# set the location to the edge location
assay_baseline.window_builder().add_location_filter([location_01])

# The end date to gather inference results
assay_baseline.add_run_until(datetime.datetime.now())

# Set the interval and window to one minute each, set the start date for gathering inference results
assay_baseline.window_builder().add_width(minutes=1).add_interval(minutes=1).add_start(assay_window_start)

# build the assay configuration
assay_config = assay_baseline.build()

# perform an interactive run and collect inference data
assay_results = assay_config.interactive_run()

# Preview the assay analyses
assay_results.chart_scores()

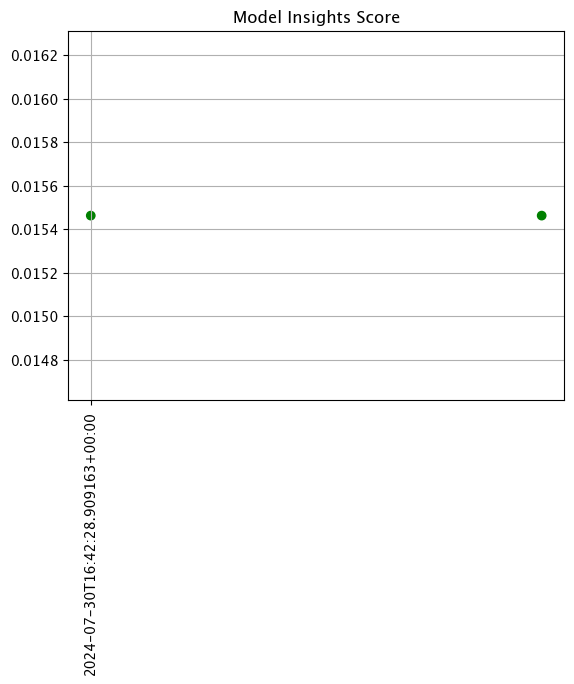

# Create the assay baseline
assay_baseline = wl.build_assay(assay_name="assays from date baseline",
                                          pipeline=mainpipeline,
                                          iopath="output variable 0",
                                          baseline_start=assay_baseline_start,
                                          baseline_end=assay_baseline_end)

# Set the assay parameters

# set the location to the edge location
assay_baseline.window_builder().add_location_filter([location_01, location_02])

# The end date to gather inference results
assay_baseline.add_run_until(datetime.datetime.now())

# Set the interval and window to one minute each, set the start date for gathering inference results
assay_baseline.window_builder().add_width(minutes=1).add_interval(minutes=1).add_start(assay_window_start)

# build the assay configuration
assay_config = assay_baseline.build()

# perform an interactive run and collect inference data
assay_results = assay_config.interactive_run()

# Preview the assay analyses
assay_results.chart_scores()

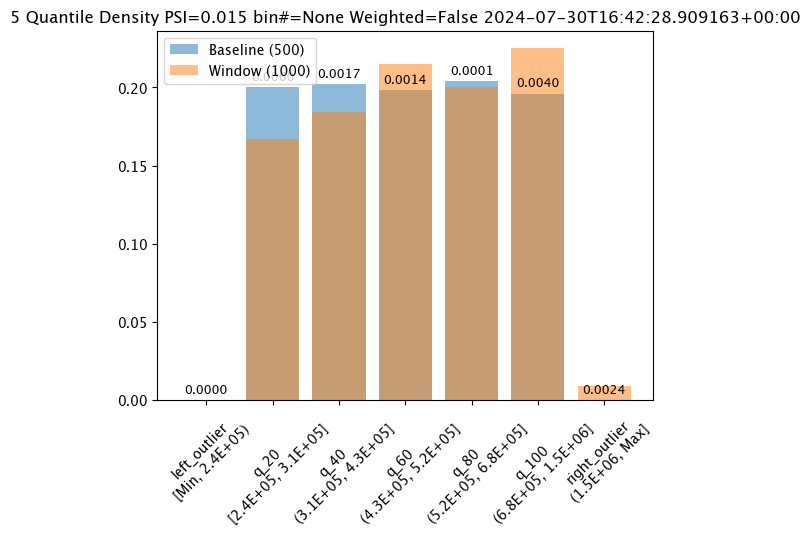

Analysis Chart

The method wallaroo.assay.AssayAnalysis.chart() displays a comparison between the baseline and an interval of inference data.

This is compared to the Chart Scores, which is a list of all of the inference data split into intervals, while the Analysis Chart shows the breakdown of one set of inference data against the baseline.

Score from the Analysis List Chart Scores and each element from the Analysis List DataFrame generates

The following fields are included.

Field	Type	Description
baseline mean	Float	The mean of the baseline values.
window mean	Float	The mean of the window values.
baseline median	Float	The median of the baseline values.
window median	Float	The median of the window values.
bin_mode	String	The binning mode used for the assay.
aggregation	String	The aggregation mode used for the assay.
metric	String	The metric mode used for the assay.
weighted	Bool	Whether the bins were manually weighted.
score	Float	The score from the assay window.
scores	List(Float)	The score from each assay window bin.
index	Integer/None	The window index. Interactive assay runs are `None`.

# Create the assay baseline
assay_baseline = wl.build_assay(assay_name="assays from date baseline",
                                          pipeline=mainpipeline,
                                          iopath="output variable 0",
                                          baseline_start=assay_baseline_start,
                                          baseline_end=assay_baseline_end)

# Set the assay parameters

# set the location to the edge location
assay_baseline.window_builder().add_location_filter([location_01])

# The end date to gather inference results
assay_baseline.add_run_until(datetime.datetime.now())

# Set the interval and window to one minute each, set the start date for gathering inference results
assay_baseline.window_builder().add_width(minutes=1).add_interval(minutes=1).add_start(assay_window_start)

# build the assay configuration
assay_config = assay_baseline.build()

# perform an interactive run and collect inference data
assay_results = assay_config.interactive_run()

# Preview the assay analyses
assay_results[0].chart()

Analysis List DataFrame

wallaroo.assay.AssayAnalysisList.to_dataframe() returns a DataFrame showing the assay results for each window aka individual analysis. This DataFrame contains the following fields:

Field	Type	Description
assay_id	Integer/None	The assay id. Only provided from uploaded and executed assays.
name	String/None	The name of the assay. Only provided from uploaded and executed assays.
iopath	String/None	The iopath of the assay. Only provided from uploaded and executed assays.
score	Float	The assay score.
start	DateTime	The DateTime start of the assay window.
min	Float	The minimum value in the assay window.
max	Float	The maximum value in the assay window.
mean	Float	The mean value in the assay window.
median	Float	The median value in the assay window.
std	Float	The standard deviation value in the assay window.
warning_threshold	Float/None	The warning threshold of the assay window.
alert_threshold	Float/None	The alert threshold of the assay window.
status	String	The assay window status. Values are: `OK`: The score is within accepted thresholds. `Warning`: The score has triggered the `warning_threshold` if exists, but not the `alert_threshold`. `Alert`: The score has triggered the the `alert_threshold`.

For this example, the assay analysis list DataFrame is listed.

From this tutorial, we should have 2 windows of dta to look at, each one minute apart.

# Create the assay baseline
assay_baseline = wl.build_assay(assay_name="assays from date baseline",
                                          pipeline=mainpipeline,
                                          iopath="output variable 0",
                                          baseline_start=assay_baseline_start,
                                          baseline_end=assay_baseline_end)

# Set the assay parameters

# set the location to the edge location
assay_baseline.window_builder().add_location_filter([location_01])

# The end date to gather inference results
assay_baseline.add_run_until(datetime.datetime.now())

# Set the interval and window to one minute each, set the start date for gathering inference results
assay_baseline.window_builder().add_width(minutes=1).add_interval(minutes=1).add_start(assay_window_start)

# build the assay configuration
assay_config = assay_baseline.build()

# perform an interactive run and collect inference data
assay_results = assay_config.interactive_run()

# Preview the assay analyses
assay_results.to_dataframe()

	id	assay_id	assay_name	iopath	pipeline_id	pipeline_name	workspace_id	workspace_name	score	start	min	max	mean	median	std	warning_threshold	alert_threshold	status
0	0	3f478cbf-73da-4f72-aa0e-2fe1e6197ccc	assay-demonstration-tutorial assay	out.variable.0	40	assay-demonstration-tutorial	12	run-anywhere-assay-demonstration-tutorial	0.030046	2025-07-15 20:06:58.424304+00:00	236238.65625	2016006.0	539489.484203	451046.9375	264051.03125	None	0.25	Ok

Configure Assays

Before creating the assay, configure the assay and continue to preview it until the best method for detecting drift is set.

Location Filter

This tutorial focuses on the assay configuration method wallaroo.assay_config.WindowBuilder.add_location_filter.

Location Filter Parameters

add_location_filter takes the following parameters.

Parameter	Type	Description
locations	List(String)	The list of model deployment locations for the assay.

Location Filter Example

By default, the locations parameter includes all locations as part of the pipeline. This is seen in the default where no location filter is set, and of the inference data is shown.

For our examples, we will show different locations and how the assay changes. For the first example, we set the location to location_01 which was used to create the baseline, and included inferences that were likely to not trigger a model drift detection alert.

# Create the assay baseline
assay_baseline = wl.build_assay(assay_name="assays from date baseline",
                                          pipeline=mainpipeline,
                                          iopath="output variable 0",
                                          baseline_start=assay_baseline_start,
                                          baseline_end=assay_baseline_end)

# Set the assay parameters

# set the location to the edge location
assay_baseline.window_builder().add_location_filter([location_01])

# The end date to gather inference results
assay_baseline.add_run_until(datetime.datetime.now())

# Set the interval and window to one minute each, set the start date for gathering inference results
assay_baseline.window_builder().add_width(minutes=1).add_interval(minutes=1).add_start(assay_window_start)

# build the assay configuration
assay_config = assay_baseline.build()

# perform an interactive run and collect inference data
assay_results = assay_config.interactive_run()

# Preview the assay analyses
assay_results.chart_scores()
assay_results.to_dataframe()

	id	assay_id	assay_name	iopath	pipeline_id	pipeline_name	workspace_id	workspace_name	score	start	min	max	mean	median	std	warning_threshold	alert_threshold	status
0	0	e3695ad8-8a79-4462-a424-f5f4c88e536f	assay-demonstration-tutorial assay	out.variable.0	40	assay-demonstration-tutorial	12	run-anywhere-assay-demonstration-tutorial	0.030046	2025-07-15 20:06:58.424304+00:00	236238.65625	2016006.0	539489.484203	451046.9375	264051.03125	None	0.25	Ok

The next example includes location_01 and location_02. Since they were performed in distinct times, the model insights scores for each location is seen in the chart.

# Create the assay baseline
assay_baseline = wl.build_assay(assay_name="assays from date baseline",
                                          pipeline=mainpipeline,
                                          iopath="output variable 0",
                                          baseline_start=assay_baseline_start,
                                          baseline_end=assay_baseline_end)

# Set the assay parameters

# set the location to the edge location
assay_baseline.window_builder().add_location_filter([location_01, location_02])

# The end date to gather inference results
assay_baseline.add_run_until(datetime.datetime.now())

# Set the interval and window to one minute each, set the start date for gathering inference results
assay_baseline.window_builder().add_width(minutes=1).add_interval(minutes=1).add_start(assay_window_start)

# build the assay configuration
assay_config = assay_baseline.build()

# perform an interactive run and collect inference data
assay_results = assay_config.interactive_run()

# Preview the assay analyses
assay_results.chart_scores()
assay_results.to_dataframe()

	assay_id	assay_name	iopath	pipeline_id	pipeline_name	workspace_id	workspace_name	score	start	min	max	mean	median	std	warning_threshold	alert_threshold	status
0	c1211c1a-5cea-46fe-8287-e5cb6801613d	assay-demonstration-tutorial assay	out.variable.0	40	assay-demonstration-tutorial	12	run-anywhere-assay-demonstration-tutorial	0.030046	2025-07-15 20:06:58.424304+00:00	2.362387e+05	2016006.0	5.394895e+05	4.510469e+05	264051.03125	None	0.25	Ok
1	c1211c1a-5cea-46fe-8287-e5cb6801613d	assay-demonstration-tutorial assay	out.variable.0	40	assay-demonstration-tutorial	12	run-anywhere-assay-demonstration-tutorial	0.030046	2025-07-15 20:07:58.424304+00:00	2.362387e+05	2016006.0	5.394895e+05	4.510469e+05	264051.03125	None	0.25	Ok
2	c1211c1a-5cea-46fe-8287-e5cb6801613d	assay-demonstration-tutorial assay	out.variable.0	40	assay-demonstration-tutorial	12	run-anywhere-assay-demonstration-tutorial	4.248209	2025-07-15 20:08:58.424304+00:00	1.514080e+06	2016006.0	1.871636e+06	1.946437e+06	163849.53125	None	0.25	Alert

Create Assay

With the assay previewed and configuration options determined, we officially create it by uploading it to the Wallaroo instance.

Once it is uploaded, the assay runs an analysis based on the window width, interval, and the other settings configured.

Assays are uploaded with the wallaroo.assay_config.upload() method. This uploads the assay into the Wallaroo database with the configurations applied and returns the assay id. Note that assay names must be unique across the Wallaroo instance; attempting to upload an assay with the same name as an existing one will return an error.

wallaroo.assay_config.upload() returns the assay id for the assay.

Typically we would just call wallaroo.assay_config.upload() after configuring the assay. For the example below, we will perform the complete configuration in one window to show all of the configuration steps at once before creating the assay, and narrow the locations to location_01 and location_02. By default, all locations associated with a pipeline are included in the assay results unless the add_location_filter method is applied to specify location(s).

# Create the assay baseline
assay_baseline = wl.build_assay(assay_name="assays from date baseline",
                                          pipeline=mainpipeline,
                                          iopath="output variable 0",
                                          baseline_start=assay_baseline_start,
                                          baseline_end=assay_baseline_end)

# Set the assay parameters

# set the location to the edge location
assay_baseline.window_builder().add_location_filter([location_01, location_02])

# The end date to gather inference results
assay_baseline.add_run_until(datetime.datetime.now())

# Set the interval and window to one minute each, set the start date for gathering inference results
assay_baseline.window_builder().add_width(minutes=1).add_interval(minutes=1).add_start(assay_window_start)

assay_id = assay_baseline.upload()

The assay is now visible through the Wallaroo UI by selecting the workspace, then the pipeline, then Insights. The following is an example of another assay in the Wallaroo Dashboard.

Get Assay Info

Assay information is retrieved with the wallaroo.client.get_assay_info() which takes the following parameters.

Parameter	Type	Description
assay_id	Integer (Required)	The numerical id of the assay.

This returns the following:

Parameter	Type	Description
id	Integer	The numerical id of the assay.
name	String	The name of the assay.
active	Boolean	`True`: The assay is active and generates analyses based on its configuration. `False`: The assay is disabled and will not generate new analyses.
pipeline_name	String	The name of the pipeline the assay references.
last_run	DateTime	The date and time the assay last ran.
next_run	DateTime	THe date and time the assay analysis will next run.
alert_threshold	Float	The alert threshold setting for the assay.
baseline	Dict	The baseline and settings as set from the assay configuration.
iopath	String	The `iopath` setting for the assay.
metric	String	The `metric` setting for the assay.
num_bins	Integer	The number of bins for the assay.
bin_weights	List/None	The bin weights used if any.
bin_mode	String	The binning mode used.

display(wl.get_assay_info(assay_id))

Field	Value
ID	bdf36039-d2ed-4455-8653-803d22554bd5
Name	assays from date baseline
Active	True
Pipeline	assay-demonstration-tutorial
Workspace ID	12
Workspace Name	run-anywhere-assay-demonstration-tutorial
Monitoring	['out.variable.0']
Window Width	60 seconds
First Run	2025-15-Jul 20:07:58
End Run	2025-15-Jul 20:26:33
Run Frequency	1 Minute
Bin Mode	5 Quantile bins
Aggregation	Density
Metric	PSI
Last Run	2025-15-Jul 20:25:58
Next Run	2025-15-Jul 20:26:58
Created At	2025-15-Jul 20:26:34
Updated At	2025-15-Jul 20:26:34

To wrap up the tutorial, we’ll disable the assay to save resources.

wl.set_assay_active(assay_id=assay_id, active=False)
