Computer Vision Yolov8n Pipeline Edge Publish

A demonstration of publishing an a Computer Vision healthcare model through Wallaroo on edge devices.

The following tutorial is available on the Wallaroo Github Repository.

Computer Vision Yolov8n Pipeline Edge Publish

The Yolov8 computer vision model is used for fast recognition of objects in images. This tutorial demonstrates how to deploy a Yolov8n pre-trained model into a Wallaroo Ops server and perform inferences on it.

Wallaroo Ops Center provides the ability to publish Wallaroo pipelines to an Open Continer Initative (OCI) compliant registry, then deploy those pipelines on edge devices as Docker container or Kubernetes pods. See Wallaroo SDK Essentials Guide: Pipeline Edge Publication for full details.

For this tutorial, the helper module CVDemoUtils and WallarooUtils are used to transform a sample image into a pandas DataFrame. This DataFrame is then submitted to the Yolov8n model deployed in Wallaroo.

This demonstration follows these steps:

  • In Wallaroo Ops:
    • Upload the Yolo8 model to Wallaroo Ops
    • Add the Yolo8 model as a Wallaroo pipeline step
    • Deploy the Wallaroo pipeline and allocate cluster resources to the pipeline
    • Perform sample inferences
    • Undeploy and return the resources to the cluster.
    • Publish the pipeline to the OCI registry configured in the Wallaroo Ops server.

Upon completion, the follow up tutorial Computer Vision Yolov8n Pipeline Deploy in Wallaroo shows how to deploy this publish and perform sample inferences on an edge/multi-cloud device.

References

  • Wallaroo Workspaces: Workspaces are environments were users upload models, create pipelines and other artifacts. The workspace should be considered the fundamental area where work is done. Workspaces are shared with other users to give them access to the same models, pipelines, etc.
  • Wallaroo Model Upload and Registration: ML Models are uploaded to Wallaroo through the SDK or the MLOps API to a workspace. ML models include default runtimes (ONNX, Python Step, and TensorFlow) that are run directly through the Wallaroo engine, and containerized runtimes (Hugging Face, PyTorch, etc) that are run through in a container through the Wallaroo engine.
  • Wallaroo Pipelines: Pipelines are used to deploy models for inferencing. Each model is a pipeline step in a pipelines, where the inputs of the previous step are fed into the next. Pipeline steps can be ML models, Python scripts, or Custom Model (these contain necessary models and artifacts for running a model).
  • Wallaroo SDK Essentials Guide: Pipeline Edge Publication: Details on publishing a Wallaroo pipeline to an OCI Registry and deploying it as a Wallaroo Server instance.

Data Scientist Steps

The following details the steps a Data Scientist performs in uploading and verifying the model in a Wallaroo Ops server.

Load Libraries

The first step is loading the required libraries including the Wallaroo Python module.

# Import Wallaroo Python SDK
import wallaroo
from wallaroo.object import EntityNotFoundError
from wallaroo.framework import Framework
from CVDemoUtils import CVDemo
from WallarooUtils import Util
cvDemo = CVDemo()
util = Util()

# used to display DataFrame information without truncating
from IPython.display import display
import pandas as pd
pd.set_option('display.max_colwidth', None)
pd.set_option('display.max_columns', None)

Connect to the Wallaroo Instance through the User Interface

The next step is to connect to Wallaroo through the Wallaroo client. The Python library is included in the Wallaroo install and available through the Jupyter Hub interface provided with your Wallaroo environment.

This is accomplished using the wallaroo.Client() command, which provides a URL to grant the SDK permission to your specific Wallaroo environment. When displayed, enter the URL into a browser and confirm permissions. Store the connection into a variable that can be referenced later.

If logging into the Wallaroo instance through the internal JupyterHub service, use wl = wallaroo.Client(). For more information on Wallaroo Client settings, see the Client Connection guide.

wl = wallaroo.Client()

Create a New Workspace

We’ll use the SDK below to create our workspace , assign as our current workspace, then display all of the workspaces we have at the moment. We’ll also set up variables for our models and pipelines down the road, so we have one spot to change names to whatever fits your organization’s standards best.

To allow this tutorial to be run by multiple users in the same Wallaroo instance, a random 4 character prefix will be added to the workspace, pipeline, and model. Feel free to set suffix='' if this is not required.

model_name = 'yolov8n'
model_filename = './models/yolov8n.onnx'
pipeline_name = 'yolo8demonstration'
workspace_name = f'yolo8-edge-demonstration'
workspace = wl.get_workspace(name=workspace_name, create_if_not_exist=True)
wl.set_current_workspace(workspace)
{'name': 'yolo8-edge-demonstration', 'id': 14, 'archived': False, 'created_by': 'ea2c3caf-86e1-4501-ad82-c8a09d518bf1', 'created_at': '2025-04-29T20:04:41.381796+00:00', 'models': [], 'pipelines': []}

Upload the Model

When a model is uploaded to a Wallaroo cluster, it is optimized and packaged to make it ready to run as part of a pipeline. In many times, the Wallaroo Server can natively run a model without any Python overhead. In other cases, such as a Python script, a custom Python environment will be automatically generated. This is comparable to the process of “containerizing” a model by adding a small HTTP server and other wrapping around it.

Our pretrained model is in ONNX format, which is specified in the framework parameter. For this model, the tensor fields are set to images to match the input parameters, and the batch configuration is set to single - only one record will be submitted at a time.

# Upload Retrained Yolo8 Model
yolov8_model = (wl.upload_model(model_name,
                               model_filename,
                               framework=Framework.ONNX)
                               .configure(tensor_fields=['images'],
                                          batch_config="single"
                                          )
                )

Pipeline Deployment Configuration

For our pipeline we set the deployment configuration to only use 1 cpu and 1 GiB of RAM.

deployment_config = wallaroo.DeploymentConfigBuilder() \
                    .replica_count(1) \
                    .cpus(1) \
                    .memory("1Gi") \
                    .build()

Build and Deploy the Pipeline

Now we build our pipeline and set our Yolo8 model as a pipeline step, then deploy the pipeline using the deployment configuration above.

pipeline = wl.build_pipeline(pipeline_name) \
            .add_model_step(yolov8_model)
pipeline.deploy(deployment_config=deployment_config,
                wait_for_status=False)
Deployment initiated for yolo8demonstration. Please check pipeline status.
nameyolo8demonstration
created2025-04-29 20:04:44.690542+00:00
last_updated2025-04-29 20:09:17.002958+00:00
deployedTrue
workspace_id14
workspace_nameyolo8-edge-demonstration
archx86
accelnone
tags
versions51a432c0-b785-42ce-abeb-19424fccd6f4, b3a05b11-9ee2-489c-ac53-8429311aaff2, fd2913bd-6242-413a-a6a8-6be40cb605ab
stepsyolov8n
publishedFalse
# wait for the pipeline status = Running
import time
time.sleep(15)

while pipeline.status()['status'] != 'Running':
    time.sleep(15)
    print("Waiting for deployment.")
    print(pipeline.status()['status'])
print(pipeline.status()['status'])
Running

Convert Image to DataFrame

The sample image dogbike.png was converted to a DataFrame using the cvDemo helper modules. The converted DataFrame is stored as ./data/dogbike.df.json to save time.

The code sample below demonstrates how to use this module to convert the sample image to a DataFrame.

# convert the image to a tensor

width, height = 640, 640
tensor1, resizedImage1 = cvDemo.loadImageAndResize('dogbike.png', width, height)
tensor1.flatten()

# add the tensor to a DataFrame and save the DataFrame in pandas record format
df = util.convert_data(tensor1,'images')
df.to_json("data.json", orient = 'records')

Inference Request

We submit the DataFrame to the pipeline using wallaroo.pipeline.infer, and store the results in the variable inf1. A copy of the dataframe is stored in the file ./data/dogbike.df.json.

width, height = 640, 480
tensor1, resizedImage1 = cvDemo.loadImageAndResize('./data/dogbike.png', width, height)

inf1 = pipeline.infer_from_file('./data/dogbike.df.json')

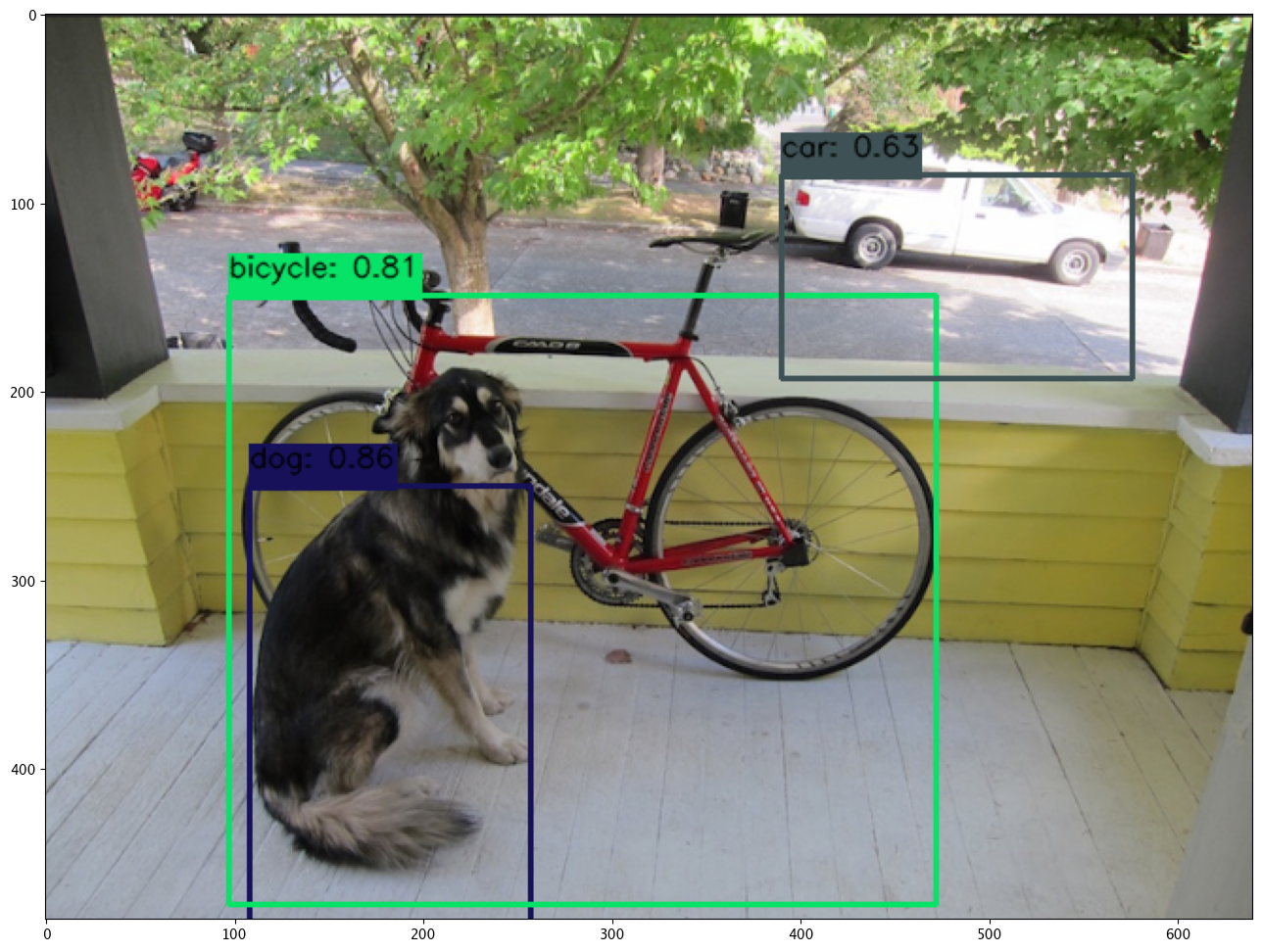

Display Bounding Boxes

Using our helper method cvDemo we’ll identify the objects detected in the photo and their bounding boxes. Only objects with a confidence threshold of 50% or more are shown.

confidence_thres = 0.50
iou_thres = 0.25

cvDemo.drawYolo8Boxes(inf1, resizedImage1, width, height, confidence_thres, iou_thres, draw=True)
Creating new Ultralytics Settings v0.0.6 file ✅
View Ultralytics Settings with 'yolo settings' or at '/Users/johnhansarick/Library/Application Support/Ultralytics/settings.json'
Update Settings with 'yolo settings key=value', i.e. 'yolo settings runs_dir=path/to/dir'. For help see https://docs.ultralytics.com/quickstart/#ultralytics-settings.
  Score: 86.47% | Class: Dog | Bounding Box: [108, 250, 149, 356]
  Score: 81.13% | Class: Bicycle | Bounding Box: [97, 149, 375, 323]
  Score: 63.17% | Class: Car | Bounding Box: [390, 85, 186, 108]
array([[[ 34,  34,  34],
        [ 35,  35,  35],
        [ 33,  33,  33],
        ...,
        [ 33,  33,  33],
        [ 33,  33,  33],
        [ 35,  35,  35]],

       [[ 41,  41,  39],
        [ 42,  42,  40],
        [ 42,  42,  40],
        ...,
        [ 81,  91,  64],
        [ 80,  92,  63],
        [ 83,  90,  59]],

       [[ 59,  61,  53],
        [ 61,  62,  54],
        [ 61,  62,  54],
        ...,
        [193, 228, 136],
        [195, 236, 136],
        [203, 224, 122]],

       ...,

       [[159, 167, 178],
        [160, 166, 178],
        [160, 165, 177],
        ...,
        [126, 127, 121],
        [126, 125, 120],
        [127, 121, 117]],

       [[160, 168, 179],
        [157, 163, 175],
        [154, 159, 171],
        ...,
        [126, 127, 121],
        [128, 126, 121],
        [127, 119, 116]],

       [[156, 164, 175],
        [155, 162, 174],
        [152, 158, 170],
        ...,
        [127, 127, 121],
        [130, 126, 122],
        [128, 119, 116]]], dtype=uint8)

Inference Through Pipeline API

Another method of performing an inference using the pipeline’s deployment url.

Performing an inference through an API requires the following:

  • The authentication token to authorize the connection to the pipeline.
  • The pipeline’s inference URL.
  • Inference data to sent to the pipeline - in JSON, DataFrame records format, or Apache Arrow.

Full details are available through the Wallaroo API Connection Guide on how retrieve an authorization token and perform inferences through the pipeline’s API.

For this demonstration we’ll submit the pandas record, request a pandas record as the return, and set the authorization header. The results will be stored in the file curl_response.df.

deploy_url = pipeline._deployment._url()

headers = wl.auth.auth_header()

headers['Content-Type']='application/json; format=pandas-records'
headers['Accept']='application/json; format=pandas-records'
!curl -X POST {deploy_url} \
    -H "Authorization:{headers['Authorization']}" \
    -H "Content-Type:application/json; format=pandas-records" \
    -H "Accept:application/json; format=pandas-records" \
    --data @./data/dogbike.df.json > curl_response.df
  % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current
                                 Dload  Upload   Total   Spent    Left  Speed
100 38.0M  100 22.9M  100 15.0M  3013k  1983k  0:00:07  0:00:07 --:--:-- 4405k
pipeline.undeploy()
nameyolo8demonstration
created2025-04-29 20:04:44.690542+00:00
last_updated2025-04-29 20:09:17.002958+00:00
deployedFalse
workspace_id14
workspace_nameyolo8-edge-demonstration
archx86
accelnone
tags
versions51a432c0-b785-42ce-abeb-19424fccd6f4, b3a05b11-9ee2-489c-ac53-8429311aaff2, fd2913bd-6242-413a-a6a8-6be40cb605ab
stepsyolov8n
publishedFalse

Publish the Pipeline for Edge Deployment

It worked! For a demo, we’ll take working once as “tested”. So now that we’ve tested our pipeline, we are ready to publish it for edge deployment.

Publishing it means assembling all of the configuration files and model assets and pushing them to an Open Container Initiative (OCI) repository set in the Wallaroo instance as the Edge Registry service. DevOps engineers then retrieve that image and deploy it through Docker, Kubernetes, or similar deployments.

See Edge Deployment Registry Guide for details on adding an OCI Registry Service to Wallaroo as the Edge Deployment Registry.

This is done through the SDK command wallaroo.pipeline.publish(deployment_config) which has the following parameters and returns.

Publish a Pipeline Parameters

The publish method takes the following parameters. The containerized pipeline will be pushed to the Edge registry service with the model, pipeline configurations, and other artifacts needed to deploy the pipeline.

ParameterTypeDescription
deployment_configwallaroo.deployment_config.DeploymentConfig (Optional)Sets the pipeline deployment configuration. For example: For more information on pipeline deployment configuration, see the Wallaroo SDK Essentials Guide: Pipeline Deployment Configuration.

Publish a Pipeline Returns

FieldTypeDescription
idintegerNumerical Wallaroo id of the published pipeline.
pipeline version idintegerNumerical Wallaroo id of the pipeline version published.
statusstringThe status of the pipeline publication. Values include:
  • PendingPublish: The pipeline publication is about to be uploaded or is in the process of being uploaded.
  • Published: The pipeline is published and ready for use.
Engine URLstringThe URL of the published pipeline engine in the edge registry.
Pipeline URLstringThe URL of the published pipeline in the edge registry.
Helm Chart URLstringThe URL of the helm chart for the published pipeline in the edge registry.
Helm Chart ReferencestringThe help chart reference.
Helm Chart VersionstringThe version of the Helm Chart of the published pipeline. This is also used as the Docker tag.
Engine Configwallaroo.deployment_config.DeploymentConfigThe pipeline configuration included with the published pipeline.
Created AtDateTimeWhen the published pipeline was created.
Updated AtDateTimeWhen the published pipeline was updated.

Publish Example

We will now publish the pipeline to our Edge Deployment Registry with the pipeline.publish(deployment_config) command. deployment_config is an optional field that specifies the pipeline deployment. This can be overridden by the DevOps engineer during deployment.

pub = pipeline.publish(deployment_config)
pub
Waiting for pipeline publish... It may take up to 600 sec.
Pipeline is publishing..... Published.
ID2
Pipeline Nameyolo8demonstration
Pipeline Version960dc42c-2aaf-4b18-81b1-4d2a8027eb75
StatusPublished
Engine URLghcr.io/wallaroolabs/doc-samples/engines/proxy/wallaroo/ghcr.io/wallaroolabs/fitzroy-mini:v2024.4.0-6077
Pipeline URLghcr.io/wallaroolabs/doc-samples/pipelines/yolo8demonstration:960dc42c-2aaf-4b18-81b1-4d2a8027eb75
Helm Chart URLoci://ghcr.io/wallaroolabs/doc-samples/charts/yolo8demonstration
Helm Chart Referenceghcr.io/wallaroolabs/doc-samples/charts@sha256:0b4d4dd37daed6628f03ea4d618bf5ae1538f8531ccd86522b141385c2a0e869
Helm Chart Version0.0.1-960dc42c-2aaf-4b18-81b1-4d2a8027eb75
Engine Config{'engine': {'resources': {'limits': {'cpu': 1.0, 'memory': '1Gi'}, 'requests': {'cpu': 1.0, 'memory': '1Gi'}, 'accel': 'none', 'arch': 'x86', 'gpu': False}}, 'engineAux': {'autoscale': {'type': 'none'}, 'images': {}}}
User Images[]
Created Byjohn.hansarick@wallaroo.ai
Created At2025-04-29 20:11:29.045179+00:00
Updated At2025-04-29 20:11:29.045179+00:00
Replaces
Docker Run Command
docker run \
    -p $EDGE_PORT:8080 \
    -e OCI_USERNAME=$OCI_USERNAME \
    -e OCI_PASSWORD=$OCI_PASSWORD \
    -e PIPELINE_URL=ghcr.io/wallaroolabs/doc-samples/pipelines/yolo8demonstration:960dc42c-2aaf-4b18-81b1-4d2a8027eb75 \
    -e CONFIG_CPUS=1.0 --cpus=1.0 --memory=1g \
    ghcr.io/wallaroolabs/doc-samples/engines/proxy/wallaroo/ghcr.io/wallaroolabs/fitzroy-mini:v2024.4.0-6077

Note: Please set the EDGE_PORT, OCI_USERNAME, and OCI_PASSWORD environment variables.
Helm Install Command
helm install --atomic $HELM_INSTALL_NAME \
    oci://ghcr.io/wallaroolabs/doc-samples/charts/yolo8demonstration \
    --namespace $HELM_INSTALL_NAMESPACE \
    --version 0.0.1-960dc42c-2aaf-4b18-81b1-4d2a8027eb75 \
    --set ociRegistry.username=$OCI_USERNAME \
    --set ociRegistry.password=$OCI_PASSWORD

Note: Please set the HELM_INSTALL_NAME, HELM_INSTALL_NAMESPACE, OCI_USERNAME, and OCI_PASSWORD environment variables.

List Published Pipeline

The method wallaroo.client.list_pipelines() shows a list of all pipelines in the Wallaroo instance, and includes the published field that indicates whether the pipeline was published to the registry (True), or has not yet been published (False).

wl.list_pipelines()
namecreatedlast_updateddeployedworkspace_idworkspace_namearchacceltagsversionsstepspublished
rental-forecast-workshop-sample2025-09-Apr 16:31:192025-09-Apr 16:54:54False8forecast-sample-last-testx86nonea22cdf51-0124-4f94-92fe-137a2e3106ee, 05e0e413-9822-410b-9b24-f89f95902df0, 4f78a719-eed5-45c3-8f02-478fe1a8fda1, 9b610019-f78e-431d-a9e3-63dcdfbd9c1a, 4591de52-8b54-4b54-a5e8-51427ccf19edreservations-xgboostFalse
assay-demonstration-tutorial2025-09-Apr 18:53:482025-09-Apr 18:54:02False10assay-demonstration-tutorial-2x86none26d00f1e-1cd4-42b0-a994-c8a0a16888e7, 1b07cff9-5e9f-4e6d-b094-64df04e5f4f0, 24a506d9-e8af-49a4-8a80-6b637da6853a, 5363559e-f5be-46fc-b275-915ee00d4e78house-price-estimatorFalse
assay-demonstration-tutorial2025-09-Apr 16:06:072025-10-Apr 20:48:36False7assay-demonstration-tutorialx86none53bd5246-cce7-492e-add4-337e639c9176, d356bf98-3d55-4b96-b1fe-da2044ce4dd8, 2b0eb1a9-33b6-4403-aa68-f34ba072163d, ddae3a00-13c8-469b-bda7-6a25ae089166, 64fe4837-7311-4651-b8f9-67cbfdc8a70f, 9ffe4dc5-4078-4864-b6f1-6dd3fe4f1429house-price-estimatorFalse
pt-unet2025-29-Apr 18:37:282025-29-Apr 18:51:28False13unet-detection-run-anywhere-demonstrationx86none18a2e65e-d600-471f-80fe-6b60030f9dda, a32cfc3f-9811-4347-9adb-39b99b84ef14, d47c0dbb-366a-4cee-894f-73d3cb0cb9a0pt-unetTrue
vgg16-clustering-pipeline2025-29-Apr 18:04:022025-29-Apr 18:58:46False12vgg16-clustering-workspacex86noned23d2980-4bf9-4aaf-9512-c9a1df83373d, 18ee0c91-fea3-48e1-8e66-2d3baf158d36, 570cc651-6635-4d05-b334-45702869d333, f033992b-02f1-4ee9-9f83-4bb3d08502a9, 9bff7dd7-48ca-4f4e-996f-4f5f1911d01d, f80de3ca-c847-4dca-bcfe-8dfa22fa4093, 83fcb6c4-8c46-40b6-9162-5a6d0f8b337c, a4260dda-8432-492a-9932-f2a8ec60dd2b, a04ff64c-11f1-4c23-a3d1-80ad20f874d4, 52a75b1b-fcfe-44be-b2f2-bdc2665966ef, b77de86a-2b48-4669-9570-b78f198ba19avgg16-clusteringFalse
yolo8demonstration2025-29-Apr 20:04:442025-29-Apr 20:11:27False14yolo8-edge-demonstrationx86none960dc42c-2aaf-4b18-81b1-4d2a8027eb75, 51a432c0-b785-42ce-abeb-19424fccd6f4, b3a05b11-9ee2-489c-ac53-8429311aaff2, fd2913bd-6242-413a-a6a8-6be40cb605abyolov8nTrue

List Publishes from a Pipeline

All publishes created from a pipeline are displayed with the wallaroo.pipeline.publishes method. The pipeline_version_id is used to know what version of the pipeline was used in that specific publish. This allows for pipelines to be updated over time, and newer versions to be sent and tracked to the Edge Deployment Registry service.

List Publishes Parameters

N/A

List Publishes Returns

A List of the following fields:

FieldTypeDescription
idintegerNumerical Wallaroo id of the published pipeline.
pipeline_version_idintegerNumerical Wallaroo id of the pipeline version published.
engine_urlstringThe URL of the published pipeline engine in the edge registry.
pipeline_urlstringThe URL of the published pipeline in the edge registry.
created_bystringThe email address of the user that published the pipeline.
Created AtDateTimeWhen the published pipeline was created.
Updated AtDateTimeWhen the published pipeline was updated.
pipeline.publishes()
idpipeline_version_nameengine_urlpipeline_urlcreated_bycreated_atupdated_at
2960dc42c-2aaf-4b18-81b1-4d2a8027eb75ghcr.io/wallaroolabs/doc-samples/engines/proxy/wallaroo/ghcr.io/wallaroolabs/fitzroy-mini:v2024.4.0-6077ghcr.io/wallaroolabs/doc-samples/pipelines/yolo8demonstration:960dc42c-2aaf-4b18-81b1-4d2a8027eb75john.hansarick@wallaroo.ai2025-29-Apr 20:11:292025-29-Apr 20:11:29

Upon completion, the follow up tutorial Computer Vision Yolov8n Pipeline Deploy in Wallaroo shows how to deploy this publish and perform sample inferences on an edge/multi-cloud device.
