Model Publish for Edge and Multicloud Deployment via the Wallaroo Dashboard

Wallaroo pipeline publications are managed through the Wallaroo Dashboard Pipeline pages. This requires that Edge Deployment Registry is enabled.

Wallaroo pipelines are published as containers to OCI registries, and are referred to as publishes.

Access Wallaroo Pipeline Publishes

To view the publishes for a specific pipeline through the Wallaroo Dashboard:

1. Login to the Wallaroo Dashboard through your browser.
2. From the Workspace select menu on the upper left, select the workspace the pipeline is associated in.
3. Select the pipeline to view the Pipeline Versions, which contain the Pipeline Publishes for each Pipeline Versions.

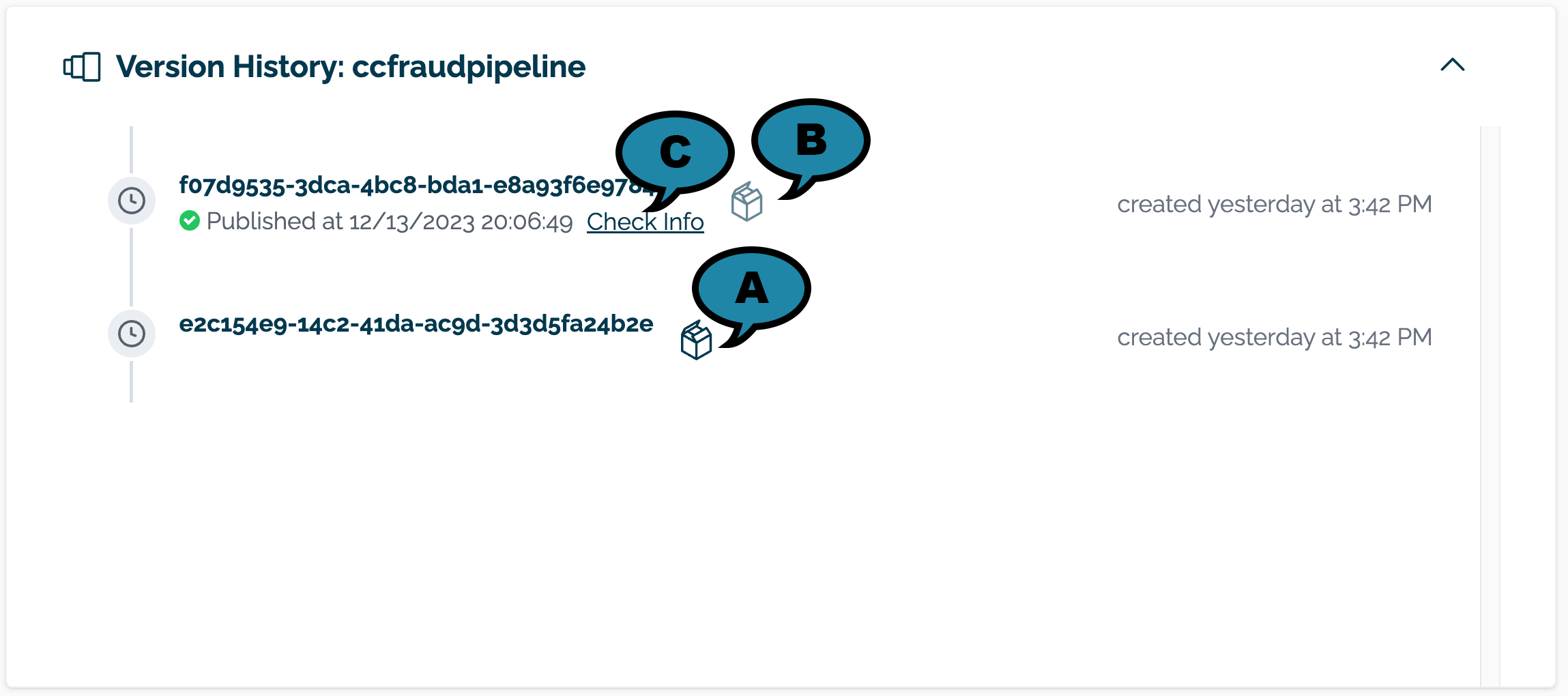

4. The list of pipeline versions are available in the Version History section.

   1. Unpublished versions are indicated with a black box (A) to the right of the pipeline version. Published pipelines are indicated with a gray box. (B). Publish details are visible by selecting Check Info (C).

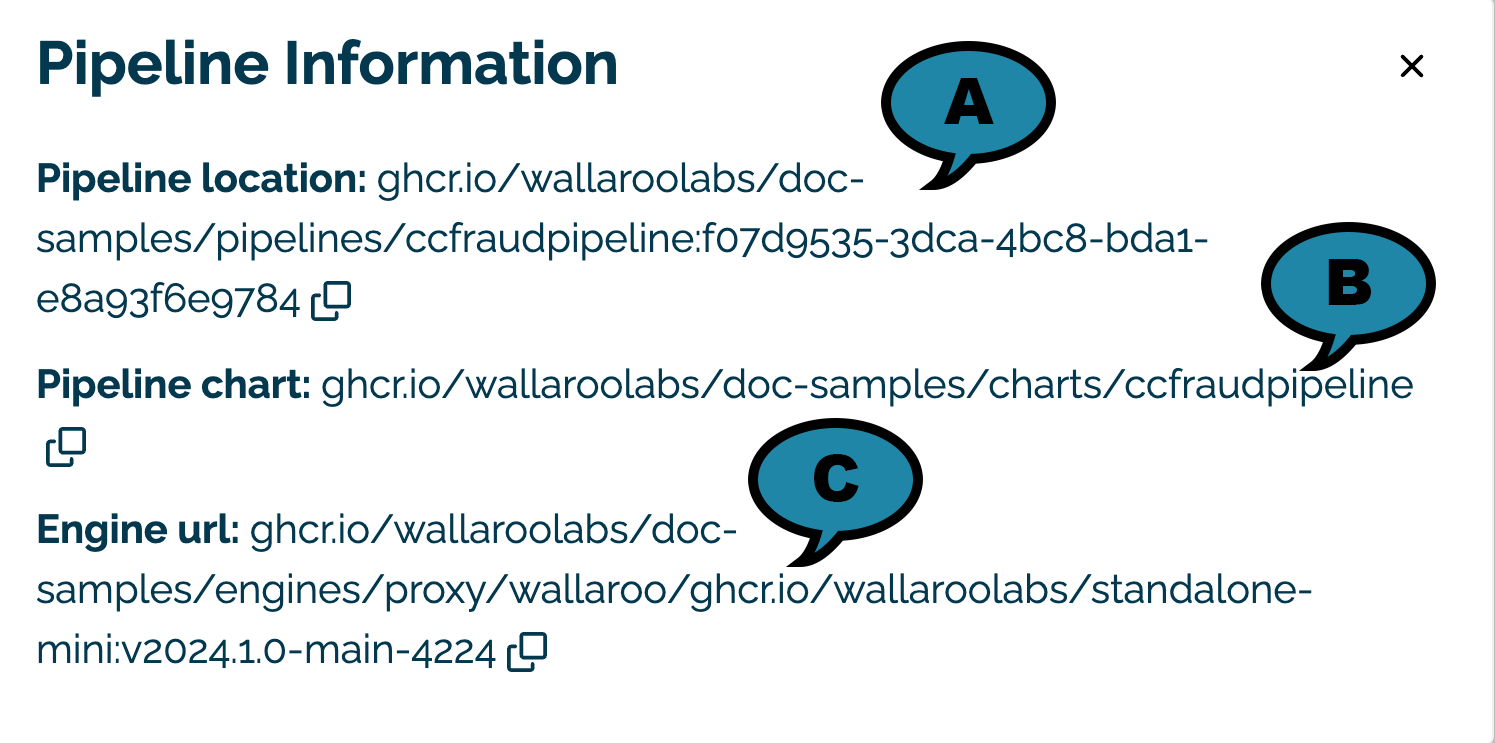

   2. Select Check Info to view pipeline details.



      • Pipeline location (A): The URL for the containerized pipeline.
      • PIpeline Chart (B): The URL for the Helm chart of the published pipeline and engine.
      • Engine url (B): The URL for the Wallaroo Engine required to deploy the pipeline and perform inference requests.

Publish a Wallaroo Pipeline Version

To publish a version of the Wallaroo pipeline:

From the Pipeline Versions view:

1. Select the black box to the right of a Pipeline Version identifier. Grey boxes indicate that the pipeline version is already published.
2. Wait for the publish to complete. Depending on the number and size of the pipeline steps in the pipeline version, this may take anywhere from 1 to 10 minutes.

Publish a Pipeline to the Edge Registry Service

See also the reference documentation: wallaroo.pipeline.publish.

Publish a Pipeline

Pipelines are published as images to the edge registry set in the Enable Wallaroo Edge Registry with the wallaroo.pipeline.Pipeline.publish method.

When a pipeline is published, the containerized pipeline with its models, and the inference engine for the architecture and acceleration uploaded to the OCI registry. Once published, the publish is deployed on edge locations either with Docker or helm based deployments. See DevOps - Pipeline Edge Deployment for more details.

Publish a Pipeline Parameters

The wallaroo.pipeline.Pipeline.publish method takes the following parameters. The containerized pipeline will be pushed to the Edge registry service with the model, pipeline configurations, and other artifacts needed to deploy the pipeline.

Publish a Pipeline Returns

The following parameters are returned when a pipeline is published. The following shows the PipelinePublish object details returned.

When a publish is displayed using IPython.display, the following fields are generated. Some are generated from the fields above to make deployment easier for end users.

Publish a Pipeline Example

The following example shows how to publish a pipeline to the edge registry service associated with the Wallaroo instance.

# set the configuration
deployment_config = wallaroo.DeploymentConfigBuilder().replica_count(1).cpus(0.5).memory("900Mi").build()

# build the pipeline
pipeline = wl.build_pipeline("publish-example")
# add a model as a model step
pipeline.add_model_step(m2)
publish = pipeline.publish(deployment_config)
display(publish)

List Publishes

All publishes created from a pipeline are displayed with the wallaroo.pipeline.publishes method.

List Publishes Parameters

N/A

List Publishes Returns

A List of the following fields:

List Publishes Example

The following shows a list of publishes from a pipeline.

pipeline.publishes()

Replace Publish

Publishes are replaced either from a pipeline version, or an entirely new pipeline via the wallaroo.pipeline.Pipeline.publish(replace=List[wallaroo.pipeline_publish.PipelinePublish]) method. When replaced, the original publish’s edge locations are transferred to the pipeline associated with the new publish.

When a publish is replaced by a pipeline version, the pipeline logs will continue to include the edge locations with any new changes to the schema, based on the new pipeline steps.

When a publish is replaced by a entirely different pipeline, the previous pipeline logs are associated with the previous pipeline. New logs are associated with the new pipeline.

When a publish is replaced, the edge locations can be redeployed with the new publish information, which includes the new pipeline steps, models, and other settings.

Replace Publish Considerations

When a pipeline is publish, the following considerations must be taken.

• Model Drift Observability updates: Assays created for the specific pipeline and model name will cease to generate new analyses if the pipeline steps change the model names or field outputs that were previously set. In these instances, the assay should be paused and a new assay generated with the updated model name and fields. For more details see Model Drift Detection with Model Insights.
• Pipeline Log Schema Changes: The pipeline log schema will change based on the input and output parameters with the new pipeline steps. For more details see Wallaroo SDK Essentials Guide: Pipeline Log Management.

Replace Publish Parameters

The wallaroo.pipeline.Pipeline.publish method takes the following parameters. The containerized pipeline will be pushed to the Edge registry service with the model, pipeline configurations, and other artifacts needed to deploy the pipeline.

Replace Publish Returns

The following parameters are returned when a pipeline is published. The following shows the PipelinePublish object details returned.

When a publish is displayed using IPython.display, the following fields are generated. Some are generated from the fields above to make deployment easier for end users.

Replace Publish Example

The following shows a pipeline with publishes and edge locations. The full demonstration is available at In-Line Model Updates at the Edge Tutorial.

display(mainpipeline)

display(mainpipeline.publishes())

display(mainpipeline.list_edges())

Replace Publish from Pipeline Version

For the following, the pipeline model steps are replaced, and the new version is published. The previous publish set to the variable pub is replaced by the new publish, which is stored in the variable new_pub.

housing_model_challenger01 = (wl.upload_model("xgb-house-price-estimator",
                                        './models/xgb_model.onnx',
                                        framework=Framework.ONNX)
                                        .configure(tensor_fields=["tensor"])
                        )

mainpipeline.clear()

mainpipeline.add_model_step(housing_model_challenger01)

new_pub = mainpipeline.publish(replaces=[pub])
new_pub

Waiting for pipeline publish... It may take up to 600 sec.
Pipeline is publishing...... Published.

docker run -v $PERSISTENT_VOLUME_DIR:/persist \
    -e OCI_USERNAME=$OCI_USERNAME \
    -e OCI_PASSWORD=$OCI_PASSWORD \
    -e PIPELINE_URL=ghcr.io/wallaroolabs/doc-samples/pipelines/edge-inline-replacement-demo:446aeed9-2d52-47ae-9e5c-f2a05ef0d4d6\
    -e EDGE_BUNDLE=ZXhwb3J0IEJVTkRMRV9WRVJTSU9OPTEKZXhwb3J0IENPTkZJR19DUFVTPTQKZXhwb3J0IEVER0VfTkFNRT1ob3VzZXByaWNlLWVkZ2UtaW5saW5lLXJlcGxhY2VtZW50LWRlbW8KZXhwb3J0IE9QU0NFTlRFUl9IT1NUPWRvYy10ZXN0LmVkZ2Uud2FsbGFyb29jb21tdW5pdHkubmluamEKZXhwb3J0IFBJUEVMSU5FX1VSTD1naGNyLmlvL3dhbGxhcm9vbGFicy9kb2Mtc2FtcGxlcy9waXBlbGluZXMvZWRnZS1pbmxpbmUtcmVwbGFjZW1lbnQtZGVtbzo0NDZhZWVkOS0yZDUyLTQ3YWUtOWU1Yy1mMmEwNWVmMGQ0ZDYKZXhwb3J0IEpPSU5fVE9LRU49b21pdHRlZF9mb3JfcmVwbGFjZQpleHBvcnQgT0NJX1JFR0lTVFJZPWdoY3IuaW8= \
    ghcr.io/wallaroolabs/doc-samples/engines/proxy/wallaroo/ghcr.io/wallaroolabs/fitzroy-mini:v2024.1.0-main-4781

helm upgrade $HELM_INSTALL_NAME \
    oci://ghcr.io/wallaroolabs/doc-samples/charts/edge-inline-replacement-demo \
    --namespace $HELM_INSTALL_NAMESPACE \
    --version 0.0.1-446aeed9-2d52-47ae-9e5c-f2a05ef0d4d6 \
    --set ociRegistry.username=$OCI_USERNAME \
    --set ociRegistry.password=$OCI_PASSWORD \
    --set edgeBundle=ZXhwb3J0IEJVTkRMRV9WRVJTSU9OPTEKZXhwb3J0IENPTkZJR19DUFVTPTQKZXhwb3J0IEVER0VfTkFNRT1ob3VzZXByaWNlLWVkZ2UtaW5saW5lLXJlcGxhY2VtZW50LWRlbW8KZXhwb3J0IE9QU0NFTlRFUl9IT1NUPWRvYy10ZXN0LmVkZ2Uud2FsbGFyb29jb21tdW5pdHkubmluamEKZXhwb3J0IFBJUEVMSU5FX1VSTD1naGNyLmlvL3dhbGxhcm9vbGFicy9kb2Mtc2FtcGxlcy9waXBlbGluZXMvZWRnZS1pbmxpbmUtcmVwbGFjZW1lbnQtZGVtbzo0NDZhZWVkOS0yZDUyLTQ3YWUtOWU1Yy1mMmEwNWVmMGQ0ZDYKZXhwb3J0IEpPSU5fVE9LRU49b21pdHRlZF9mb3JfcmVwbGFjZQpleHBvcnQgT0NJX1JFR0lTVFJZPWdoY3IuaW8=

Note that in the Replaces section, updates are given for each edge location.

Replace Publish from New Pipeline

For this example, a new pipeline is created, The publish new_pub is then replaced by the publish from this new pipeline.

housing_model_challenger02 = (wl.upload_model("gbr-house-price-estimator",
                                        './models/gbr_model.onnx',
                                        framework=Framework.ONNX)
                                        .configure(tensor_fields=["tensor"])
                        )

new_pipeline = wl.build_pipeline("new-edge-inline-replacement")
# clear the steps if used before
new_pipeline.clear()

new_pipeline.add_model_step(housing_model_challenger02)
new_pipeline_pub = new_pipeline.publish(replaces=[new_pub])
new_pipeline_pub

Waiting for pipeline publish... It may take up to 600 sec.
Pipeline is publishing...... Published.

docker run -v $PERSISTENT_VOLUME_DIR:/persist \
    -e OCI_USERNAME=$OCI_USERNAME \
    -e OCI_PASSWORD=$OCI_PASSWORD \
    -e PIPELINE_URL=ghcr.io/wallaroolabs/doc-samples/pipelines/new-edge-inline-replacement:00921571-3db7-4bf9-94dc-377aab558475\
    -e EDGE_BUNDLE=ZXhwb3J0IEJVTkRMRV9WRVJTSU9OPTEKZXhwb3J0IENPTkZJR19DUFVTPTQKZXhwb3J0IEVER0VfTkFNRT1ob3VzZXByaWNlLWVkZ2UtaW5saW5lLXJlcGxhY2VtZW50LWRlbW8KZXhwb3J0IE9QU0NFTlRFUl9IT1NUPWRvYy10ZXN0LmVkZ2Uud2FsbGFyb29jb21tdW5pdHkubmluamEKZXhwb3J0IFBJUEVMSU5FX1VSTD1naGNyLmlvL3dhbGxhcm9vbGFicy9kb2Mtc2FtcGxlcy9waXBlbGluZXMvbmV3LWVkZ2UtaW5saW5lLXJlcGxhY2VtZW50OjAwOTIxNTcxLTNkYjctNGJmOS05NGRjLTM3N2FhYjU1ODQ3NQpleHBvcnQgSk9JTl9UT0tFTj1vbWl0dGVkX2Zvcl9yZXBsYWNlCmV4cG9ydCBPQ0lfUkVHSVNUUlk9Z2hjci5pbw== \
    ghcr.io/wallaroolabs/doc-samples/engines/proxy/wallaroo/ghcr.io/wallaroolabs/fitzroy-mini:v2024.1.0-main-4781

helm upgrade $HELM_INSTALL_NAME \
    oci://ghcr.io/wallaroolabs/doc-samples/charts/new-edge-inline-replacement \
    --namespace $HELM_INSTALL_NAMESPACE \
    --version 0.0.1-00921571-3db7-4bf9-94dc-377aab558475 \
    --set ociRegistry.username=$OCI_USERNAME \
    --set ociRegistry.password=$OCI_PASSWORD \
    --set edgeBundle=ZXhwb3J0IEJVTkRMRV9WRVJTSU9OPTEKZXhwb3J0IENPTkZJR19DUFVTPTQKZXhwb3J0IEVER0VfTkFNRT1ob3VzZXByaWNlLWVkZ2UtaW5saW5lLXJlcGxhY2VtZW50LWRlbW8KZXhwb3J0IE9QU0NFTlRFUl9IT1NUPWRvYy10ZXN0LmVkZ2Uud2FsbGFyb29jb21tdW5pdHkubmluamEKZXhwb3J0IFBJUEVMSU5FX1VSTD1naGNyLmlvL3dhbGxhcm9vbGFicy9kb2Mtc2FtcGxlcy9waXBlbGluZXMvbmV3LWVkZ2UtaW5saW5lLXJlcGxhY2VtZW50OjAwOTIxNTcxLTNkYjctNGJmOS05NGRjLTM3N2FhYjU1ODQ3NQpleHBvcnQgSk9JTl9UT0tFTj1vbWl0dGVkX2Zvcl9yZXBsYWNlCmV4cG9ydCBPQ0lfUkVHSVNUUlk9Z2hjci5pbw==

With the edge location replacement complete with the new pipeline, we list the edges to the original pipeline and the new one to show the edge location is transferred to the new pipeline.

mainpipeline.list_edges()

(no pipelines)

new_pipeline.list_edges()

Edge Observability

Edge Observability allows edge deployments of Wallaroo Server to transmit inference results back to the Wallaroo Ops center and become part of the pipeline’s logs. This is valuable for data scientists and MLOps engineers to retrieve edge deployment logs for use in model observability, drift, and other use cases.

Before starting, the Edge Observability Service must be enabled in the Wallaroo Ops center. See the Edge Deployment Registry Guide for details on enabling the Wallaroo Edge Deployment service.

Wallaroo Server edge observability is enabled when a new edge location is added to the pipeline publish. Each location has its own EDGE_BUNDLE settings, a Base64 encoded set of instructions informing the edge deployed Wallaroo Server on how to communicate with Wallaroo Ops center.

Add Edge

Wallaroo Servers edge deployments are added to a Wallaroo pipeline’s publish with the wallaroo.pipeline_publish.add_edge(name: string, tags: List[string]) method. The name is the unique primary key for each edge added to the pipeline publish and must be unique.

Add Edge Parameters

wallaroo.pipeline_publish.add_edge(name: string, tags: List[string]) has the following parameters.

Add Edge Returns

This returns a Publish Edge with the following fields:

Add Edge Example

The following example demonstrates creating a publish from a pipeline, then adding a new edge to the publish.

# create publish
xgb_pub=xgboost_pipeline_version.publish(deploy_config)
display(xgb_pub)

Waiting for pipeline publish... It may take up to 600 sec.
Pipeline is Publishing...Published.

xgb_edge = xgb_pub.add_edge("xgb-ccfraud-edge-publish")
print(xgb_edge)

Remove Edge

Edges are removed with the wallaroo.pipeline_publish.remove_edge(name: string)

Remove Edge Parameters

wallaroo.pipeline_publish.remove_edge(name: string) has the following parameters.

Remove Edge Returns

Null

Remove Edge Example

This example will add two edges to a pipeline publish, list the edges for the pipeline, then remove one of the edges.

edge_01_name = f'edge-ccfraud-observability{random_suffix}'
edge01 = pub.add_edge(edge_01_name)

edge_02_name = f'edge-ccfraud-observability-02{random_suffix}'
edge02 = pub.add_edge(edge_02_name)

pipeline.list_edges()

sample = pub.remove_edge(edge_02_name)
display(sample)

List Edges

The method wallaroo.pipeline.list_edges() displays any edges added to a pipeline’s publishes.

List Edges Parameters

None

List Edges Returns

The following fields are returned from a List of edges.

List Edges Example

edge_01_name = f'edge-ccfraud-observability{random_suffix}'
edge01 = pub.add_edge(edge_01_name)

edge_02_name = f'edge-ccfraud-observability-02{random_suffix}'
edge02 = pub.add_edge(edge_02_name)

pipeline.list_edges()

Edge Bundle Token TTL

When an edge is added to a pipeline publish, the field docker_run_variables contains a JSON value for edge devices to connect to the Wallaroo Ops instance. The settings are stored in the key EDGE_BUNDLE as a base64 encoded value that include the following:

• BUNDLE_VERSION: The current version of the bundled Wallaroo pipeline.
• EDGE_NAME: The edge name as defined when created and added to the pipeline publish.
• JOIN_TOKEN_: The one time authentication token for authenticating to the Wallaroo Ops instance.
• OPSCENTER_HOST: The hostname of the Wallaroo Ops edge service. See Edge Deployment Registry Guide for full details on enabling pipeline publishing and edge observability to Wallaroo.
• PIPELINE_URL
• WORKSPACE_ID.

For example:

{'edgeBundle': 'ZXhwb3J0IEJVTkRMRV9WRVJTSU9OPTEKZXhwb3J0IEVER0VfTkFNRT14Z2ItY2NmcmF1ZC1lZGdlLXRlc3QKZXhwb3J0IEpPSU5fVE9LRU49MzE0OGFkYTUtMjg1YS00ZmNhLWIzYjgtYjUwYTQ4ZDc1MTFiCmV4cG9ydCBPUFNDRU5URVJfSE9TVD1kb2MtdGVzdC5lZGdlLndhbGxhcm9vY29tbXVuaXR5Lm5pbmphCmV4cG9ydCBQSVBFTElORV9VUkw9Z2hjci5pby93YWxsYXJvb2xhYnMvZG9jLXNhbXBsZXMvcGlwZWxpbmVzL2VkZ2UtcGlwZWxpbmU6ZjM4OGMxMDktOGQ1Ny00ZWQyLTk4MDYtYWExM2Y4NTQ1NzZiCmV4cG9ydCBXT1JLU1BBQ0VfSUQ9NQ=='}

base64 -D
ZXhwb3J0IEJVTkRMRV9WRVJTSU9OPTEKZXhwb3J0IEVER0VfTkFNRT14Z2ItY2NmcmF1ZC1lZGdlLXRlc3QKZXhwb3J0IEpPSU5fVE9LRU49MzE0OGFkYTUtMjg1YS00ZmNhLWIzYjgtYjUwYTQ4ZDc1MTFiCmV4cG9ydCBPUFNDRU5URVJfSE9TVD1kb2MtdGVzdC5lZGdlLndhbGxhcm9vY29tbXVuaXR5Lm5pbmphCmV4cG9ydCBQSVBFTElORV9VUkw9Z2hjci5pby93YWxsYXJvb2xhYnMvZG9jLXNhbXBsZXMvcGlwZWxpbmVzL2VkZ2UtcGlwZWxpbmU6ZjM4OGMxMDktOGQ1Ny00ZWQyLTk4MDYtYWExM2Y4NTQ1NzZiCmV4cG9ydCBXT1JLU1BBQ0VfSUQ9NQ==^D
export BUNDLE_VERSION=1
export EDGE_NAME=xgb-ccfraud-edge-test
export JOIN_TOKEN=3148ada5-285a-4fca-b3b8-b50a48d7511b
export OPSCENTER_HOST=doc-test.wallaroocommunity.ninja/edge
export PIPELINE_URL=ghcr.io/wallaroolabs/doc-samples/pipelines/edge-pipeline:f388c109-8d57-4ed2-9806-aa13f854576b
export WORKSPACE_ID=5

The JOIN_TOKEN is a one time access token. Once used, a JOIN_TOKEN expires. The authentication session data is stored in persistent volumes. Persistent volumes must be specified for docker and docker compose based deployments of Wallaroo pipelines; helm based deployments automatically provide persistent volumes to store authentication credentials.

The JOIN_TOKEN has the following time to live (TTL) parameters.

• Once created, the JOIN_TOKEN is valid for 24 hours. After it expires the edge will not be allowed to contact the OpsCenter the first time and a new edge bundle will have to be created.
• After an Edge joins to Wallaroo Ops for the first time with persistent storage, the edge must contact the Wallaroo Ops instance at least once every 7 days.
  • If this period is exceeded, the authentication credentials will expire and a new edge bundle must be created with a new and valid JOIN_TOKEN.

Wallaroo edges require unique names. To create a new edge bundle with the same name:

• Use the Remove Edge to remove the edge by name.
• Use Add Edge to add the edge with the same name. A new EDGE_BUNDLE is generated with a new JOIN_TOKEN.

DevOps - Pipeline Edge Deployment

Once a pipeline is deployed to the Edge Registry service, it can be deployed in environments such as Docker, Kubernetes, or similar container running services by a DevOps engineer.

Docker Deployment

First, the DevOps engineer must authenticate to the same OCI Registry service used for the Wallaroo Edge Deployment registry.

For more details, check with the documentation on your artifact service. The following are provided for the three major cloud services:

• Set up authentication for Docker
• Authenticate with an Azure container registry
• Authenticating Amazon ECR Repositories for Docker CLI with Credential Helper

For the deployment, the engine URL is specified with the following environmental variables:

• DEBUG (true|false): Whether to include debug output.

• OCI_REGISTRY: The URL of the registry service.

• CONFIG_CPUS: The number of CPUs to use. This applies to the inference engine only.

• The following options apply to the inference pipeline and the models assigned as pipeline steps.

  • gpus: Whether to allocate available gpus to the deployment. If no gpus are to be allocated, this options is not available. For more details on how to specify gpu resources based on the edge hardware configuration, see Docker Engine: Containers: Access an NVIDIA GPU For example, to allocate gpus to the inference pipeline:
    • --gpus all
  • cpus: The fractional number of cpus to apply. For example:
    • --cpus=1.25
    • --cpus=2.0
  • memory: The amount of ram to allocate in unit values of:
    • k: kilobyte
    • m: megabyte
    • g: gigabyte

  For example:

  • --memory=1536m
  • --memory=512k

• OCI_USERNAME: The edge registry username.

• OCI_PASSWORD: The edge registry password or token.

• PIPELINE_URL: The published pipeline URL.

• EDGE_BUNDLE (Optional): The base64 encoded edge token and other values to connect to the Wallaroo Ops instance. This is used for edge management and transmitting inference results for observability. IMPORTANT NOTE: The token for EDGE_BUNDLE is valid for one deployment. For subsequent deployments, generate a new edge location with its own EDGE_BUNDLE.

• LOCAL_INFERENCE_STORAGE (Optional): Sets amount of storage to allocate for the edge deployments inference log storage capacity. This is in the format {size as number}{unit value}. The values are similar to the Kubernetes memory resource units format. If used, must be used with PLATEAU_PAGE_SIZE. The accepted unit values are:

  • Ki (for KiloBytes)
  • Mi (for MegaBytes)
  • Gi (for GigaBytes)
  • Ti (for TeraBytes)

• PLATEAU_PAGE_SIZE (Optional): How many inference log rows to upload from the edge deployment at a time. Must be used with LOCAL_INFERENCE_STORAGE.

The following example shows deploying models in an edge environment with the following resources allocated:

• Wallaroo inference engine:
  • cpus: 1
• Inference Pipeline:
  • cpus: 1.25
  • memory: 1536m
  • gpus: true

docker run \
    -p $EDGE_PORT:8080 \
    -e OCI_USERNAME=$OCI_USERNAME \
    -e OCI_PASSWORD=$OCI_PASSWORD \
    -e PIPELINE_URL=sample-pipeline-url \
    -e CONFIG_CPUS=1.0 --gpus all --cpus=1.25 --memory=1536m \
    sample-engine-url

Docker Deployment Example

Using our sample environment, here’s sample deployment using Docker with a computer vision ML model, the same used in the Wallaroo Use Case Tutorials Computer Vision: Retail tutorials.

1. Login through docker to confirm access to the registry service. First, docker login. For example, logging into the artifact registry with the token stored in the variable tok:

   cat $tok | docker login -u _json_key_base64 --password-stdin https://sample-registry.com


2. Then deploy the Wallaroo published pipeline with an edge added to the pipeline publish through docker run.

   IMPORTANT NOTE: Edge deployments with Edge Observability enabled with the EDGE_BUNDLE option include an authentication token that only authenticates once. To store the token long term, include the persistent volume flag -v {path to storage} setting.

   Deployment with EDGE_BUNDLE for observability.

   docker run -p 8080:8080 \
   -v ./data:/persist \
   -e DEBUG=true \
   -e OCI_REGISTRY=$REGISTRYURL \
   -e EDGE_BUNDLE=ZXhwb3J0IEJVTkRMRV9WRVJTSU9OPTEKZXhwb3J0IEVER0VfTkFNRT1lZGdlLWNjZnJhdWQtb2JzZXJ2YWJpbGl0eXlhaWcKZXhwb3J0IEpPSU5fVE9LRU49MjZmYzFjYjgtMjUxMi00YmU3LTk0ZGUtNjQ2NGI1MGQ2MzhiCmV4cG9ydCBPUFNDRU5URVJfSE9TVD1kb2MtdGVzdC5lZGdlLndhbGxhcm9vY29tbXVuaXR5Lm5pbmphCmV4cG9ydCBQSVBFTElORV9VUkw9Z2hjci5pby93YWxsYXJvb2xhYnMvZG9jLXNhbXBsZXMvcGlwZWxpbmVzL2VkZ2Utb2JzZXJ2YWJpbGl0eS1waXBlbGluZTozYjQ5ZmJhOC05NGQ4LTRmY2EtYWVjYy1jNzUyNTdmZDE2YzYKZXhwb3J0IFdPUktTUEFDRV9JRD03 \
   -e CONFIG_CPUS=1 \
   -e OCI_USERNAME=$REGISTRYUSERNAME \
   -e OCI_PASSWORD=$REGISTRYPASSWORD \
   -e PIPELINE_URL=ghcr.io/wallaroolabs/doc-samples/pipelines/edge-observability-pipeline:3b49fba8-94d8-4fca-aecc-c75257fd16c6 \
   ghcr.io/wallaroolabs/doc-samples/engines/proxy/wallaroo/ghcr.io/wallaroolabs/standalone-mini:v2023.4.0-main-4079


   Connection to the Wallaroo Ops instance from edge deployment with EDGE_BUNDLE is verified with the long entry Node attestation was successful.

   Deployment without observability.

   docker run -p 8080:8080 \
   -e DEBUG=true \
   -e OCI_REGISTRY=$REGISTRYURL \
   -e CONFIG_CPUS=1 \
   -e OCI_USERNAME=$REGISTRYUSERNAME \
   -e OCI_PASSWORD=$REGISTRYPASSWORD \
   -e PIPELINE_URL=ghcr.io/wallaroolabs/doc-samples/pipelines/edge-observability-pipeline:3b49fba8-94d8-4fca-aecc-c75257fd16c6 \
   ghcr.io/wallaroolabs/doc-samples/engines/proxy/wallaroo/ghcr.io/wallaroolabs/standalo


Docker Compose Deployment

For users who prefer to use docker compose, the following sample compose.yaml file is used to launch the Wallaroo Edge pipeline. This is the same used in the Wallaroo Use Case Tutorials Computer Vision: Retail tutorials. The volumes tag is used to preserve the login session from the one-time token generated as part of the EDGE_BUNDLE.

EDGE_BUNDLE is only required when adding an edge to a Wallaroo publish for observability. The following is deployed without observability.

services:
  engine:
    image: {Your Engine URL}
    ports:
      - 8080:8080
    environment:
      PIPELINE_URL: {Your Pipeline URL}
      OCI_REGISTRY: {Your Edge Registry URL}
      OCI_USERNAME:  {Your Registry Username}
      OCI_PASSWORD: {Your Token or Password}
      CONFIG_CPUS: 4

The procedure is:

1. Login through docker to confirm access to the registry service. First, docker login. For example, logging into the artifact registry with the token stored in the variable tok to the registry us-west1-docker.pkg.dev:

   cat $tok | docker login -u _json_key_base64 --password-stdin https://sample-registry.com


2. Set up the compose.yaml file.

   IMPORTANT NOTE: Edge deployments with Edge Observability enabled with the EDGE_BUNDLE option include an authentication token that only authenticates once. To store the token long term, include the persistent volume with the volumes: tag.

   services:
   engine:
       image: sample-registry.com/engine:v2023.3.0-main-3707
       ports:
           - 8080:8080
       volumes:
           - ./data:/persist
   environment:
       PIPELINE_URL: sample-registry.com/pipelines/edge-cv-retail:bf70eaf7-8c11-4b46-b751-916a43b1a555
       EDGE_BUNDLE: ZXhwb3J0IEJVTkRMRV9WRVJTSU9OPTEKZXhwb3J0IEVER0VfTkFNRT1lZGdlLWNjZnJhdWQtb2JzZXJ2YWJpbGl0eXlhaWcKZXhwb3J0IEpPSU5fVE9LRU49MjZmYzFjYjgtMjUxMi00YmU3LTk0ZGUtNjQ2NGI1MGQ2MzhiCmV4cG9ydCBPUFNDRU5URVJfSE9TVD1kb2MtdGVzdC5lZGdlLndhbGxhcm9vY29tbXVuaXR5Lm5pbmphCmV4cG9ydCBQSVBFTElORV9VUkw9Z2hjci5pby93YWxsYXJvb2xhYnMvZG9jLXNhbXBsZXMvcGlwZWxpbmVzL2VkZ2Utb2JzZXJ2YWJpbGl0eS1waXBlbGluZTozYjQ5ZmJhOC05NGQ4LTRmY2EtYWVjYy1jNzUyNTdmZDE2YzYKZXhwb3J0IFdPUktTUEFDRV9JRD03
       OCI_REGISTRY: sample-registry.com
       OCI_USERNAME:  _json_key_base64
       OCI_PASSWORD: abc123
       CONFIG_CPUS: 4


3. Then deploy with docker compose up.

Docker Compose Deployment Example

The deployment and undeployment is then just a simple docker compose up and docker compose down. The following shows an example of deploying the Wallaroo edge pipeline using docker compose.

docker compose up
[+] Running 1/1
 ✔ Container cv_data-engine-1  Recreated                                                                                                                                                                 0.5s
Attaching to cv_data-engine-1
cv_data-engine-1  | Wallaroo Engine - Standalone mode
cv_data-engine-1  | Login Succeeded
cv_data-engine-1  | Fetching manifest and config for pipeline: sample-registry.com/pipelines/edge-cv-retail:bf70eaf7-8c11-4b46-b751-916a43b1a555
cv_data-engine-1  | Fetching model layers
cv_data-engine-1  | digest: sha256:c6c8869645962e7711132a7e17aced2ac0f60dcdc2c7faa79b2de73847a87984
cv_data-engine-1  |   filename: c6c8869645962e7711132a7e17aced2ac0f60dcdc2c7faa79b2de73847a87984
cv_data-engine-1  |   name: resnet-50
cv_data-engine-1  |   type: model
cv_data-engine-1  |   runtime: onnx
cv_data-engine-1  |   version: 693e19b5-0dc7-4afb-9922-e3f7feefe66d
cv_data-engine-1  |
cv_data-engine-1  | Fetched
cv_data-engine-1  | Starting engine
cv_data-engine-1  | Looking for preexisting `yaml` files in //modelconfigs
cv_data-engine-1  | Looking for preexisting `yaml` files in //pipelines

Helm Deployment

Published pipelines can be deployed through the use of helm charts.

Helm deployments take up to two steps - the first step is in retrieving the required values.yaml and making updates to override.

IMPORTANT NOTE: Edge deployments with Edge Observability enabled with the EDGE_BUNDLE option include an authentication token that only authenticates once. Helm chart installations automatically add a persistent volume during deployment to store the authentication session data for future deployments.

1. Login to the registry service with helm registry login. For example, if the token is stored in the variable tok:

   helm registry login sample-registry.com --username _json_key_base64 --password $tok


2. Pull the helm charts from the published pipeline. The two fields are the Helm Chart URL and the Helm Chart version to specify the OCI . This typically takes the format of:

   helm pull oci://{published.helm_chart_url} --version {published.helm_chart_version}


3. Extract the tgz file and copy the values.yaml and copy the values used to edit engine allocations, etc. The following are required for the deployment to run:

   ociRegistry:
       registry: {your registry service}
       username:  {registry username here}
       password: {registry token here}


   For Wallaroo Server deployments with edge location set, the values include edgeBundle as generated when the edge was added to the pipeline publish.

   ociRegistry:
       registry: {your registry service}
       username:  {registry username here}
       password: {registry token here}
   edgeBundle: abcdefg


Store this into another file, suc as local-values.yaml.

1. Create the namespace to deploy the pipeline to. For example, the namespace wallaroo-edge-pipeline would be:

   kubectl create -n wallaroo-edge-pipeline


2. Deploy the helm installation with helm install through one of the following options:

   1. Specify the tgz file that was downloaded and the local values file. For example:

      helm install --namespace {namespace} --values {local values file} {helm install name} {tgz path} --timeout 10m


   2. Specify the expended directory from the downloaded tgz file.

      helm install --namespace {namespace} --values {local values file} {helm install name} {helm directory path} --timeout 10m


   3. Specify the Helm Pipeline Helm Chart and the Pipeline Helm Version.

      helm install --namespace {namespace} --values {local values file} {helm install name} oci://{published.helm_chart_url} --version {published.helm_chart_version} --timeout 10m


3. Once deployed, the DevOps engineer will have to forward the appropriate ports to the svc/engine-svc service in the specific pipeline. For example, using kubectl port-forward to the namespace ccfraud that would be:

   kubectl port-forward svc/engine-svc -n ccfraud01 8080 --address 0.0.0.0`
