Edge Model Drift Detection with Model Insights via the Wallaroo Dashboard

Model Drift Detection with Model Insights via the Wallaroo Dashboard allows organizations to create assays that monitor inference requests and results against an established baseline.

The following focuses on model drift detection for model deployment on edge locations. For full details on managing assays and model drift detection through the Wallaroo Dashboard, see Model Drift Detection with Model Insights.

Prerequisites

To monitor inference requests and results on edge locations, the following prerequisites must be met:

• Edge Observability Enabled: Edge observability must be enabled in the Wallaroo Ops instance.
• Deployed Edge Locations: Edge locations are added to a published pipeline and deployed on edge devices. For full details, see Wallaroo SDK Essentials Guide: Pipeline Edge Publication.

Access the Model Insights Page

Assays created through the Wallaroo Dashboard are accessed through the Pipeline Dashboard through the following process.

1. Log into the Wallaroo Dashboard.
2. Select the workspace containing the pipeline with the models being monitored from the Change Current Workspace and Workspace Management drop down.
3. Select View Pipelines.
4. Select the pipeline containing the models being monitored.
5. Select Insights.

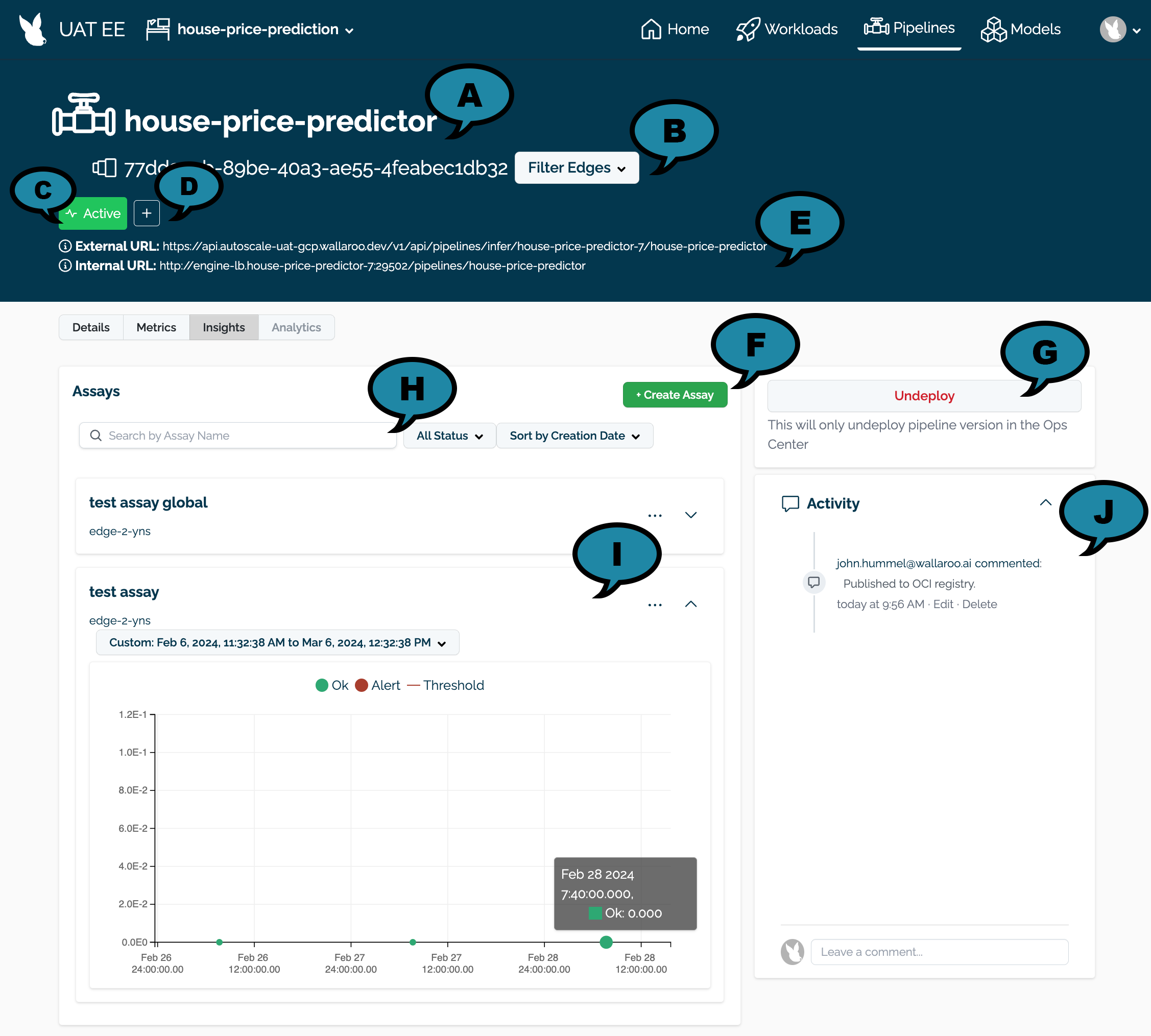

The Wallaroo Assay Dashboard contains the following elements. For more details of each configuration type, see the Model Insights and Assays Introduction.

• Pipeline Name and Identifier (A): The pipeline’s assigned name and unique identifier in UUID format.

• Filter Edges (B): By default, all locations are displayed. Filter Edges provides a list of available edge deployments are displayed. Selecting one or more filters from the list limits the available metrics and logs displayed to only the selected locations.



• Status (C): The status of the pipeline. The status only applies to the pipeline’s status in the Wallaroo Ops instance.. Options are:

  • Active: The pipeline is deployed.
  • Inactive: The pipeline is not deployed.

• Tags (D): Any tags applied to the pipeline.

• Inference Urls (E): The internal and external inference URLs for the deployed pipeline in the Wallaroo Ops instance.

• + Create Assay (F): Create a new assay.

• Deploy/Undeploy the Pipeline (G): Deploy an inactive pipeline, or deploy an active pipeline in the Wallaroo Ops instance.

• Filter Assays (H): Filter the assays by Name or Status, and Sort.

  • Status filters are:
    • All Status: All statuses.
    • Active: Active assays.
    • Paused: Assays that are paused.
    • Drift Detected: Assays where model drift is detected.
  • Sort filters are:
    • Creation Date
    • Last Assay Run

• Assay Details View (I): A chart of the assay analyses. This is filtered by the selected dates and time ranges.

• Activity (J): Comments left by users.

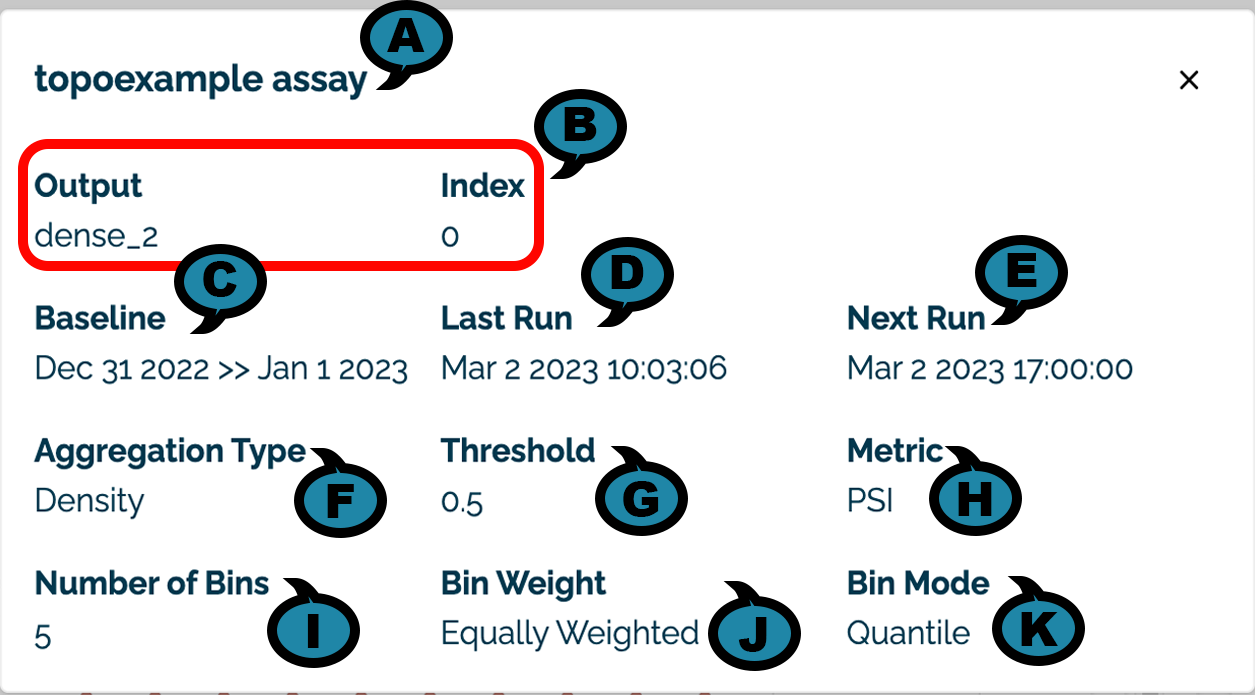

Assay Details View

The following details are visible by selecting the Assay View Details icon:

• (A) Assay Name: The name of the assay displayed.
• (B) Input / Output: The input or output and the index of the element being monitored.
• (C) Baseline: The time period used to generate the baseline. For baselines generated from a file, the baseline displayed Uploaded File.
• (D) Last Run: The date and time the assay was last run.
• (E) Next Run: The future date and time the assay will be run again. NOTE: If the assay is paused, then it will not run at the scheduled time. When unpaused, the date will be updated to the next date and time that the assay will be run.
• (F) Aggregation Type: The aggregation type used with the assay.
• (G) Threshold: The threshold value used for the assay.
• (H) Metric: The metric type used for the assay.
• (I) Number of Bins: The number of bins used for the assay.
• (J) Bin Weight: The weight applied to each bin.
• (K) Bin Mode: The type of bin node applied to each bin.

View Assay Alert Details

To view details on an assay alert:

1. Select the data with available alert data.
2. Mouse hover of a specific Assay Event Alert to view the data and time of the event and the alert value.
3. Select the Assay Event Alert to view the Baseline and Window details of the alert including the left_outlier and right_outlier.

Hover over a bar chart graph to view additional details.

1. Select the ⊗ symbol to exit the Assay Event Alert details and return to the Assay View.

Filter By Locations

Edge deployments are filtered with the Filter Edges (B) option.

By default, all locations are displayed. Filter Edges provides a list of available edge deployments are displayed. Selecting one or more filters from the list limits the available metrics and logs displayed to only the selected locations.

Build a Edge Location Filtered Assay Through the Pipeline Dashboard

To create a new assay through the Wallaroo Pipeline Dashboard:

1. Log into the Wallaroo Dashboard.
2. Select the workspace containing the pipeline with the models being monitored from the Change Current Workspace and Workspace Management drop down.
3. Select View Pipelines.
4. Select the pipeline containing the models being monitored.
5. Select Insights.
6. Select Filter Edges and select the edge locations to include. By default, assays include all locations. By specifying edges in the filter, this restricts the inference inputs used for the assay baseline and assay analysis results to the specified locations.
7. Select +Create Assay.

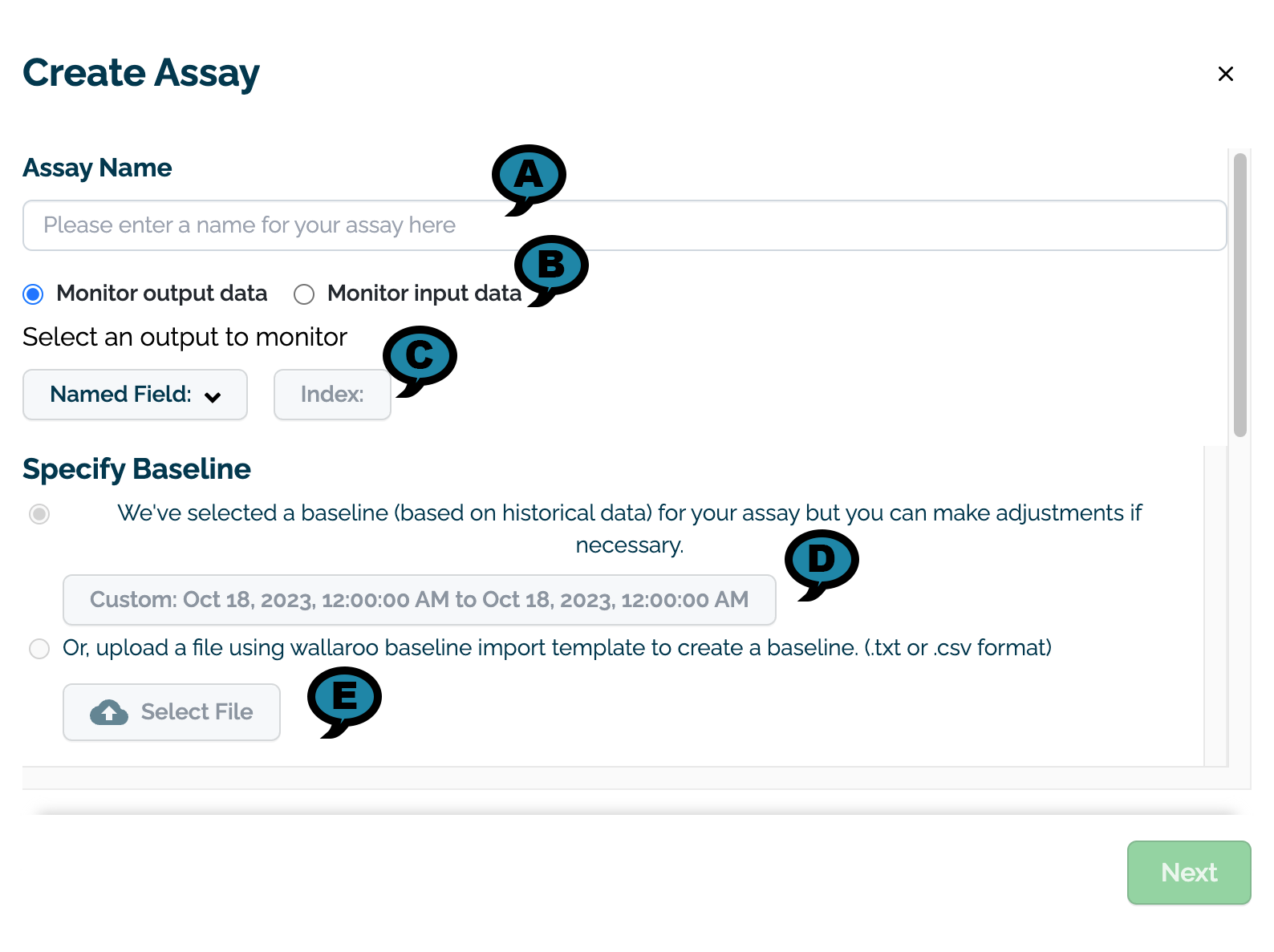

8. On the Create Assay module, enter the following:

   1. On the Assay Name section, enter the following:



   2. Assay Name (A): The name of the new assay.

   3. Monitor output data or Monitor input data (B): Select whether to monitor input or output data.

   4. Select an output/input to monitor (C): Select the input or output to monitor.

      1. Named Field: The name of the field to monitor.
      2. Index: The index of the monitored field.

   5. On the Specify Baseline section, select one of the following options:

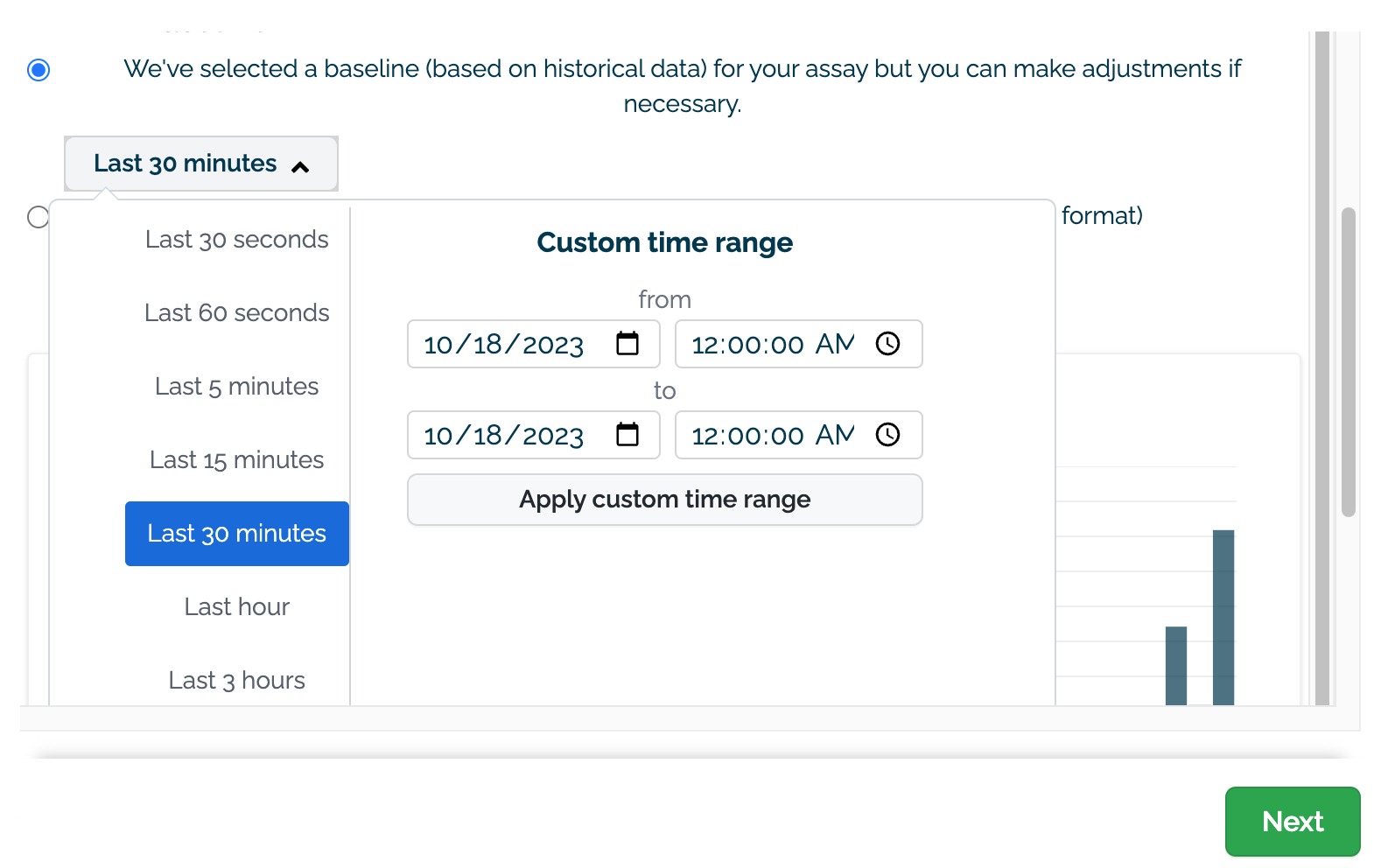

      1. (D) Select the data to use for the baseline. This can either be set with a preset recent time period (last 30 seconds, last 60 seconds, etc) or with a custom date range.

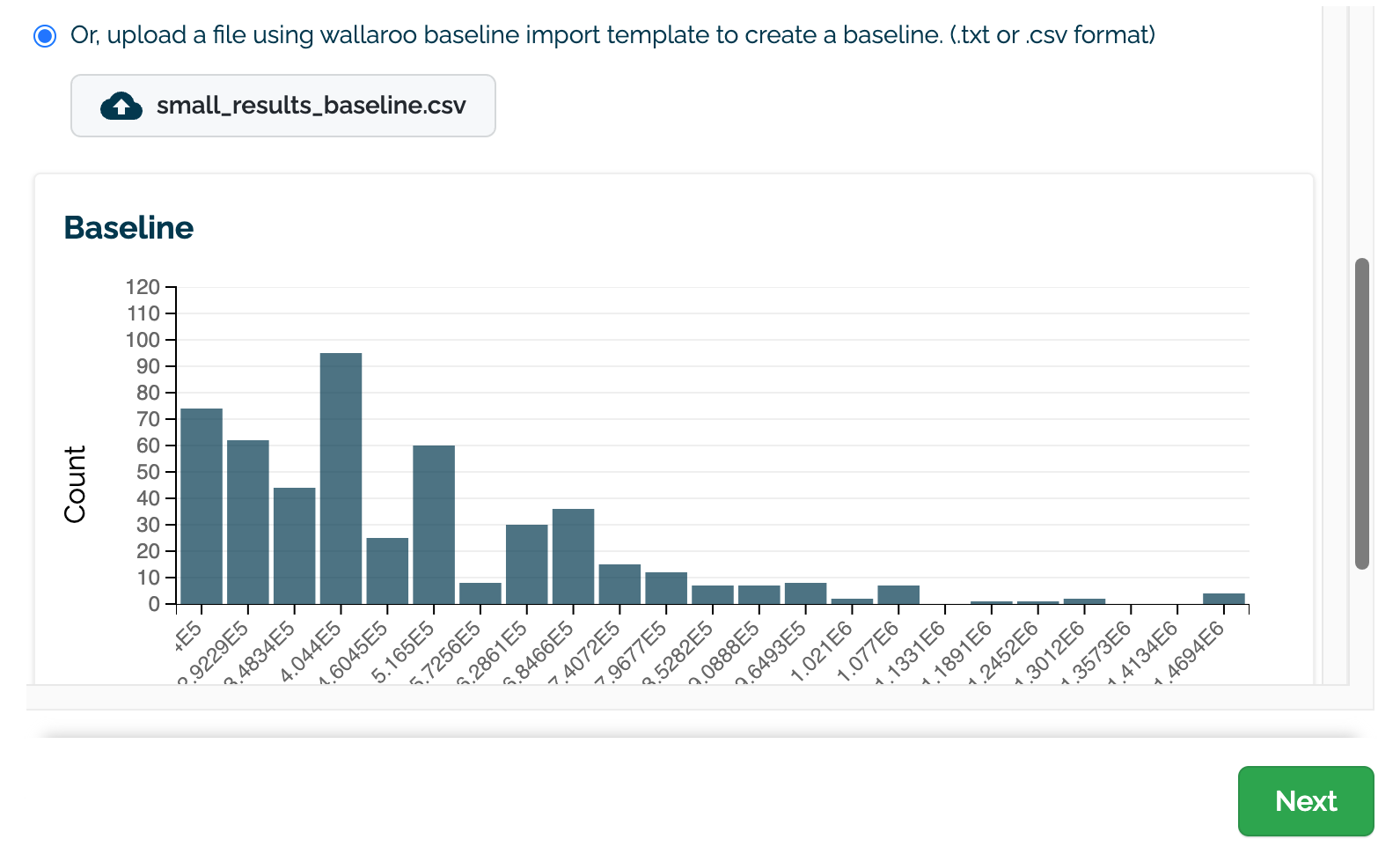

      1. (E) Upload an assay baseline file as either a CSV or TXT file. These assay baselines must be a list of numpy (aka float) values that are comma and newline separated, terminating at the last record with no additional commas or returns.



         For example:

         684577.200,
         921561.500,
         705013.440,
         725875.900,
         684577.200,
         379398.300,
         266405.600,
         256630.310


      Once selected, a preview graph of the baseline values will be displayed (C). Note that this may take a few seconds to generate.

   6. Select Next to continue.

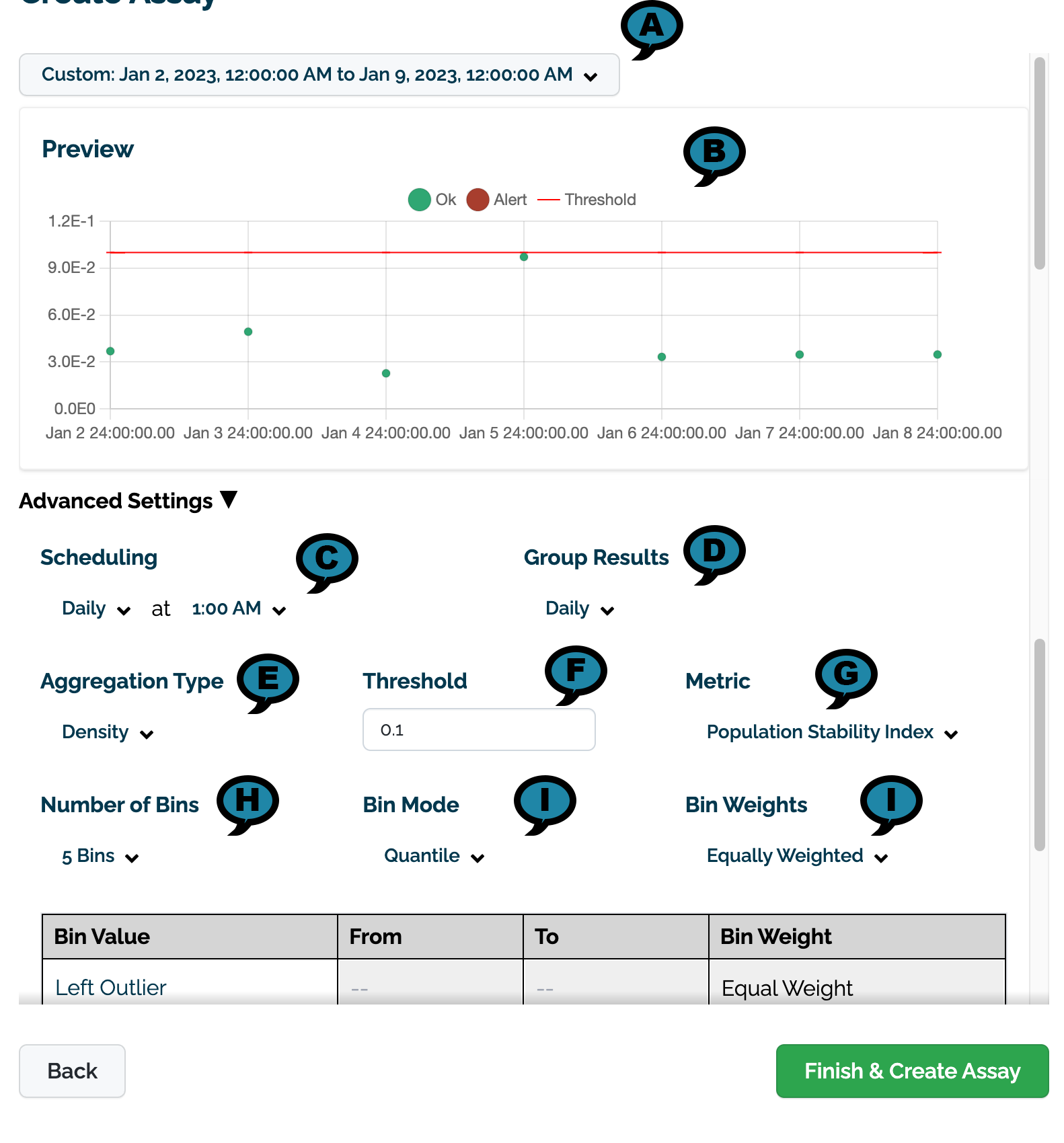

9. On the Settings Module:

   1. Set the date and time range to view values generated by the assay. This can either be set with a preset recent time period (last 30 seconds, last 60 seconds, etc) or with a custom date range.

      New assays are configured to run a new analysis for every 24 hours starting at the end of the baseline period. For information on how to adjust the scheduling period and other settings for the assay scheduling window, see the SDK section on how to Schedule Assay.

   2. Set the following Advanced Settings.



      1. (A) Preview Date Range: The date and times to for the preview chart.
      2. (B) Preview: A preview of the assay results will be displayed based on the settings below.
      3. (C) Scheduling: Set the Frequency (Daily, Every Minute, Hourly, Weekly, Default: Daily) and the Time (increments of one hour Default: 1:00 AM).
      4. (D) Group Results: How the results are grouped: Daily (Default), Every Minute, Weekly, or Monthly.
      5. (E) Aggregation Type: Density or Cumulative.
      6. (F) Threshold:
         1. Default: 0.1
      7. (G) Metric:
         1. Default: Population Stability Index
         2. Maximum Difference of Bins
         3. Sum of the Difference of Bins
      8. (H) Number of Bins: From 5 to 14. Default: 5
      9. (F) Bin Mode:
         1. Equally Spaced
         2. Default: Quantile
      10. (I) Bin Weights: The bin weights:
          1. Equally Weighted (Default)
          2. Custom: Users can assign their own bin weights as required.

   3. Review the preview chart to verify the settings are correct.

   4. Select Build to complete the process and build the new assay.

Once created, it may take a few minutes for the assay to complete compiling data.

Model Insights via the Wallaroo SDK

Assays generated through the Wallaroo SDK can be previewed, configured, and uploaded to the Wallaroo Ops instance. The following is a condensed version of this process. For full details see the Wallaroo SDK Essentials Guide: Assays Management guide.

Model drift detection with assays using the Wallaroo SDK follows this general process.

• Define the Baseline: From either historical inference data for a specific model in a pipeline, or from a pre-determine array of data, a baseline is formed.
• Assay Preview: Once the baseline is formed, we preview the assay and configure the different options until we have the the best method of detecting environment or model drift.
• Create Assay: With the previews and configuration complete, we upload the assay. The assay will perform an analysis on a regular scheduled based on the configuration.
• Get Assay Results: Retrieve the analyses and use them to detect model drift and possible sources.
• Pause/Resume Assay: Pause or restart an assay as needed.

Define the Baseline

Assay baselines are defined with the wallaroo.client.build_assay method. Through this process we define the baseline from either a range of dates or pre-generated values.

wallaroo.client.build_assay take the following parameters:

Note that model_name is an optional parameters when parameters are named. For example:

assay_builder_from_dates = wl.build_assay(assay_name="assays from date baseline",
                                          pipeline=mainpipeline,
                                          iopath="output variable 0",
                                          baseline_start=assay_baseline_start,
                                          baseline_end=assay_baseline_end)

or:

assay_builder_from_dates = wl.build_assay("assays from date baseline",
                                          mainpipeline,
                                          None, ## since we are using positional parameters, `None` must be included for the model parameter
                                          "output variable 0",
                                          assay_baseline_start,
                                          assay_baseline_end)

Baselines are created in one of two mutually exclusive methods:

• Date Range: The baseline_start and baseline_end retrieves the inference requests and results for the pipeline from the start and end period. This data is summarized and used to create the baseline. For our examples, we’re using the variables assay_baseline_start and assay_baseline_end to represent a range of dates, with assay_baseline_start being set before assay_baseline_end.
• Numpy Values: The baseline_data sets the baseline from a provided numpy array. This allows assay baselines to be created without first performing inferences in Wallaroo.

Iopath Format

The Input/Output Path (iopath) uses the following format.

• Input/Output: Whether the data is input for model, or is model’s output.
• Field: The specific field to monitor.
• Index: The field index to monitor.
  • For Assays V2 only, scalar values are represented by passing no index.

The following shows setting the iopath via the Wallaroo SDK for List values and scalars.

assay_builder_for_list = wl.build_assay(assay_name=assay_name,
                                          pipeline=mainpipeline,
                                          iopath="output variable 0",
                                          baseline_start=assay_baseline_start,
                                          baseline_end=assay_baseline_end)

assay_builder_for_scalar = wl.build_assay(assay_name=assay_name,
                                          pipeline=mainpipeline,
                                          iopath="output variable",
                                          baseline_start=assay_baseline_start,
                                          baseline_end=assay_baseline_end)

• List: Supported by Wallaroo Assays V1 and V2 and it determined by.
• Scalar:

0.70193326,
0.47008988,
0.7616768,
0.9431376,
0.50103927,
,
0.89329976,
,
,
,
0.58292973,
0.48995697,
,
0.9030761,
0.7702084,
0.9390605,
0.8298963,
0.67003745,
,

0.70193326,
0.47008988,
0.7616768,
0.9431376,
0.50103927,
"",
0.89329976,
"",
"",
"",
0.58292973,
0.48995697,
"",
0.9030761,
0.7702084,
0.9390605,
0.8298963,
0.67003745,
"",
""

0.70193326,
0.47008988,
0.7616768,
0.9431376,
0.50103927,
'',
0.89329976,
'',
'',
'',
0.58292973,
0.48995697,
'',
0.9030761,
0.7702084,
0.9390605,
0.8298963,
0.67003745,
'',
''

Define the Baseline by Location Example

This example shows the assay defined from the date ranges from the inferences performed earlier.

By default, all locations are included in the assay location filters. For our example we use wallaroo.assay_config.WindowBuilder.add_location_filter to specify location_01 for our baseline comparison results.

# edge locations

location_01 = "houseprice-edge-demonstration-01"
location_02 = "houseprice-edge-demonstration-02"

# Build the assay, based on the start and end of our baseline time,
# and tracking the output variable index 0

display(assay_baseline_start)
display(assay_baseline_end)

assay_baseline_from_dates = wl.build_assay(assay_name="assays from date baseline",
                                          pipeline=mainpipeline,
                                          iopath="output variable 0",
                                          baseline_start=assay_baseline_start,
                                          baseline_end=assay_baseline_end)

# set the location to the edge location
assay_baseline_from_dates.window_builder().add_location_filter([location_01])

# create the baseline from the dates
assay_baseline_run_from_dates = assay_baseline_from_dates.build().interactive_baseline_run()

datetime.datetime(2025, 7, 15, 20, 4, 47, 902345, tzinfo=datetime.timezone.utc)

datetime.datetime(2025, 7, 15, 20, 5, 53, 416806, tzinfo=datetime.timezone.utc)

Baseline DataFrame

The method wallaroo.assay_config.AssayBuilder.baseline_dataframe returns a DataFrame of the assay baseline generated from the provided parameters. This includes:

• metadata: The inference metadata with the model information, inference time, and other related factors.
• in data: Each input field assigned with the label in.{input field name}.
• out data: Each output field assigned with the label out.{output field name}

Note that for assays generated from numpy values, there is only the out data based on the supplied baseline data.

In the following example, the baseline DataFrame is retrieved. Note that in this example, the partition is set to houseprice-edge-demonstration-01, the location specified when we set the location when creating the baseline.

display(assay_baseline_from_dates.baseline_dataframe())

500 rows × 21 columns

Baseline Stats

The method wallaroo.assay.AssayAnalysis.baseline_stats() returns a pandas.core.frame.DataFrame of the baseline stats.

The baseline stats are displayed in the sample below.

assay_baseline_run_from_dates.baseline_stats()

Baseline Bins

The method wallaroo.assay.AssayAnalysis.baseline_bins a simple dataframe to with the edge/bin data for a baseline.

assay_baseline_run_from_dates.baseline_bins()

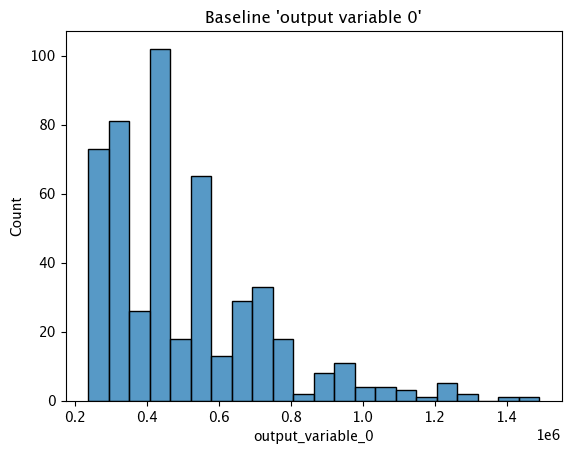

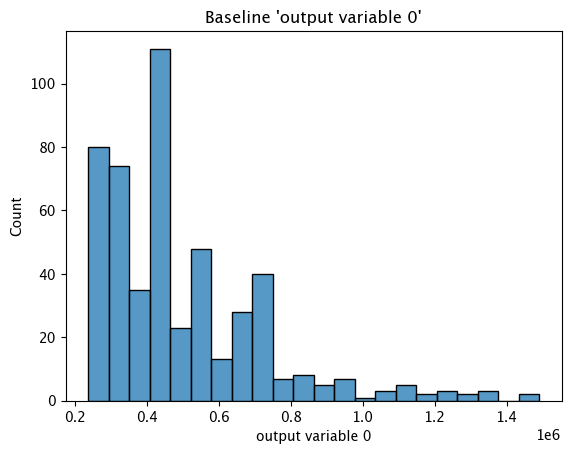

Baseline Histogram Chart

The method wallaroo.assay_config.AssayBuilder.baseline_histogram returns a histogram chart of the assay baseline generated from the provided parameters.

assay_baseline_from_dates.baseline_histogram()

Assay Preview

Now that the baseline is defined, we look at different configuration options and view how the assay baseline and results changes. Once we determine what gives us the best method of determining model drift, we can create the assay.

The following examples show different methods of previewing the assay, then how to configure the assay by collecting data from different locations.

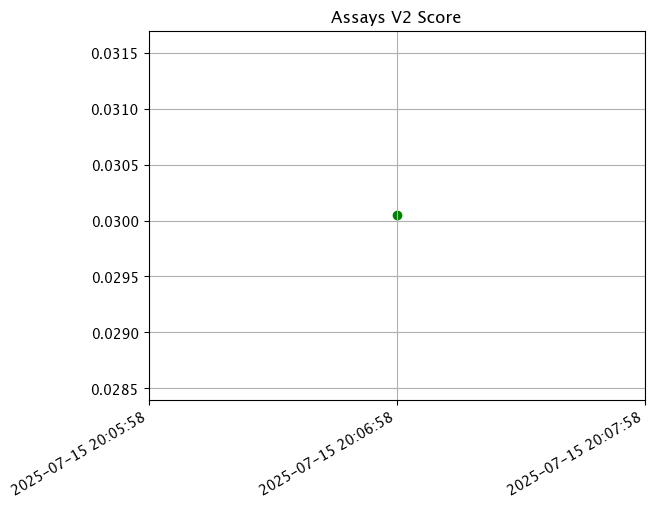

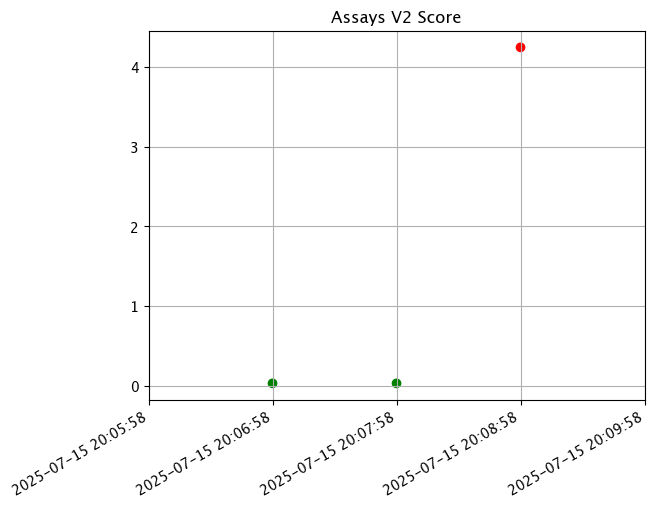

Analysis List Chart Scores

Analysis List scores show the assay scores for each assay result interval in one chart. Values that are outside of the alert threshold are colored red, while scores within the alert threshold are green.

Assay chart scores are displayed with the method wallaroo.assay.AssayAnalysisList.chart_scores(title: Optional[str] = None), with ability to display an optional title with the chart.

The following example shows retrieving the assay results and displaying the chart scores for each window interval for location_01

# Create the assay baseline
assay_baseline = wl.build_assay(assay_name="assays from date baseline",
                                          pipeline=mainpipeline,
                                          iopath="output variable 0",
                                          baseline_start=assay_baseline_start,
                                          baseline_end=assay_baseline_end)

# Set the assay parameters

# set the location to the edge location
assay_baseline.window_builder().add_location_filter([location_01])

# The end date to gather inference results
assay_baseline.add_run_until(datetime.datetime.now())

# Set the interval and window to one minute each, set the start date for gathering inference results
assay_baseline.window_builder().add_width(minutes=1).add_interval(minutes=1).add_start(assay_window_start)

# build the assay configuration
assay_config = assay_baseline.build()

# perform an interactive run and collect inference data
assay_results = assay_config.interactive_run()

# Preview the assay analyses
assay_results.chart_scores()

# Create the assay baseline
assay_baseline = wl.build_assay(assay_name="assays from date baseline",
                                          pipeline=mainpipeline,
                                          iopath="output variable 0",
                                          baseline_start=assay_baseline_start,
                                          baseline_end=assay_baseline_end)

# Set the assay parameters

# set the location to the edge location
assay_baseline.window_builder().add_location_filter([location_01, location_02])

# The end date to gather inference results
assay_baseline.add_run_until(datetime.datetime.now())

# Set the interval and window to one minute each, set the start date for gathering inference results
assay_baseline.window_builder().add_width(minutes=1).add_interval(minutes=1).add_start(assay_window_start)

# build the assay configuration
assay_config = assay_baseline.build()

# perform an interactive run and collect inference data
assay_results = assay_config.interactive_run()

# Preview the assay analyses
assay_results.chart_scores()

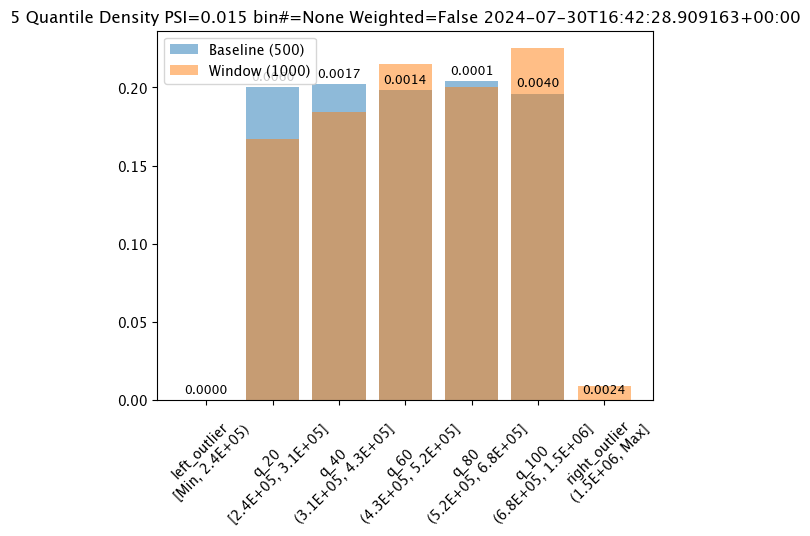

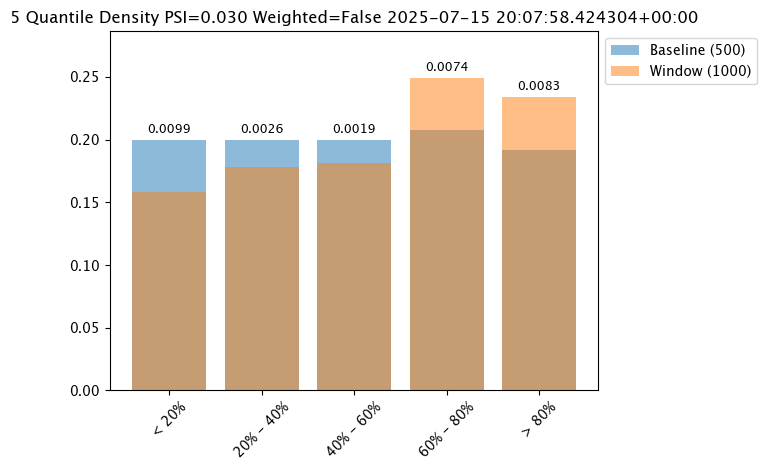

Analysis Chart

The method wallaroo.assay.AssayAnalysis.chart() displays a comparison between the baseline and an interval of inference data.

This is compared to the Chart Scores, which is a list of all of the inference data split into intervals, while the Analysis Chart shows the breakdown of one set of inference data against the baseline.

Score from the Analysis List Chart Scores and each element from the Analysis List DataFrame generates

The following fields are included.

# Create the assay baseline
assay_baseline = wl.build_assay(assay_name="assays from date baseline",
                                          pipeline=mainpipeline,
                                          iopath="output variable 0",
                                          baseline_start=assay_baseline_start,
                                          baseline_end=assay_baseline_end)

# Set the assay parameters

# set the location to the edge location
assay_baseline.window_builder().add_location_filter([location_01])

# The end date to gather inference results
assay_baseline.add_run_until(datetime.datetime.now())

# Set the interval and window to one minute each, set the start date for gathering inference results
assay_baseline.window_builder().add_width(minutes=1).add_interval(minutes=1).add_start(assay_window_start)

# build the assay configuration
assay_config = assay_baseline.build()

# perform an interactive run and collect inference data
assay_results = assay_config.interactive_run()

# Preview the assay analyses
assay_results[0].chart()

Analysis List DataFrame

wallaroo.assay.AssayAnalysisList.to_dataframe() returns a DataFrame showing the assay results for each window aka individual analysis. This DataFrame contains the following fields:

For this example, the assay analysis list DataFrame is listed.

From this tutorial, we should have 2 windows of dta to look at, each one minute apart.

# Create the assay baseline
assay_baseline = wl.build_assay(assay_name="assays from date baseline",
                                          pipeline=mainpipeline,
                                          iopath="output variable 0",
                                          baseline_start=assay_baseline_start,
                                          baseline_end=assay_baseline_end)

# Set the assay parameters

# set the location to the edge location
assay_baseline.window_builder().add_location_filter([location_01])

# The end date to gather inference results
assay_baseline.add_run_until(datetime.datetime.now())

# Set the interval and window to one minute each, set the start date for gathering inference results
assay_baseline.window_builder().add_width(minutes=1).add_interval(minutes=1).add_start(assay_window_start)

# build the assay configuration
assay_config = assay_baseline.build()

# perform an interactive run and collect inference data
assay_results = assay_config.interactive_run()

# Preview the assay analyses
assay_results.to_dataframe()

Configure Assays

Before creating the assay, configure the assay and continue to preview it until the best method for detecting drift is set.

Location Filter

This tutorial focuses on the assay configuration method wallaroo.assay_config.WindowBuilder.add_location_filter.

Location Filter Parameters

add_location_filter takes the following parameters.

Location Filter Example

By default, the locations parameter includes all locations as part of the pipeline. This is seen in the default where no location filter is set, and of the inference data is shown.

For our examples, we will show different locations and how the assay changes. For the first example, we set the location to location_01 which was used to create the baseline, and included inferences that were likely to not trigger a model drift detection alert.

# Create the assay baseline
assay_baseline = wl.build_assay(assay_name="assays from date baseline",
                                          pipeline=mainpipeline,
                                          iopath="output variable 0",
                                          baseline_start=assay_baseline_start,
                                          baseline_end=assay_baseline_end)

# Set the assay parameters

# set the location to the edge location
assay_baseline.window_builder().add_location_filter([location_01])

# The end date to gather inference results
assay_baseline.add_run_until(datetime.datetime.now())

# Set the interval and window to one minute each, set the start date for gathering inference results
assay_baseline.window_builder().add_width(minutes=1).add_interval(minutes=1).add_start(assay_window_start)

# build the assay configuration
assay_config = assay_baseline.build()

# perform an interactive run and collect inference data
assay_results = assay_config.interactive_run()

# Preview the assay analyses
assay_results.chart_scores()
assay_results.to_dataframe()

The next example includes location_01 and location_02. Since they were performed in distinct times, the model insights scores for each location is seen in the chart.

# Create the assay baseline
assay_baseline = wl.build_assay(assay_name="assays from date baseline",
                                          pipeline=mainpipeline,
                                          iopath="output variable 0",
                                          baseline_start=assay_baseline_start,
                                          baseline_end=assay_baseline_end)

# Set the assay parameters

# set the location to the edge location
assay_baseline.window_builder().add_location_filter([location_01, location_02])

# The end date to gather inference results
assay_baseline.add_run_until(datetime.datetime.now())

# Set the interval and window to one minute each, set the start date for gathering inference results
assay_baseline.window_builder().add_width(minutes=1).add_interval(minutes=1).add_start(assay_window_start)

# build the assay configuration
assay_config = assay_baseline.build()

# perform an interactive run and collect inference data
assay_results = assay_config.interactive_run()

# Preview the assay analyses
assay_results.chart_scores()
assay_results.to_dataframe()

Create Assay

With the assay previewed and configuration options determined, we officially create it by uploading it to the Wallaroo instance.

Once it is uploaded, the assay runs an analysis based on the window width, interval, and the other settings configured.

Assays are uploaded with the wallaroo.assay_config.upload() method. This uploads the assay into the Wallaroo database with the configurations applied and returns the assay id. Note that assay names must be unique across the Wallaroo instance; attempting to upload an assay with the same name as an existing one will return an error.

wallaroo.assay_config.upload() returns the assay id for the assay.

Typically we would just call wallaroo.assay_config.upload() after configuring the assay. For the example below, we will perform the complete configuration in one window to show all of the configuration steps at once before creating the assay, and narrow the locations to location_01 and location_02. By default, all locations associated with a pipeline are included in the assay results unless the add_location_filter method is applied to specify location(s).

# Create the assay baseline
assay_baseline = wl.build_assay(assay_name="assays from date baseline",
                                          pipeline=mainpipeline,
                                          iopath="output variable 0",
                                          baseline_start=assay_baseline_start,
                                          baseline_end=assay_baseline_end)

# Set the assay parameters

# set the location to the edge location
assay_baseline.window_builder().add_location_filter([location_01, location_02])

# The end date to gather inference results
assay_baseline.add_run_until(datetime.datetime.now())

# Set the interval and window to one minute each, set the start date for gathering inference results
assay_baseline.window_builder().add_width(minutes=1).add_interval(minutes=1).add_start(assay_window_start)

assay_id = assay_baseline.upload()

The assay is now visible through the Wallaroo UI by selecting the workspace, then the pipeline, then Insights. The following is an example of another assay in the Wallaroo Dashboard.

Get Assay Info

Assay information is retrieved with the wallaroo.client.get_assay_info() which takes the following parameters.

This returns the following:

display(wl.get_assay_info(assay_id))

Troubleshooting

Timeout Issues

If latency between the model’s edge deployment and the Wallaroo Ops Instance is higher than 0.5, the connection may time out and the inference results are not transmitted back to the Wallaroo Ops Center. To check the latency between the deployed model and the Wallaroo Ops Center, use the following command from the edge device:

curl -o /dev/null -s -w "%{time_total}\n" {Wallaroo Domain}:8443

For example, if the Wallaroo Domain of the Wallaroo Ops Center is example.wallaroo.ai, the command is:

curl -o /dev/null -s -w "%{time_total}\n" example.wallaroo.ai:8443
0.089316

For docker run deployments, increase the timeout with the option -e MTLS_CONNECTION_TIMEOUT=3.0. Increase the MTLS_CONNECTION_TIMEOUT further as needed for extreme low latency scenarios.

For example:

docker run -p 8080:8080 \
-v ./data:/persist \
-e DEBUG=true \
-e MTLS_CONNECTION_TIMEOUT=3.0 \
-e OCI_REGISTRY=$OCI_REGISTRY \
-e EDGE_BUNDLE=abc123 \
-e CONFIG_CPUS=1 \
-e OCI_USERNAME=$OCI_USERNAME \
-e OCI_PASSWORD=$OCI_PASSWORD \
-e PIPELINE_URL=example.registry.io/wallaroolabs/doc-samples/pipelines/edge-observability-pipeline:3b49fba8-94d8-4fca-aecc-c75257fd16c6 \
example.registry.io/wallaroolabs/doc-samples/engines/proxy/wallaroo/ghcr.io/wallaroolabs/standalone-mini:v2023.4.0-main-4079
